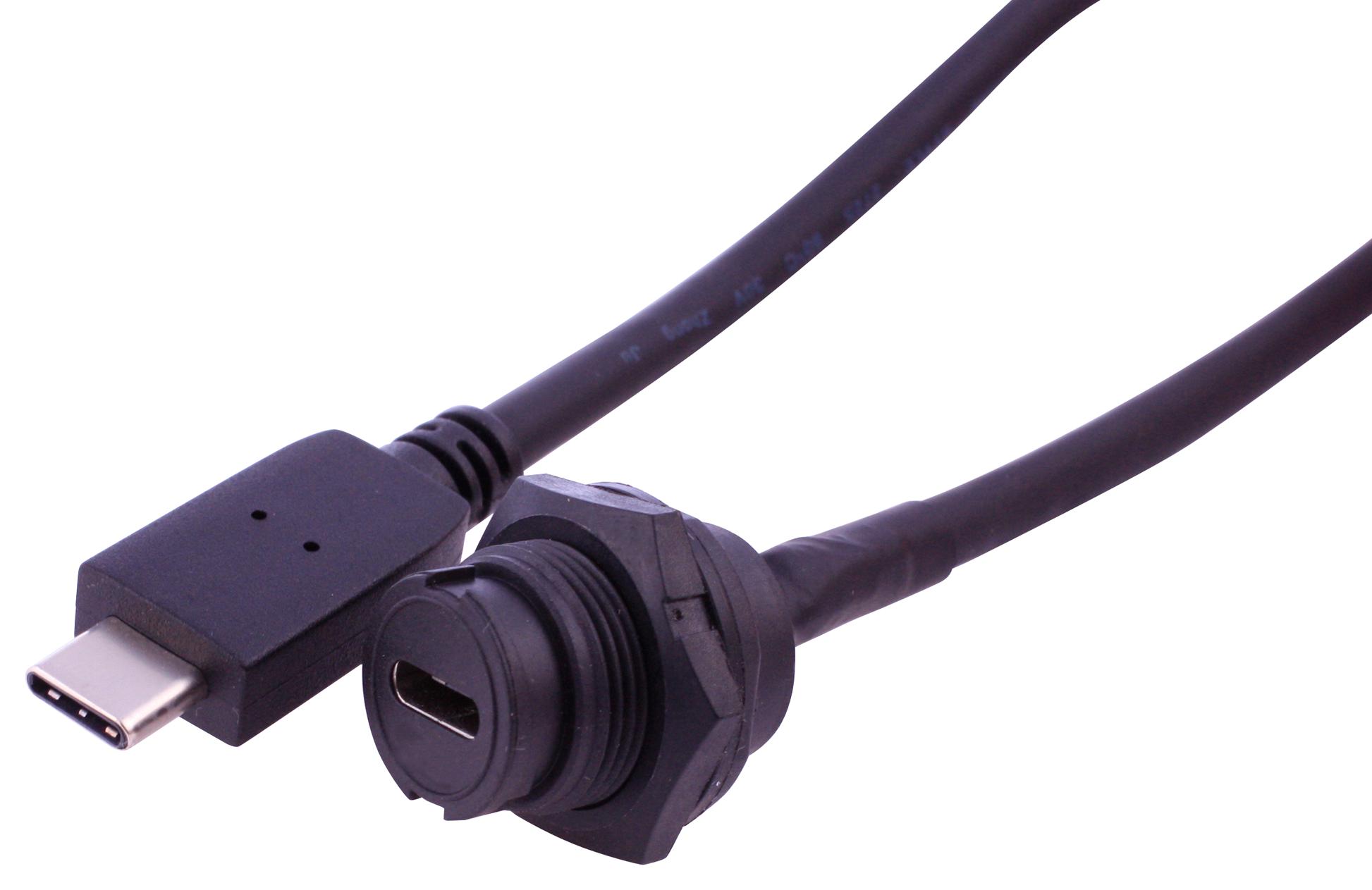

MULTICOMP PRO MP002445 USB Type C Sealed Connector
The MP USB sealed plastic connectors are robust, environmentally sealed panel-mount connectors designed for demanding applications. Rated IP67, they offer full rear potting for protection even when unmated or sealed. Available with DIP terminations or pre-wired with USB plug or socket, they feature a 16mm cut-out size, USB Type C 3.1 interface, bayonet mating mechanism, and gold-plated contacts. Suitable for use in audio, automation and process control, and communications and networking applications.
MULTICOMP PRO MP002445 USB Type C Sealed Connector Specifications:
- IP Rating: IP67
- Panel Thickness: 0.8mm to 3mm
- Recommend Torque: 9 to 10Kgf-cm
- Housing: Thermoplastic, Black
- Contacts: Copper Alloy, Au Plated 30u"
- Shell: Steel, Au Plated
- Cable: UL21572, OD 4.8mm, Black TPE Jacket
- Connector Type: USB Type C Male Solder, PCB without IC
- Pins: 30u" Gold Plated Over Nickel
- Insulator: Thermoplastic, 94V-0 Rated
- Overall Dimensions: Compatible with 16mm cut-out, panel mount
- Dust Cap Material: Thermoplastic, Black; Chain: Thermoplastic, Black
- Seal: Silicone, Black
- Assembly includes epoxy glue and heat shrink tubing with adhesive
- Suitable for audio, automation, process control, and networking
Buy the Multicomp Series USB Type C Sealed Connector: MP002445
Order the Multicomp Series USB Type C Sealed Connector MP002445 online today and enjoy top-tier environmental sealing, rugged construction, and precise electrical contacts suitable for industrial, automation, and communication applications. Engineered for durability with IP67 protection rating, bayonet mount, and gold-plated contacts, this connector ensures secure and reliable connections even in harsh conditions. Its compact 16mm cut-out size makes installation straightforward, providing a dependable solution for demanding projects requiring high environmental resistance and superior electrical performance.
Buy Multicomp USB Type C sealed connector MP002445 now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002445?
You can click on the BUY or RFQ button to purchase MP002445 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002445?
You can download the MP002445 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002445?
MULTICOMP PRO
