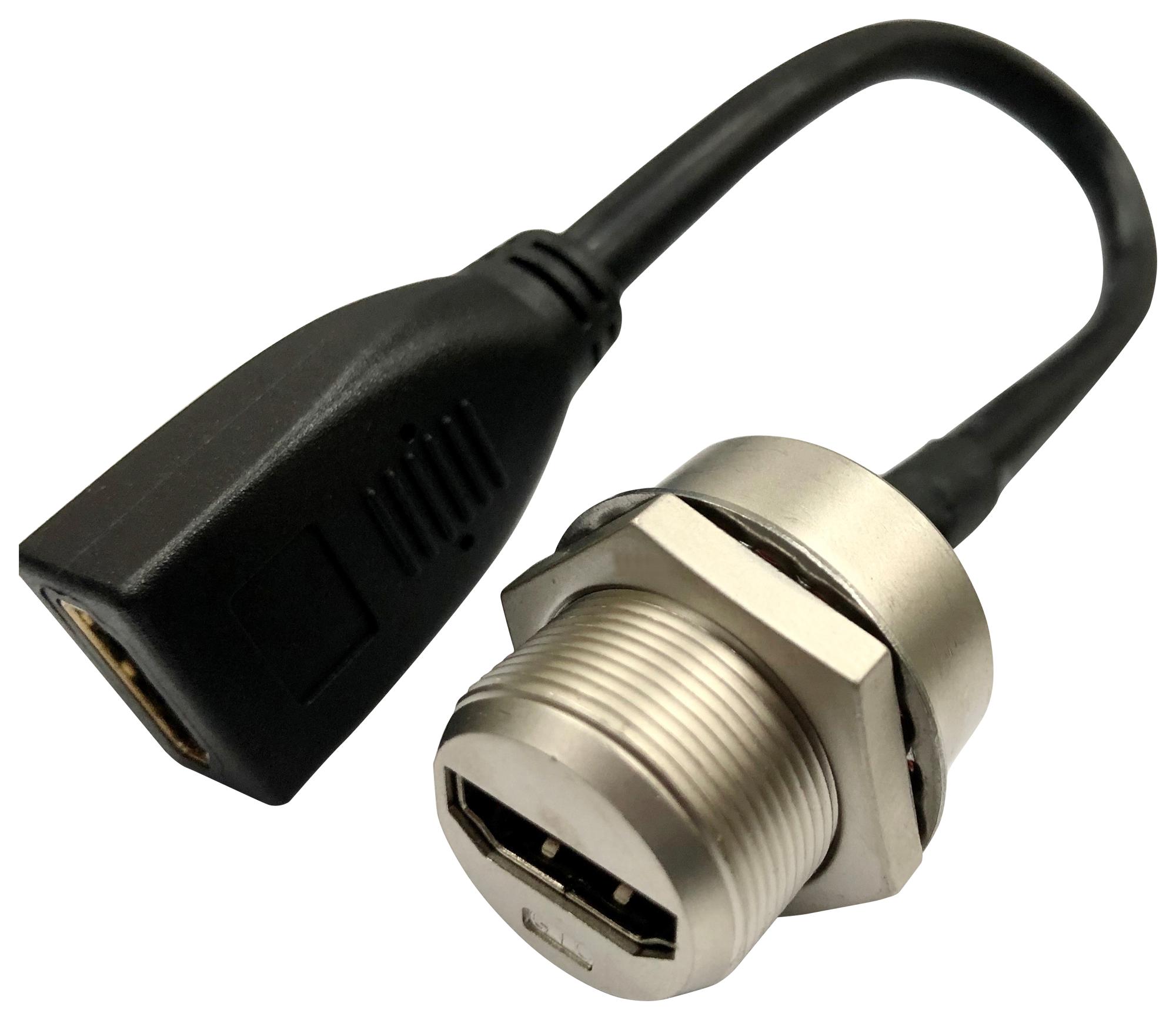

MULTICOMP PRO MP002469 HDMI Connector
The MP metal sealed HDMI connectors are rugged, environmentally sealed to IP68 standards, suitable for demanding environments. They feature a fully rear potted design for added security, with options including DIP terminations or pre-wired configurations with HDMI plugs or sockets. The connectors have a 20.75mm mounting hole, threaded mating, and gold-plated contacts for reliable connectivity. Designed for industrial automation, marine, medical, and control systems, these connectors provide robust protection against dust and water ingress, ensuring long-lasting, secure connections in challenging conditions.
MULTICOMP PRO MP002469 HDMI Connector Specifications:
- IP68 environmental sealing for dust and water ingress protection
- Material: Housing zinc alloy, Ni plated; Shell copper alloy, Ni plated; Contacts copper alloy, Au plated
- Dimensions: Mounting hole diameter 20.75mm, threaded for secure attachment
- Design: Fully rear potted, threaded mating design
- Configuration: Options include DIP termination, pre-wired with HDMI plugs or sockets
- Contacts: Gold-plated for reliable connectivity
- Operating environment: Suitable for industrial automation, marine, medical equipment, and process control
- Finish: Zinc and copper alloy components Ni plated for corrosion resistance
- Compatible with standard HDMI cables and systems
- Seals incorporate silicone O-rings for environmental sealing
- Cable compatibility: Uses UL20276 cable with OD=6.8mm or 7.3mm
- Rated for demanding, hazardous, or outdoor environments
Buy the Buy multicomp Metal Sealed HDMI Connector Part Number MP002469 Online
Order multicomp MP002469 HDMI sealed connector today to ensure robust, waterproof connectivity in industrial, marine, or medical environments. Designed for durability, this connector features an IP68 rating, gold-plated contacts for dependable signal transmission, and a rear potted design that enhances security and protection against dust and water ingress. With a threaded mounting system and compatibility with standard HDMI cables, it’s ideal for demanding applications requiring long-lasting and secure connections in harsh conditions. Purchase online now for factory-direct access to this high-performance component.
Get multicomp MP002469 today—engineered for demanding environments with rugged, IP68 environmental protection and reliable gold-plated contacts.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002469?
You can click on the BUY or RFQ button to purchase MP002469 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002469?
You can download the MP002469 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002469?
MULTICOMP PRO
