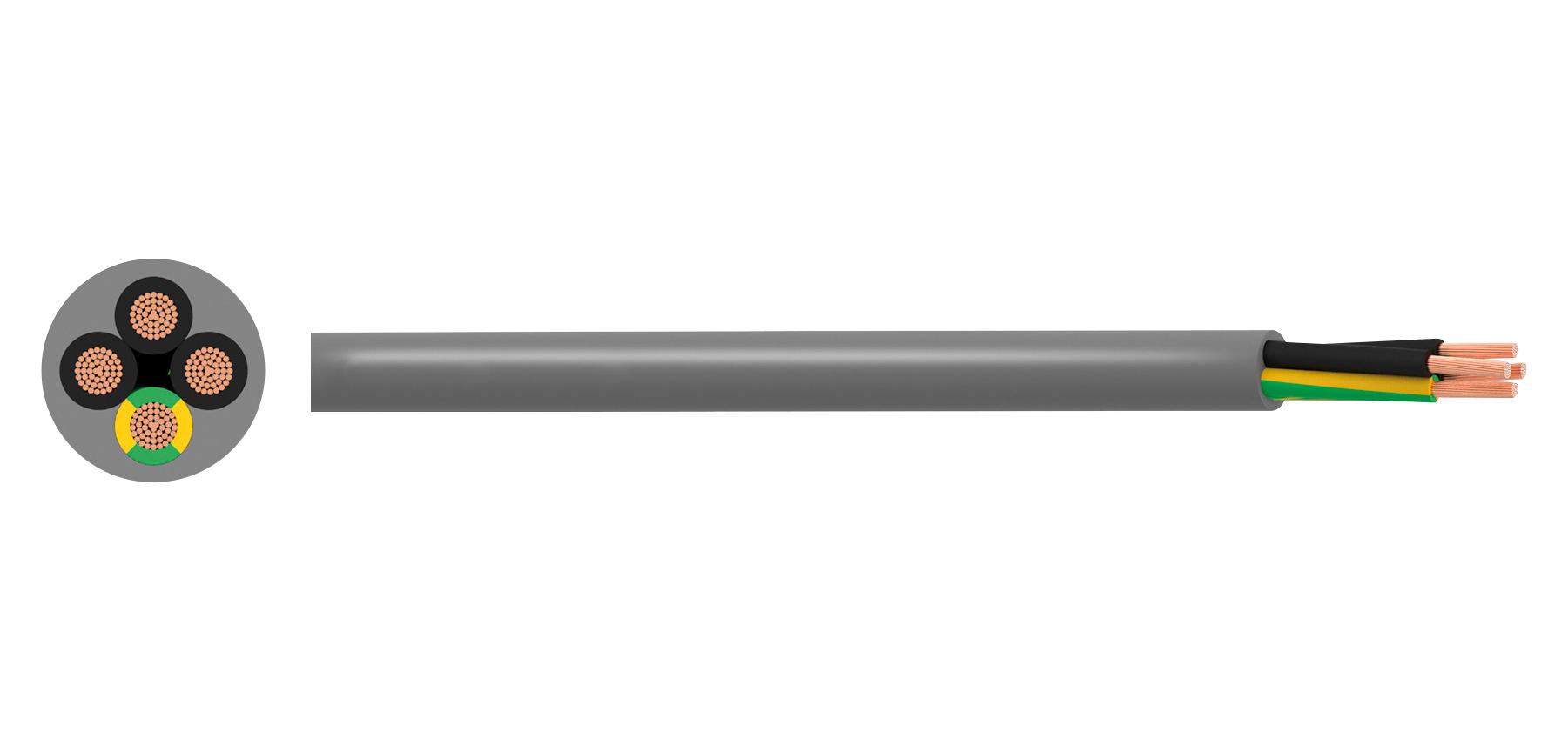

MULTICOMP-PRO PP001647 Multicore Control Cable
This multicore control cable made of flexible YY PVC (YSLY) is designed for instrumentation, control equipment, and machinery production lines. Suitable for flexible indoor applications without tensile load, it resists dry, wet, and ambient environments. RoHS compliant and tested under UKAS standards, it features copper conductors, PVC insulation, and sheaths, with various core and cross-sectional options. Capable of handling voltages up to 300/500V, it ensures safety and durability in control and instrumentation settings with flame retardant properties according to IEC standards.
MULTICOMP-PRO PP001647 Multicore Control Cable Specifications:
- Voltage Rating: 300/500V
- Test Voltage: 2 4kV
- Temperature Rating: Fixed -40°C to +80°C, Flexed -5°C to +70°C
- Minimum Bending Radius: Fixed 4 x overall diameter, Flexed 12.5 x overall diameter
- Standards: VDE 0207-363-3, IEC 60332-1-2 flame retardant
- Material: Copper conductors Class 5, PVC insulation and sheath
- Core Identification: Black with white number, green/yellow as earth
- Sheath Colour: Grey
- Cross-sectional Areas: Ranging from 0.5 mm² to 25 mm² per core
- Number of Cores: 2 to 18 depending on part number
- Reel Length: 50 meters standard
- Conductor Resistance at 20°C: 0.5 mm² 39Ω/km, 1 mm² 19.5Ω/km, 2.5 mm² 7.98Ω/km, 4 mm² 4.95Ω/km, 6 mm² 3.3Ω/km, 10 mm² 1.95Ω/km
Buy the Buy Multicomp Control Cable Part Number PP001647 Online
Enhance your control and instrumentation setups by purchasing the premium multicore control cable online. Made with flexible YY PVC insulation and PVC sheath, this cable offers excellent durability and resistance suitable for indoor applications. With various core counts and cross-sectional options, it meets all safety and compliance standards, including RoHS and flame retardant IEC standards. Fast, secure online ordering guarantees timely delivery for manufacturing, machinery, or control system installations, ensuring your projects operate smoothly and safely.
Order your Multicomp SeriesPP001647 flexible control cable today and ensure reliable performance for your instrumentation and control projects.
