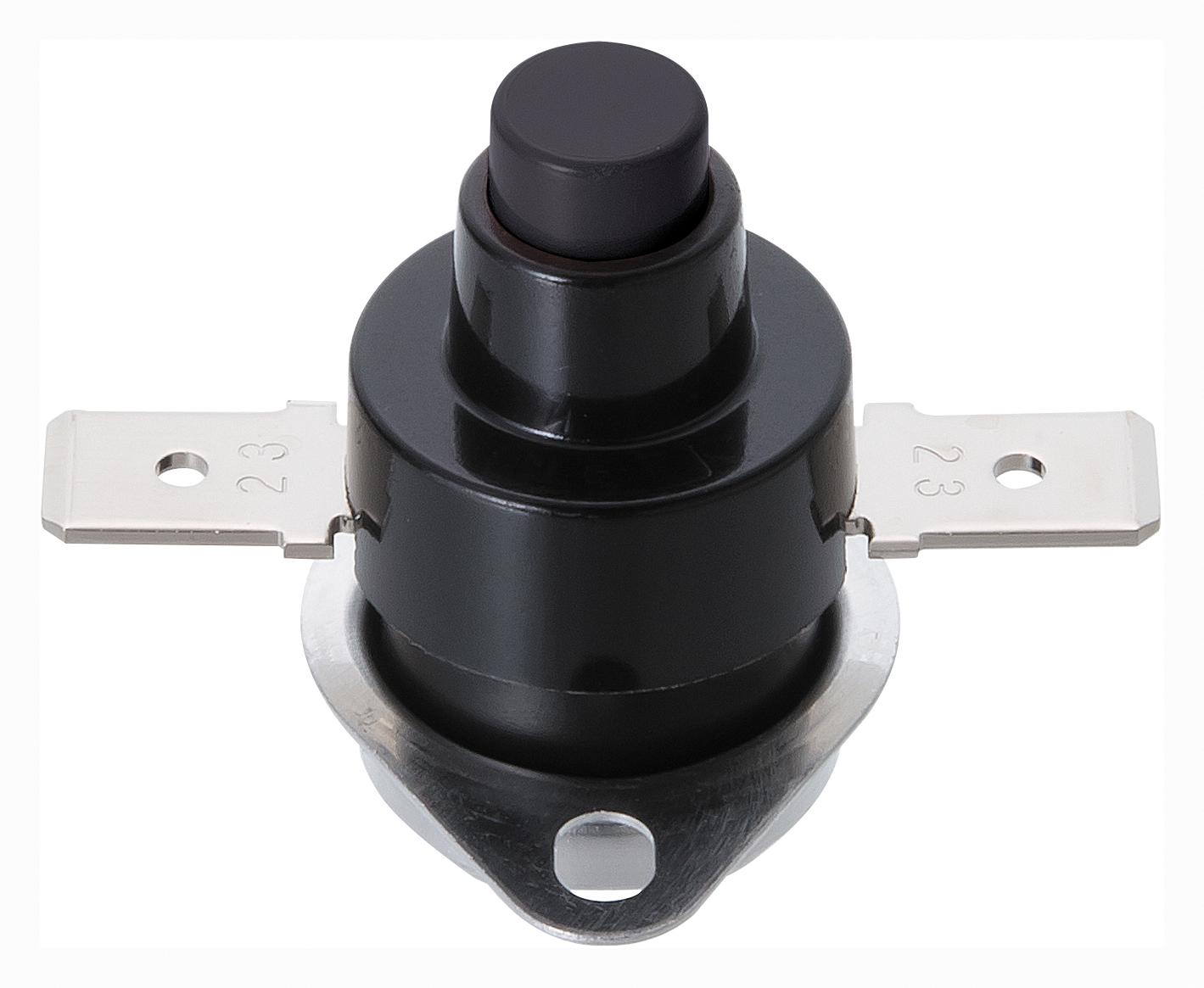

MULTICOMP PRO MP23EN67DEGNC Thermostat Switch
This 1/2-inch disc type thermostat switch features a manual reset and is designed for temperature control in various industrial applications. It is a Normally Closed (NC) type, with a temperature rating up to 80°C, suitable for environments requiring precise thermal management. Constructed with a metal disc and stainless steel bracket, it offers durability and reliable performance. The switch includes quick connect terminals for easy installation, complies with UL, C-UR, and VDE standards, and supports operation at AC voltages up to 250V. Ideal for safety and automation systems requiring automatic reset after temperature fluctuations.
MULTICOMP PRO MP23EN67DEGNC Thermostat Switch Specifications:
- Size: 1/2 inch disc type
- Operation Mode: Manual reset, Normally Closed (NC)
- Temperature Rating: Max. 80°C
- Electrical Rating: UL/ C-UR: AC 120V/15A, AC 240V/10A; VDE: AC 250V/16A
- Cycles: 6,000 (UL/ C-UR), 3,000 (VDE)
- Material: Bimetallic disc, aluminium cap, copper, stainless steel case
- Contacts: Silver-Nickel alloy
- Insulation Resistance: Not less than 1,000 MΩ/DC 500V
- Dielectric Strength: Not less than AC 1,500V/1min or AC 1,800V/1sec
- Operation Temperature: Max. 150°C
- Connection Terminals: 3.6 mm quick connect with positive lock
- Standards: UL 873, C-UR, DIN EN 60730-1, VDE Licence No. 40012267
Buy the Multicomp 23EN4366A67B – Reliable Temperature Control Switch for Industrial Applications
Order the multicomp thermostat switch today to ensure precise temperature control in your industrial setups. Featuring a durable bimetallic disc, quick connect terminals for easy installation, and approval standards like UL and VDE, this switch provides reliability for safety and automation systems. With operating temperatures up to 80°C and a lifespan of up to 6,000 cycles, it’s ideal for thermal management. Purchase online now to enhance your project’s safety, efficiency, and operational stability with this high-quality manual reset thermostat switch.
Buy multicomp 23EN4366A67B now and experience unmatched reliability and performance in temperature regulation with quick connect terminals.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP23EN67DEGNC?
You can click on the BUY or RFQ button to purchase MP23EN67DEGNC from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP23EN67DEGNC?
You can download the MP23EN67DEGNC datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP23EN67DEGNC?
MULTICOMP PRO
