MULTICOMP PRO MP002471 HDMI Sealed Connector

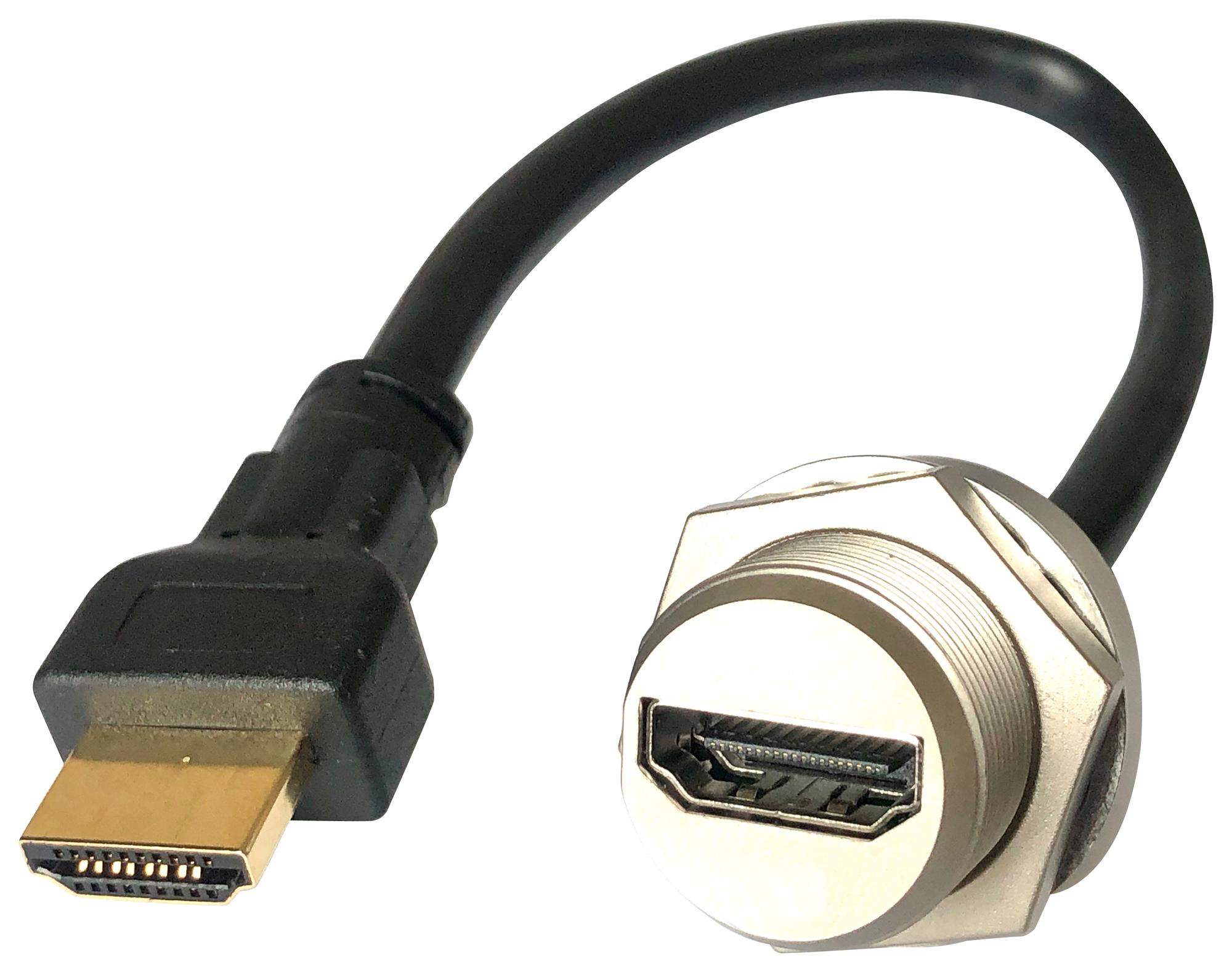

The MP metal-sealed HDMI connector series features robust, metallic construction designed for demanding environments. These environmentally sealed connectors meet IP68 standards, offering protection even when unmated or with the sealing cap removed. They are available with either DIP terminations or pre-wired with HDMI plugs or sockets. The connectors fit a 20.75mm cut-out, use threaded mating, and have gold-plated contacts, making them suitable for applications such as automation and process control, industrial systems, marine equipment, and medical devices.
MULTICOMP PRO MP002471 HDMI Sealed Connector Specifications:
- IP Rating: IP68
- Material: Zinc Alloy Housing, Ni Plated
- Seal: Silicone, Red
- Contact Finish: Au Plated Copper Alloy
- Shell Finish: Ni Plated Copper Alloy
- Dimensions: Fits 20.75mm cut-out, threaded mating
- Connector Type: Receptacle, Plug, or Receptacle to Receptacle
- Cable Compatibility: UL20276, OD=6.8mm to 7.3mm
- Operational Environment: Demanding conditions, marine, industrial, medical
- Recommended Panel Thickness: 0.8mm to 4.5mm
- Torque: 119 to 20Kgf-cm
Buy the Buy multicomp HDMI Receptacle Part Number MP002471 Online
Secure your connection with the multicomp HDMI Sealed Connector. Featuring IP68 protection, gold-plated contacts, and a durable metal shell, this HDMI connector is ideal for industrial, marine, and medical applications. Designed for demanding environments, it offers a reliable, waterproof interface with threaded mating for extra security. Easy to install and compatible with panel thicknesses from 0.8mm to 4.5mm, this connector ensures high performance and longevity. Order online now for fast delivery and trusted quality.
Buy multicomp MP002471 HDMI Receptacle now and ensure reliable connectivity with IP68 protection, gold-plated contacts, and robust construction for demanding environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002471?
You can click on the BUY or RFQ button to purchase MP002471 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002471?
You can download the MP002471 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002471?
MULTICOMP PRO
