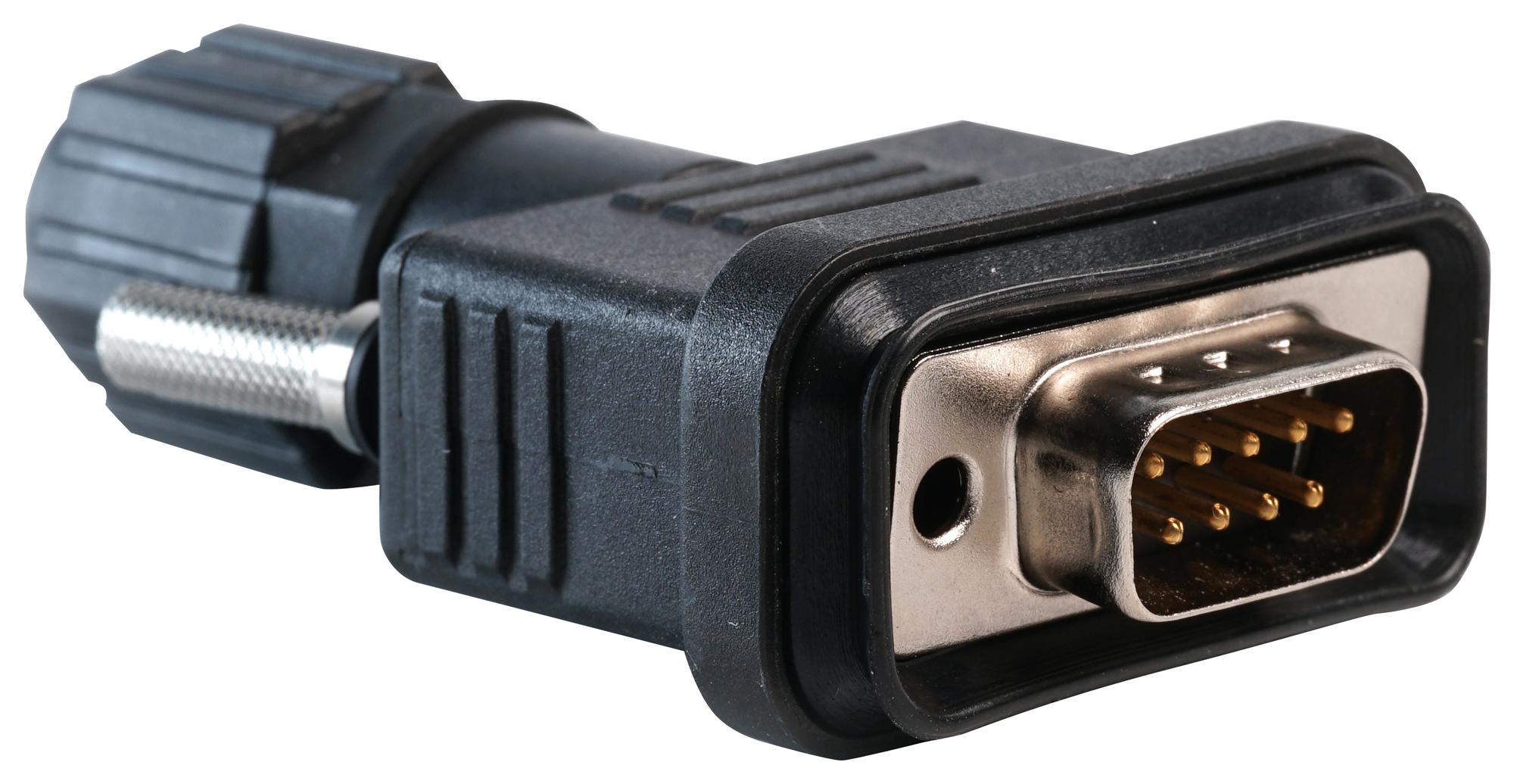

MULTICOMP PRO MP002479 Sealed D-Sub Connector
The MP Sealed D-Sub series of connectors are environmentally sealed and designed for rugged applications. These panel-mount connectors offer full rear potted protection, ensuring durability even when unmated or without the sealing cap. Available in standard 9-pin or high-density 15-pin configurations, they can be equipped with solder or pre-wired terminations. Features include an IP67 rating, screw-type mating mechanism, and gold-plated contacts. Suitable for use in audio, automation, process control, communications, and networking applications.
MULTICOMP PRO MP002479 Sealed D-Sub Connector Specifications:
- IP Rating: IP67
- Suitable Cable OD: 4mm to 8mm
- Recommend Cover Torque: 6 to 7Kgf-cm
- Recommend Gland Nut Torque: 9 to 10Kgf-cm
- Housing Material: Thermoplastic, Black
- Contacts: Copper Alloy, Gold Plated
- Shell Material: Cold Roll Steel, Ni Plated
- Sealing: EPDM, Black
- Suitable for panel thickness: 0.8mm to 2mm
- Screw type: #4-40, Ni Plated
- Overall Dimensions Vary by configuration, typical length approx. 39.4mm
- Designed for environmental sealing, durability, and reliable electrical connection
Buy the Multicomp Series Sealed D-Sub IP67: MP002479
Order the Multicomp Series Sealed D-Sub MP002479 online today for dependable, environmentally sealed connections suitable for harsh environments. Designed with an IP67 rating, these rugged connectors provide full rear potted protection and corrosion-resistant gold-plated contacts. Ideal for automation, communications, and networking applications requiring secure, reliable electrical connections in demanding settings. With easy panel mounting, screw-type mating, and a wide range of configurations, securing your project’s connectivity has never been easier and more reliable. Shop now for fast delivery and quality assurance.
Get Multicomp Series Sealed D-Sub MP002479 today—built for rugged environments, environmental sealing, and long-lasting performance.
