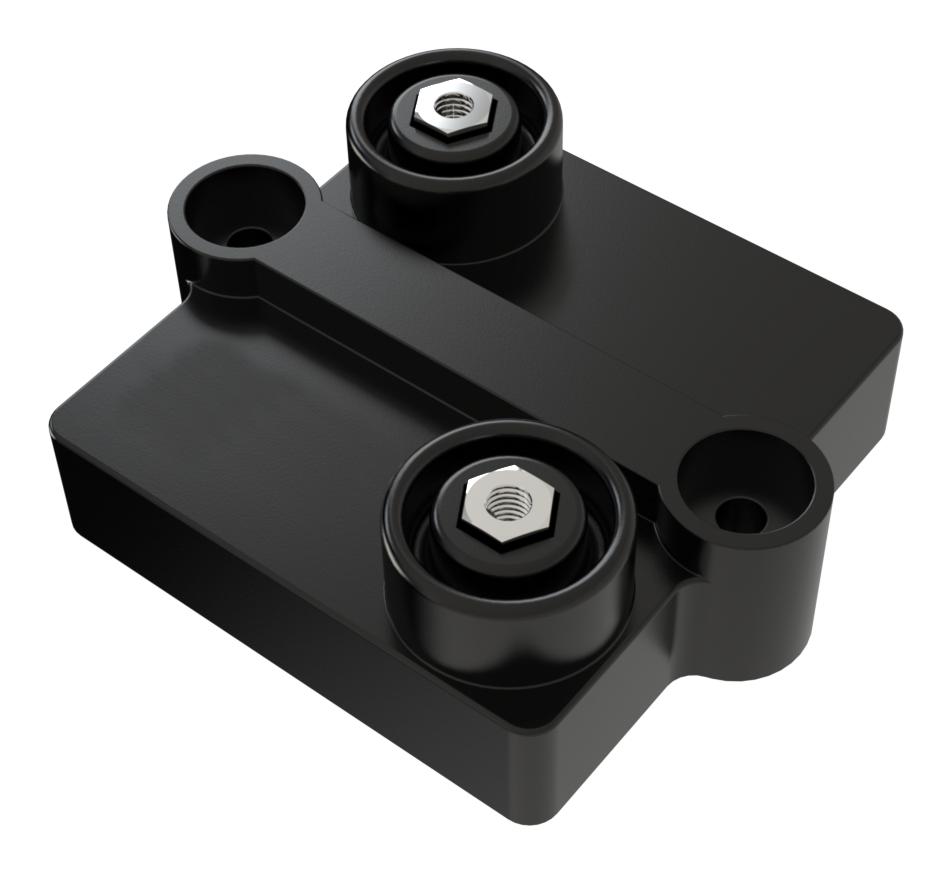

MULTICOMP PRO MP005176 Power Resistor
These high-power thick film panel mount resistors are ideal for applications requiring efficient heat conduction, such as snubbers and filters. Constructed by firing a special paste on alumina ceramic, all internal connections are welded for stability. They feature a molded housing that withstands harsh environments and must be mounted on a heatsink with thermal grease for optimal performance. Available in power ratings from 100W to 800W, these resistors provide excellent thermal performance, high dielectric strength, low parasitic inductance, and are UL94-V0 listed for safety and durability.
MULTICOMP PRO MP005176 Power Resistor Specifications:
- Power Rating: 100W to 800W depending on model
- Resistance Range: 1Ω to 100KΩ
- Tolerance: ±10%
- Temperature Coefficient: +100 ppm/K
- Max Working Voltage: up to 5000V AC
- Working Temperature Range: -55°C to +155°C
- Dielectric Strength: up to 7000VAC (Models vary)
- Insulation Resistance: > 10 MQ at 500V
- Partial Discharge: < 10pC at 5000V AC
- Self Inductance: up to 80nH
- Capacitance to Heat Sink: < 120pF
- Thermal Resistance: 0.15K/W to 0.15K/W depending on model
- Heatsink Flatness: 0.05mm
- Surface Finish: 6.3µm
- Max Torque for Mounting: 2Nm
- Weight: 100-130g depending on model
Buy the Buy multicomp:ro Thick Film Panel Mount Power Resistors Part Number MP005176 Online
Order the multicomp:ro MP005176 high-power thick film resistor online today for your electrical filtering and snubber needs. Manufactured with durable, UL94-V0 listed molded housing, these resistors deliver efficient heat conduction and stable electrical characteristics. Suitable for applications from 100W to 800W, they require mounting on a heatsink with thermal grease or insulating foil to achieve optimal performance. Ensure proper heat sink selection based on your power dissipation requirements. Experience reliable operation in harsh environments with these precision-engineered panel mount resistors, available for fast delivery online.
Get multicomp:ro MP005176 today—designed for high power, thermal stability, and reliable performance in demanding electrical filter applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP005176?
You can click on the BUY or RFQ button to purchase MP005176 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005176?
You can download the MP005176 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP005176?
MULTICOMP PRO
