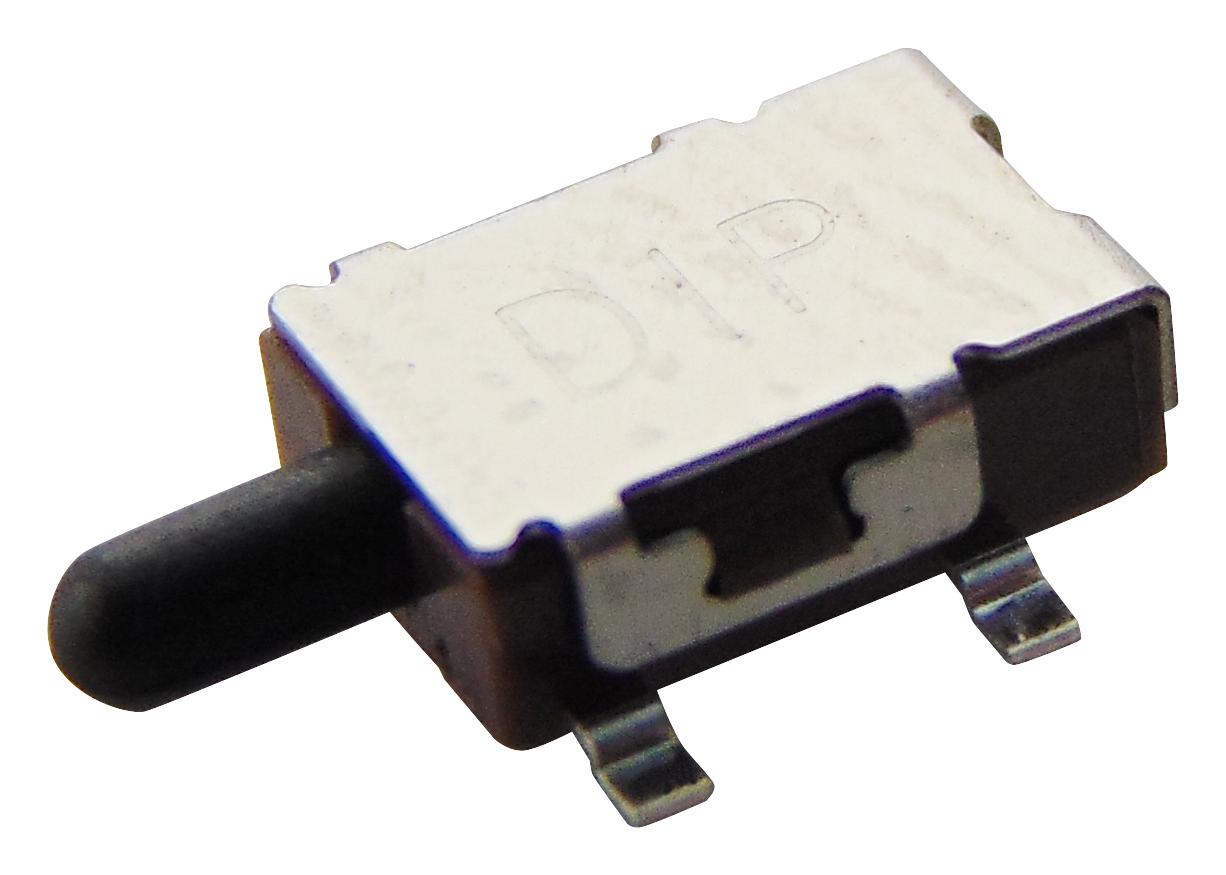

MULTICOMP PRO MCFTE2CV Micro Detector Switch
The MCFTE-2C-V single-pole, single-throw micro detector switch features a solder terminal, stainless steel contacts, and a high-temperature nylon stem and base. Designed for reliable operation, it has a maximum contact resistance of 2 ohms, insulation resistance of 100 megaohms, and dielectric strength of 100VAC for one minute. Its compact size makes it ideal for industrial automation and electronic applications. The switch withstands up to 100,000 cycles, operating within -10°C to +60°C, with external dimensions of approximately 4mm height, 5.55mm width, and 2mm depth, ensuring durability and precision for sensitive electronic devices.
MULTICOMP PRO MCFTE2CV Micro Detector Switch Specifications:
- Maximum Operating Force: 50gf
- Operating Temperature: -10°C to +60°C
- Storage Temperature: -20°C to +70°C
- External Height: 2mm
- External Width: 4mm
- External Depth: 5.55mm
- Electrical Life: 100,000 cycles
- Rating: 1mA, 5V DC
- Maximum Contact Resistance: 2 ohms
- Minimum Insulation Resistance: 100 megaohms
- Dielectric Strength: 100VAC/1 minute
- No. of Poles: 1
- Contact Configuration: SPST
- Material - Cover: Nylon high-temperature thermoplastic, Black
- Material - Base: Nylon high-temperature thermoplastic, Black
- Material - Stem: Stainless steel
- Material - Contact: Stainless steel with silver plating
- Material - Terminal: Brass with silver or gold plating
- Spring: Piano wire
- Soldering: Hand and reflow soldering suitable, max 260°C peak
- Dimensions: Approximately 4mm height, 5.55mm width, 2mm depth
Buy the Multicomp Pro MCFTE2C-V – Reliable Micro Detector Switch for Industrial Applications
Elevate your electronic and industrial projects with the Multicomp Pro MCFTE2C-V micro detector switch, offering precision, durability, and reliable operation. Constructed with high-quality stainless steel contacts, a high-temperature nylon stem and base, and a robust design, it supports up to 100,000 cycles and features a compact form factor suitable for space-sensitive applications. Its excellent electrical resistance and insulation properties make it ideal for automation, instrumentation, and control systems, providing consistent performance under diverse conditions. Purchase online today for guaranteed quality and fast delivery to keep your projects running smoothly.
Order your Multicomp Pro MCFTE2C-V Micro Detector Switch today and ensure dependable performance in sensitive electronic and industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCFTE2CV?
You can click on the BUY or RFQ button to purchase MCFTE2CV from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCFTE2CV?
You can download the MCFTE2CV datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCFTE2CV?
MULTICOMP PRO
