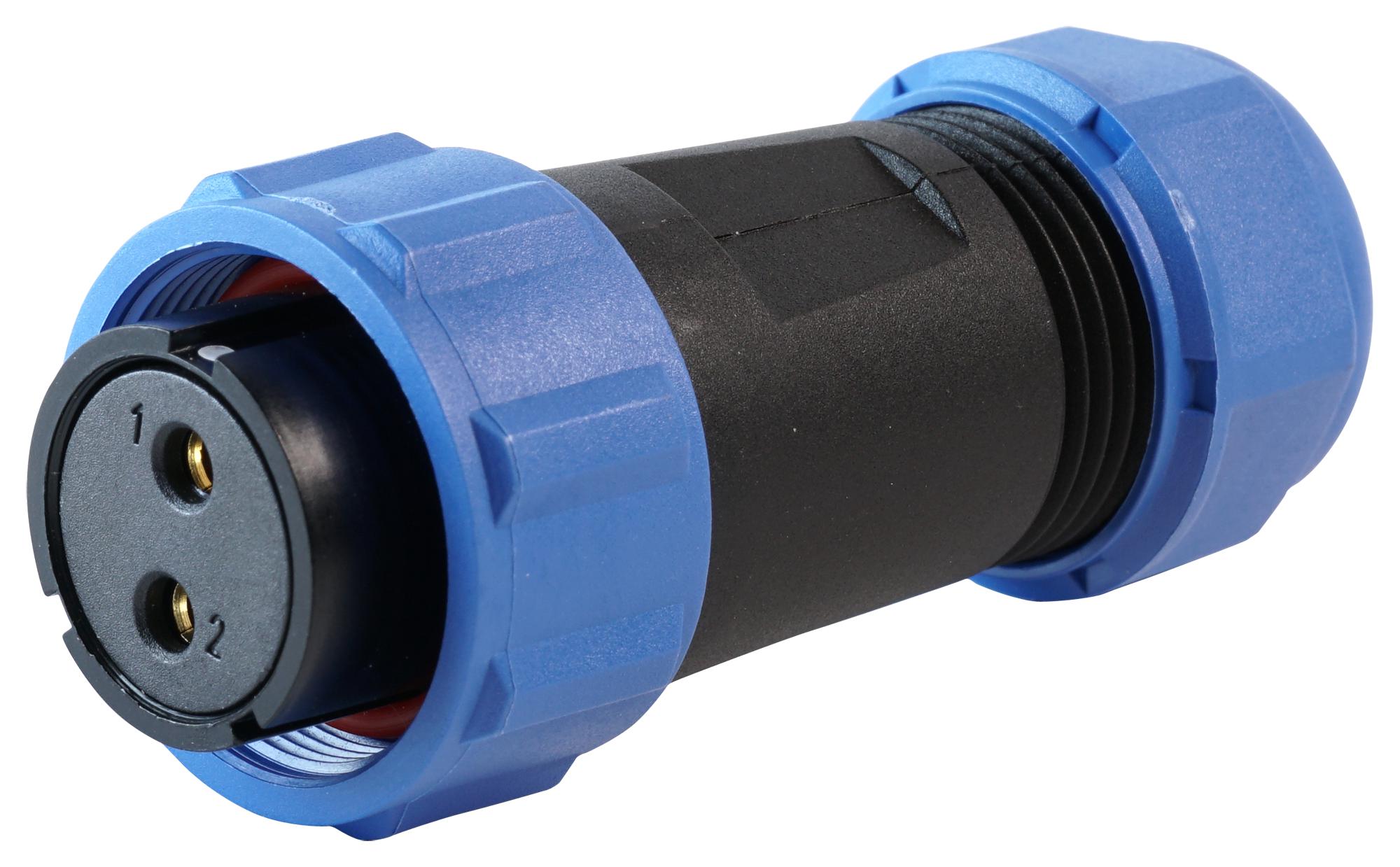

MULTICOMP PRO MP002557 IP68 Circular Connector
The MP-T21 IP68 series connectors are robust, weatherproof components with threaded coupling and IP68 sealing, suitable for harsh outdoor environments. These connectors are available in various configurations, including panel mount, cable mount, and inline cable mount, supporting multiple pole options from 2 to 12 pins for versatile applications. Made from nylon66 shells, brass contacts with gold plating, and PPS inserts rated up to 260°C, they ensure durability, resistance to extreme temperatures, and reliable electrical connections. The connectors feature solder and screw terminations for flexible wiring, with an IP68 cap for enhanced protection, ideal for automation, industrial, and security systems.
MULTICOMP PRO MP002557 IP68 Circular Connector Specifications:
- Shell Material: Nylon66, Locking Nut, Back Shell, Compressing Nut, Retaining Nut
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- IP Rating: IP68
- Coupling: Threaded
- Temperature Range: -40°C to +85°C
- Mating Cycle: 500
- Termination: Solder and Screw
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12
- Rated Current: 30A (for 2-4 pole), 15A (for 5 pole), 5A (for 7, 9, 12 pole)
- Rated Voltage: 500V (2-5 pole), 400V (7, 9, 12 pole)
- Test Voltage: 1500V (1 min)
- Contact Resistance: 1mΩ (2-4 pole), 2.5mΩ (5 pole), 5mΩ (7, 9, 12 pole)
- Cable Diameter Range: 7mm to 12mm
- Compliance: RoHS
Buy the Multicomp Series IP68 Circular Connectors: MP002557
Purchase the IP68 Circular Connectors from Multicomp online today. These connectors are engineered for outdoor and industrial use, featuring threaded coupling, weather sealing, versatile configurations, and high-quality materials including nylon66 shells, brass contacts with gold plating, and PPS inserts rated up to 260°C. They support solder and screw terminations, accommodate cable diameters from 7mm to 12mm, and provide excellent resistance to extreme temperatures and harsh environments. Ideal for automation, security, medical, and industrial applications, ensuring long-lasting performance and reliable connections.
Get Multicomp IP68 Connector MP002557 today—built for outdoor durability and reliable electrical connections in demanding environments.
