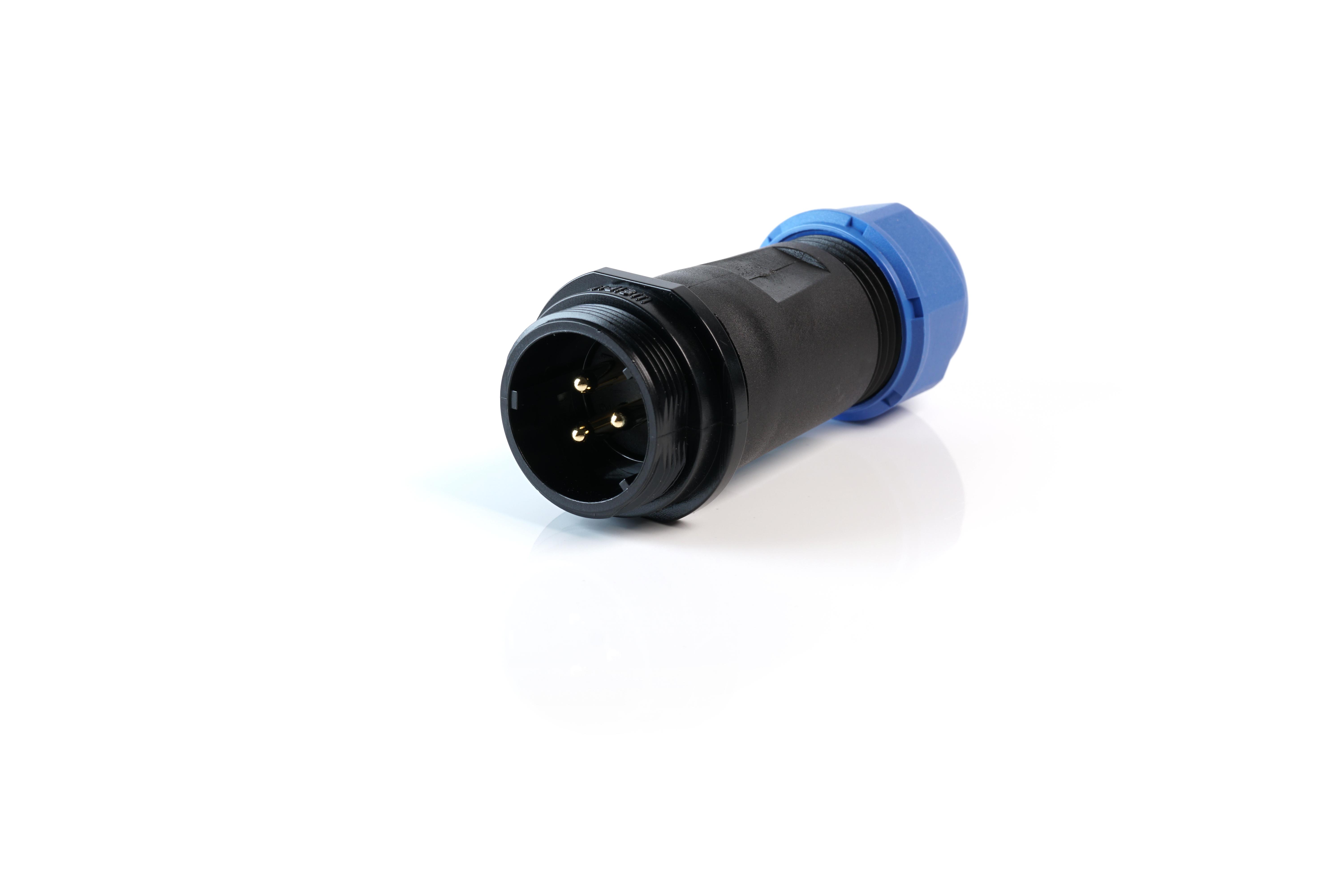

MULTICOMP PRO MP002572 Industrial Waterproof Connector
The MP-T21 IP68 series is a durable, weatherproof connector line with threaded coupling and sealing up to IP68. Available in panel, cable, and inline mounts, they provide secure, reliable connections for indoor and outdoor use. Designed for automation, process control, security, and industrial applications, these connectors support solder and screw terminations, fit a 21mm cut-out, and accommodate 2 to 12 poles. Optional IP68-rated caps protect unused ports, ensuring high durability and resistance in harsh environments, with mating cycles up to 500 for long-lasting performance.
MULTICOMP PRO MP002572 Industrial Waterproof Connector Specifications:
- Material: Nylon66 shell, PPS insert, brass contacts with gold plating
- Ingress Protection: IP68
- Temperature Range: -40°C to +85°C
- Rated Voltage: 500 V (AC), Test Voltage: 1500 V (1 min.)
- Rated Current: 30 A (2-4 poles), 15 A (5 poles), 5 A (7-12 poles)
- Contact Diameter: 3 mm (2-4 poles), 2 mm (5 poles), 1 mm (7-12 poles)
- Termination: Solder or screw
- Mounting Options: Panel, cable, inline cable mount
- Cable Outer Diameter Range: 7mm to 12mm
- Mating Cycle: 500
- Insulation Resistance: 2000 MΩ
- Shell Material: Nylon66, Locking Nut and Back Shell: Nylon66
- Fire Resistance: V-0
- Environmental Resistance: Suitable for outdoor use and harsh environments
Buy the Multicomp Series IP68 Connector: MP002572
Secure your industrial projects with the multicomp waterproof connector MP002572. Featuring IP68 sealing, threaded coupling, multiple mounting options, and available in various pole configurations, this durable connector ensures reliable, long-lasting performance in harsh conditions. Perfect for automation, process control, security, and outdoor applications, it supports solder and screw terminations, with a maximum of 12 poles, and optional protective caps. Buy online now for professional-grade quality and seamless integration into your systems.
Order your multicomp IP68 connector MP002572 today and ensure your projects are protected with reliable, high-durability connections designed for tough environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002572?
You can click on the BUY or RFQ button to purchase MP002572 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002572?
You can download the MP002572 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002572?
MULTICOMP PRO
