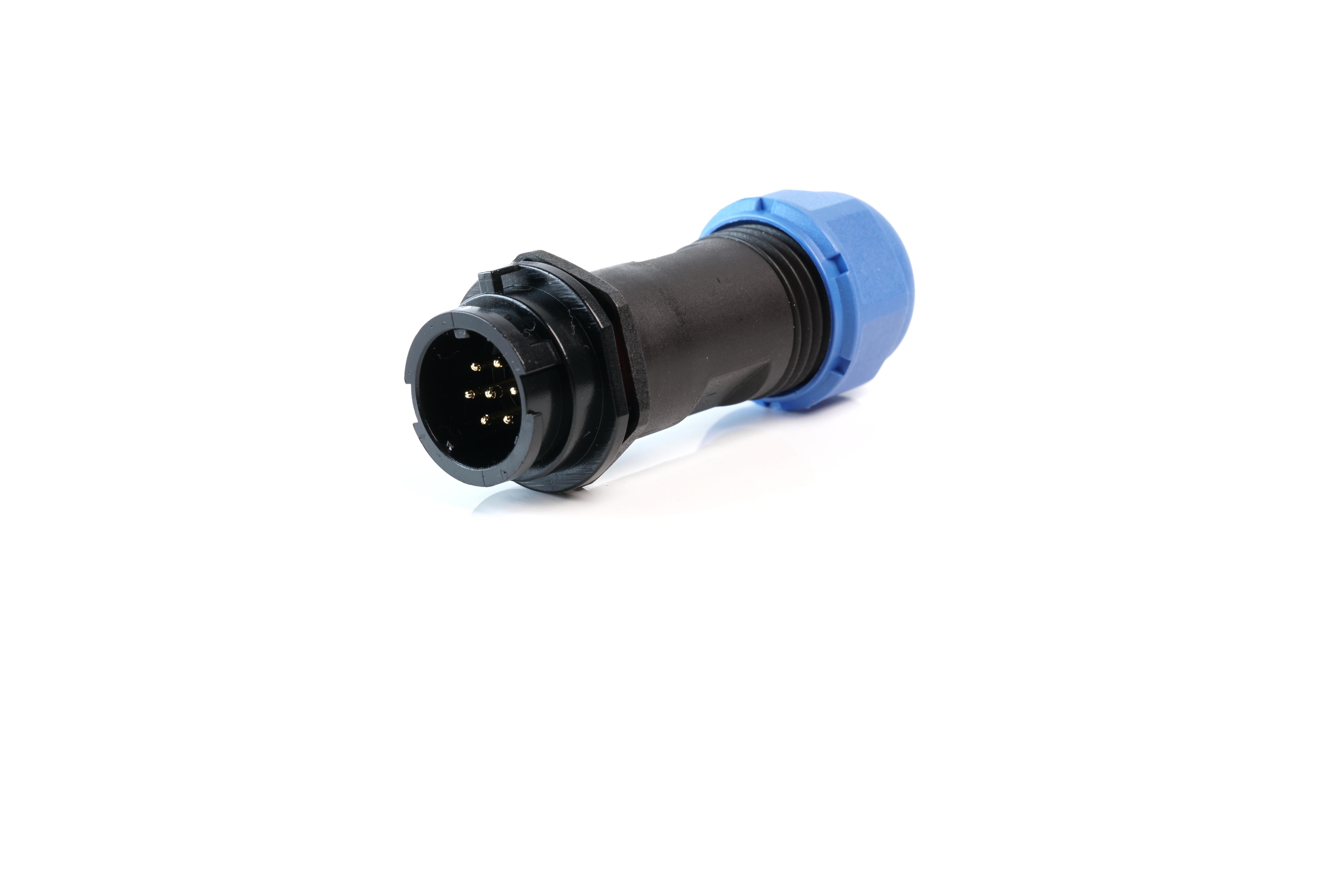

MULTICOMP PRO MP002635 IP67 Circular Connector
The MP-T13 IP67 series offers durable, weatherproof connectors with bayonet coupling for quick and secure connections. Designed for indoor and outdoor applications, these connectors come in panel, cable, and inline configurations, supporting 2, 3, 4, 5, and 7 poles. Featuring a 13mm mounting cut-out, solder termination, and a locking bayonet mechanism, they ensure reliable performance in demanding environments. Widely used in automation, industrial control, medical equipment, security, and measurement systems, these connectors meet IP67 standards, resist dust and water, and handle circuit currents of up to 13A with voltages up to 250V.
MULTICOMP PRO MP002635 IP67 Circular Connector Specifications:
- IP67 weatherproof rating
- Coupling: Bayonet
- Material: Nylon66 shell, PPS insert, brass contacts with gold plating
- Contact Diameter: 1-1.6 mm
- Rated Current: 5-13A
- Rated Voltage: 125-250V
- Temperature Range: -40°C to +80°C
- Mating Cycle: 500
- Insert Max Temperature: 260°C
- Termination: Solder
- Number of Contacts: 2, 3, 4, 5, 7
- Contact Resistance: 2.5-5 mΩ
- Dimensions: Suitable for 4-6.5 mm cable outer diameter
- Housing Material: Nylon66, silicone O-rings
- Dust Cap included for protection
- Compatibility: Panel, cable, and inline mountings, suitable for industrial environments
Buy the Buy Multicomp IP67 Connectors Part Number MP002635 Online
Order the IP67 circular connector MP002635 online today and ensure your applications are protected against dust and water. This robust connector is ideal for outdoor, industrial automation, and critical systems requiring secure, quick coupling with a long cycle life. Featuring a durable nylon66 shell, gold-plated brass contacts, and a solder termination method, it provides reliable electrical performance in demanding environments. Easily mountable in panel, cable, and inline configurations, this versatile connector ensures your system remains sealed and protected against environmental elements for ongoing operational stability.
Buy Multicomp IP67 connectors Part Number MP002635 now and experience unmatched reliability and rugged performance in harsh environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002635?
You can click on the BUY or RFQ button to purchase MP002635 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002635?
You can download the MP002635 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002635?
MULTICOMP PRO
