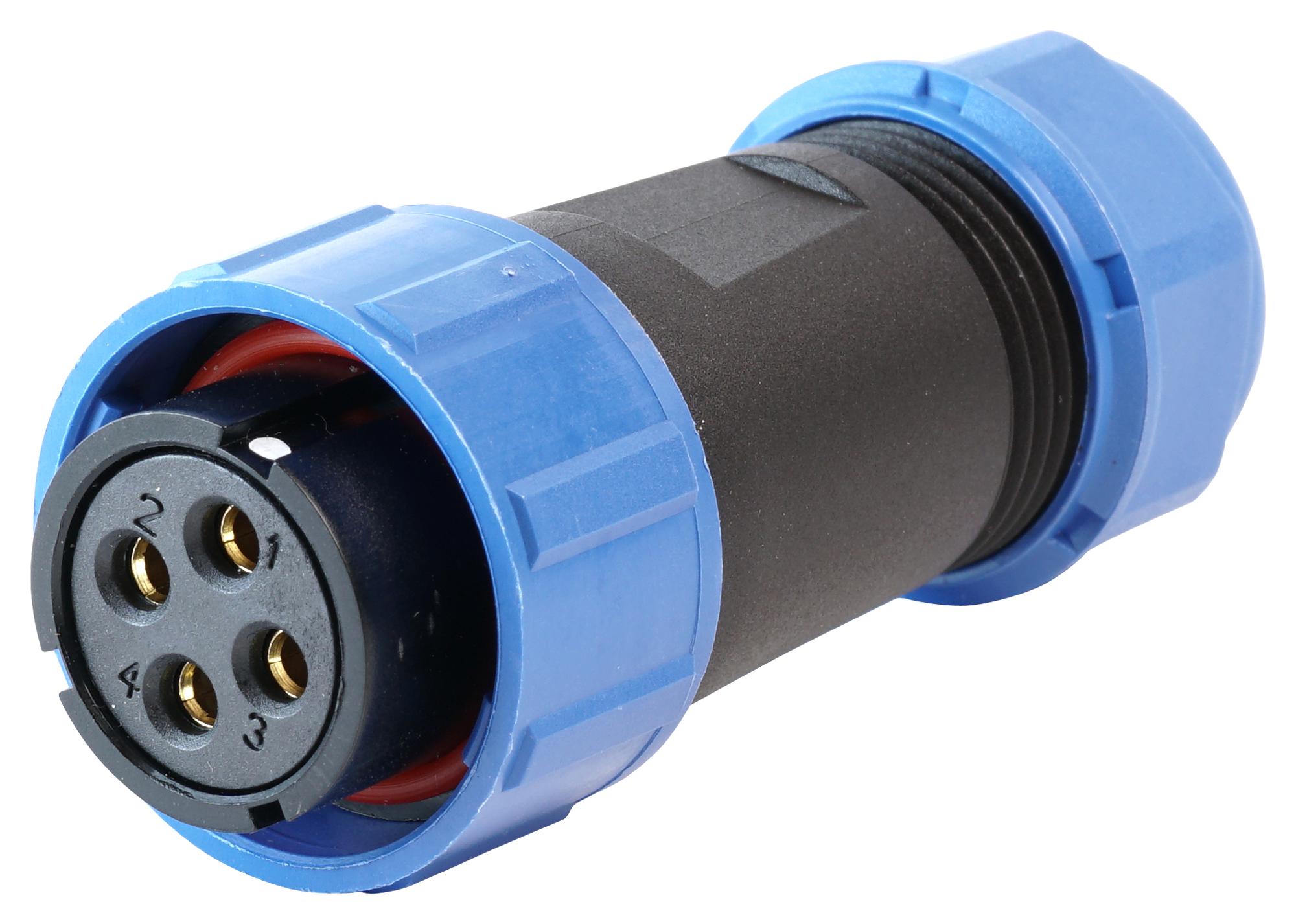

MULTICOMP PRO MP002672 IP67 Connector
The MP-T21 IP67 series is a durable connector range with bayonet coupling for quick, secure connections. Available in panel, cable, and inline configurations, these weatherproof connectors support indoor and outdoor use with an IP67 rating. They accommodate various mounting options, including 21mm panel cut-outs, and come with solder or screw termination options suitable for different wire sizes. The series includes 2, 3, 4, 5, 7, 9, and 12 pole variants, with optional IP67 dust caps, making them ideal for automation, medical, security, test equipment, and industrial control applications, ensuring reliable connectivity in harsh environments.
MULTICOMP PRO MP002672 IP67 Connector Specifications:
- Shell Material: Nylon66
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- IP Rating: IP67
- Mating Cycle: 500
- Temperature Range: -40°C to +80°C
- Insulation Resistance: 2000 MΩ
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12
- Rated Current: 5-30 A depending on contact size
- Rated Voltage: 400-500 V AC
- Test Voltage: 1200-1500 V AC
- Contact Resistance: 1-5 mΩ
- Termination: Solder or Screw
- Wire Size for Solder: 0.75/18 mm²/AWG
- Wire Size for Screw: 1.5/15 mm²/AWG
- Physical Dimensions: Supports cable outer diameter up to 12mm, panel cutout compatible with 21mm diameter
- Certifications: RoHS compliant
- Configuration Options: Panel mount, cable mount, inline; 2 to 12 poles; optional dust cap for enhanced protection
Buy the Buy multicomp IP67 Connectors Part Number MP002672 Online
Discover the robust and weatherproof IP67 connector series, engineered for secure connections in harsh environments. Available in panel, cable, and inline configurations with multiple pole options, these connectors feature quick bayonet coupling for easy installation and disconnection. Suitable for automation, medical, security, and industrial applications, they support a wide temperature range and include optional dust caps for added protection. With solder and screw termination options, high mating cycle count, and proven durability, these connectors ensure reliable performance in outdoor and challenging industrial settings. Buy online now for quality you can trust.
Get multicomp IP67 connectors MP002672 today—designed for rugged, reliable performance in industrial and outdoor environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002672?
You can click on the BUY or RFQ button to purchase MP002672 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002672?
You can download the MP002672 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002672?
MULTICOMP PRO
