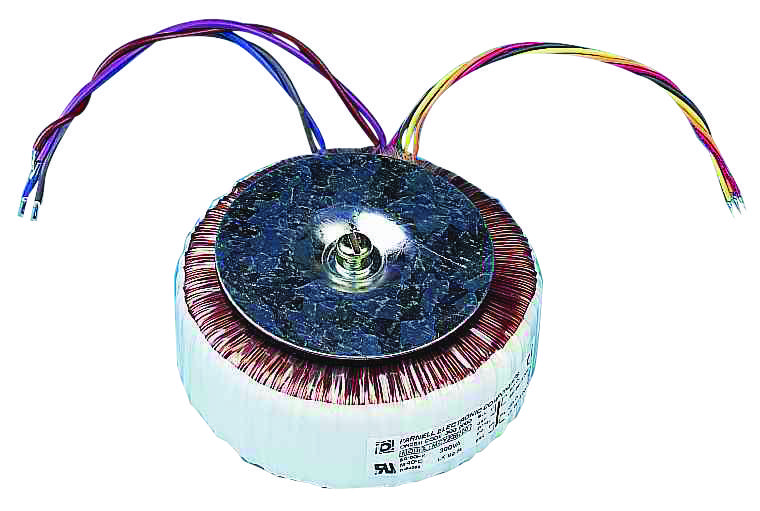

MULTICOMP PRO MCTA22515 Toroidal Transformer
The Multicomp MCTA series toroidal transformers are versatile, general-purpose devices featuring dual secondary windings that can be connected in series or parallel, suitable for industrial and power management applications. They operate at 50/60Hz with power ratings from 15VA to 1000VA and secondary voltages from 2 x 6VAC up to 2 x 55VAC. These transformers have double insulated primary leads, enabling easy trimming to desired lengths without removing enamel insulation. They are 100% tested for electrical and flash reliability, come with mounting plates, foam pads, screws, nuts, and washers, ensuring reliable installation and performance.
MULTICOMP PRO MCTA22515 Toroidal Transformer Specifications:
- Power Ratings: 15VA to 1000VA
- Primary Voltage: 115VAC / 230VAC ±10%
- Secondary Voltage: 2 x 6VAC to 2 x 55VAC
- Operating Frequency: 50/60Hz
- Wire Type: Double insulated PVC, UL1015, rated 600V / 105°C
- Terminals: Tinned, 6mm length, with mounting hardware included
- Insulation Class: Winding - Class H (180°C), Insulation System - Class B (130°C), Leadout - Class A (105°C)
- Standards: EN61558-1, UL1411, UL60601-1, UL60065-1
- Physical Dimensions: Diameter varies with model, height from approximately 22mm to 105mm, weight varies from 0.33kg to over 7kg
- Temperature Rise: Typical 40°C to 60°C depending on power rating
- Mounting: Dished plates with foam pads and M6/M8 screws included
Buy the Multicomp Series General Purpose Toroidal Transformer: MCTA22515
Enhance your power management setup with the high-quality Multicomp Series Toroidal Transformer. Featuring dual secondary windings, robust insulation, and comprehensive testing, this transformer guarantees dependable performance for industrial and electronic projects. With ratings spanning from 15VA to 1000VA, it offers flexible voltage options suitable for various power requirements. The included mounting hardware and safety features ensure easy installation and long-lasting reliability. Purchase online now to secure a trusted component that delivers consistent power with safety and efficiency.
Order your Multicomp Series MCTA22515 toroidal transformer today and give your projects the reliable power supply they need for industrial applications.
