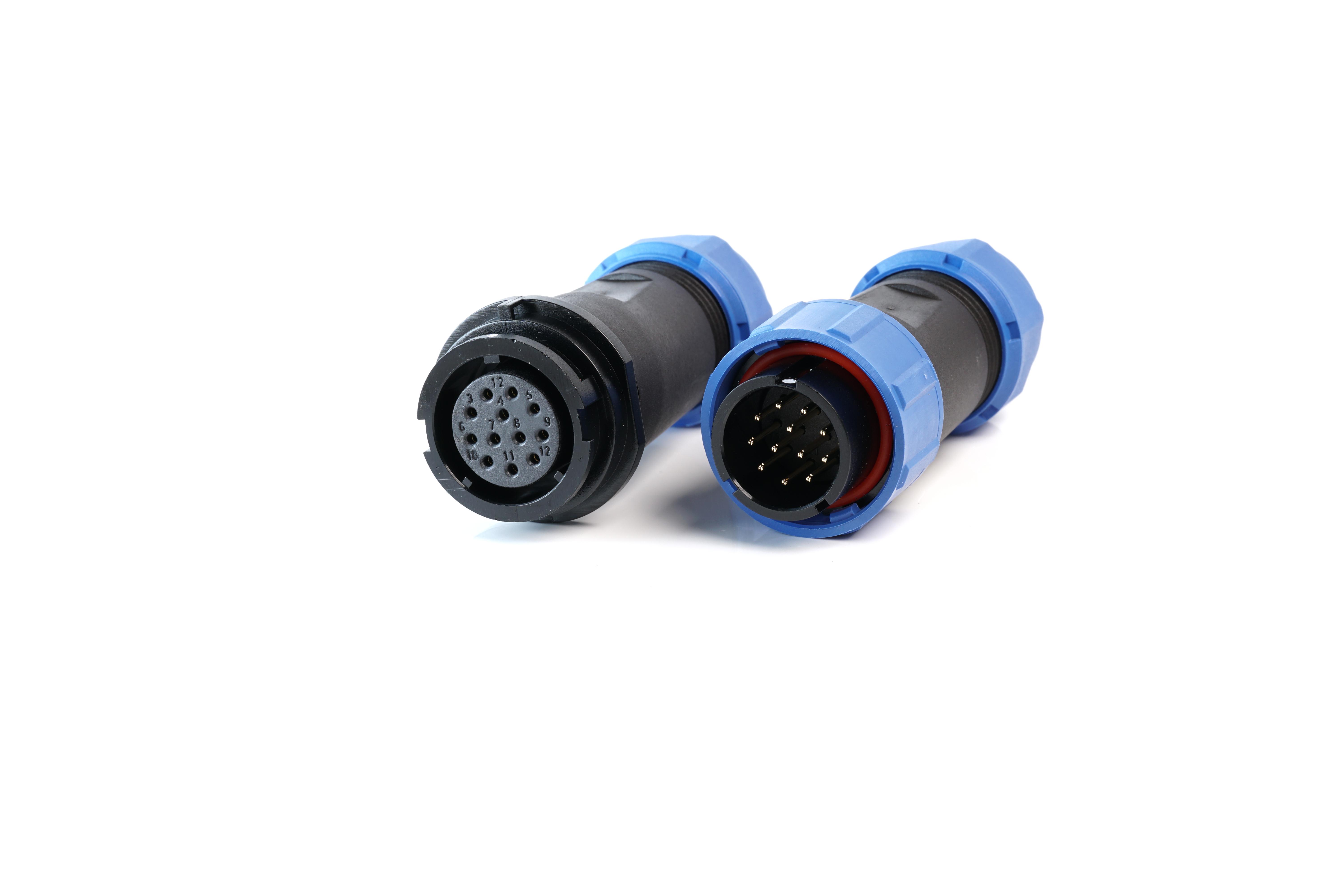

MULTICOMP-PRO MP002707 industrial connector
The MP-T21 IP67 series connectors are robust and versatile, ideal for reliable outdoor and industrial applications. Featuring bayonet coupling for quick, secure connections, these connectors support panel, cable, and inline mounting options. Constructed with nylon66 shells and insert housing shells, they provide excellent weather resistance and fire resistance rated V-0. The series includes solder and screw termination types, accommodating multiple contact configurations from 2 to 12 poles, with ratings up to 30A and 500V. They meet IP67 standards, incorporating rubber seals and dust caps for additional protection, suitable for automation, process control, and security systems. Overall, these connectors are designed for durability, ease of installation, and high performance in challenging environments.
MULTICOMP-PRO MP002707 industrial connector Specifications:
- Material: Nylon66 shell, insert housing shell, gold-plated brass contacts, PPS insert rated Max. 260°C
- Ingress Protection: IP67 with rubber seals and dust caps
- Coupling: Bayonet quick-lock mechanism
- Mounting options: Panel, cable, inline cable mount
- Rated Current: Up to 30A per contact
- Rated Voltage: 500V AC
- Test Voltage: 1500V AC for 1min
- Contact Resistance: 1mΩ (solder contacts), 2.5-5mΩ (screw contacts)
- Operating Temperature Range: -40°C to +80°C
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12
- Termination: Solder and screw options, wire size for solder: 0.75/18 mm², for screw: 1.5/15 mm²
- Mating Cycle: 500 times
- RoHS Compliant
Buy the Buy multicomp:ro IP67 Connector Part Number MP002707 Online
Order the multicomp:ro IP67 connector MP002707 online today and discover a highly durable, weatherproof solution suitable for automation, security, and outdoor industrial environments. Designed with high-quality nylon66 shells and efficient bayonet coupling, these connectors provide quick installation and secure connections. Available in multiple configurations with solder and screw terminations, they support up to 30A current and 500V voltage. Their IP67 sealing, dust caps, and broad mounting options make them perfect for challenging conditions, ensuring reliable performance over extensive use.
Buy multicomp:ro IP67 connector MP002707 now and experience unmatched durability, weather resistance, and reliable connections for industrial and outdoor applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP002707?
You can click on the BUY or RFQ button to purchase MP002707 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002707?
You can download the MP002707 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP002707?
MULTICOMP-PRO
