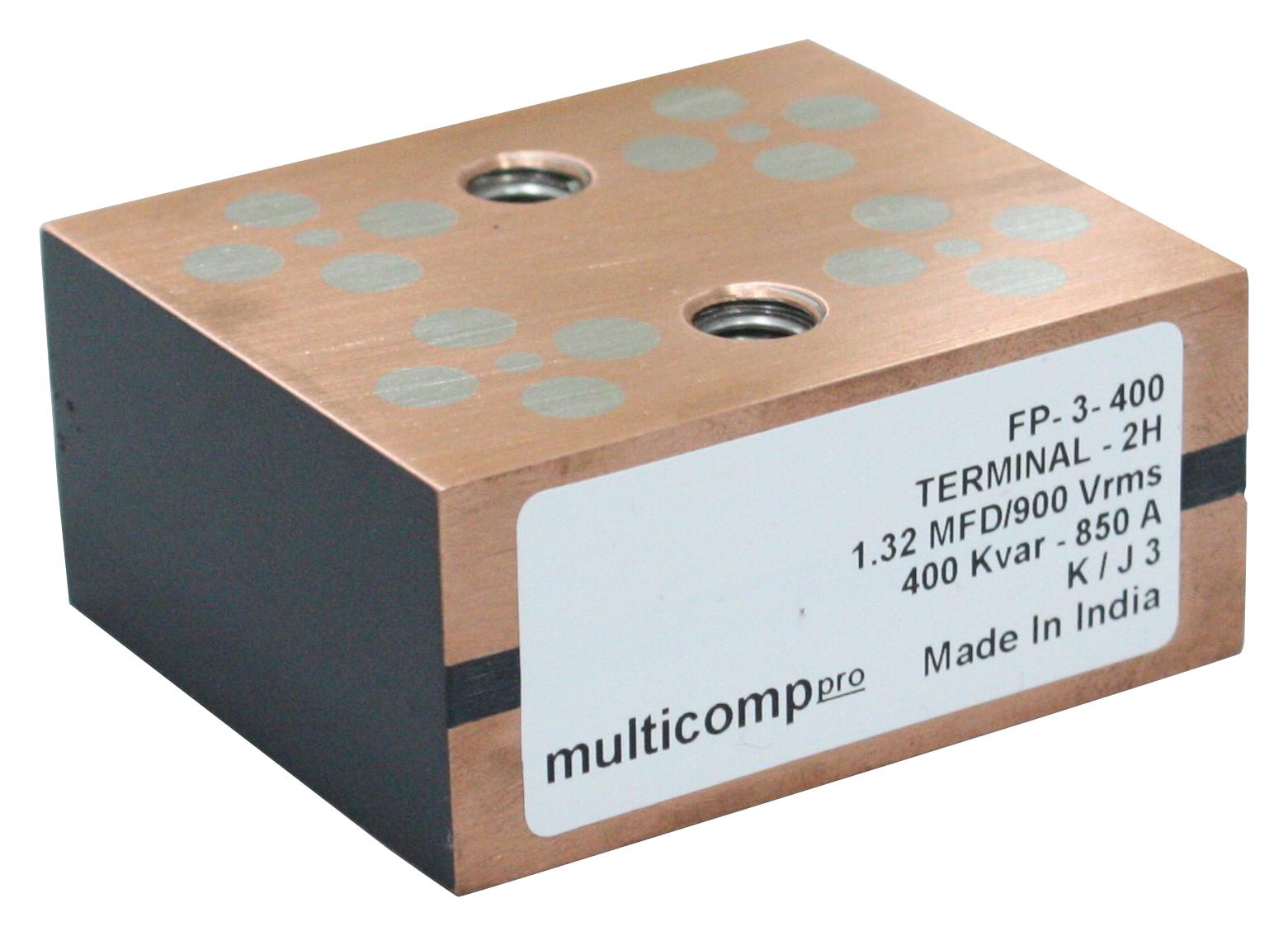

MULTICOMP-PRO MP004046 Power Film Capacitor
The multicomp power film capacitor with screw/stud terminals features conduction cooling, polypropylene dielectric, self-healing properties, and operation up to 1000kHz. It supports voltages up to 700 VRMS and capacitances ranging from 0.33 to 5 MFD, with a maximum operating temperature of 85°C. Designed for high-frequency power applications, it includes flame retardant UL94-V0 certification, robust terminal styles, and rated currents up to 600 ARMS. This makes it ideal for industrial, power conversion, and filtering systems requiring reliable, high-performance capacitance.
MULTICOMP-PRO MP004046 Power Film Capacitor Specifications:
- Voltage: 700 VRMS maximum
- Capacitance: 0.33 MFD to 5 MFD
- Current: up to 600 ARMS
- Power: up to 400 KVAR
- Operating Temperature: Max 85°C
- Dielectric: Polypropylene
- Features: Self-healing, flame retardant UL94-V0
- Terminal Style: Screw/stud terminals, 4H and 2H types
- Dimensions: Lengths vary with model, typical diameter 60-66 mm
- Tightening Torque: 15 Nm max
- Frequency Range: Supporting up to 1000 kHz
- RoHS Compliant
Buy the Power Capacitor Series PowerFilm: MP004046
Purchase Power Film Capacitor MP004046 online for dependable high-frequency filtering needs. Featuring polypropylene dielectric, screw/stud terminals, and ratings up to 700 VRMS and 600 ARMS, this capacitor ensures reliable performance in industrial power systems. Its self-healing design and UL94-V0 flame retardant certification make it safe and durable. Ideal for power conversion, filtering, and industrial applications, this capacitor allows quick online ordering, ensuring you get premium quality components delivered swiftly to support your engineering and power projects.
Get PowerFilm MP004046 today—built for high-frequency power filtering and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP004046?
You can click on the BUY or RFQ button to purchase MP004046 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004046?
You can download the MP004046 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP004046?
MULTICOMP-PRO
