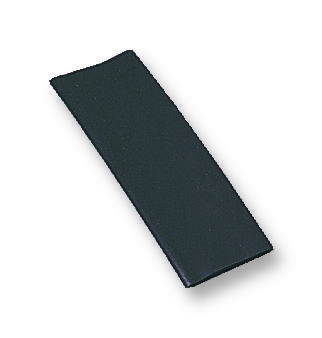

MULTICOMP PRO 13638 Heat Shrink Tubing
This halogen-free polyolefin heat shrink tubing offers excellent flexibility and shrinkage at low temperatures, making it ideal for protecting temperature-sensitive electronic components. Suitable for wire and cable insulation, it features a 2:1 shrink ratio, operates from -55°C to +125°C, and meets industry standards including Sony-SS-00259. Its outstanding electrical and mechanical properties include high tensile strength, elongation, dielectric strength, and excellent resistance to heat aging and flammability. Available in multiple sizes and colors, it ensures reliable electrical insulation and mechanical protection in demanding environments.
MULTICOMP PRO 13638 Heat Shrink Tubing Specifications:
- Material: Radiation cross-linked halogen-free polyolefin
- Shrink Ratio: 2:1
- Operating Temperature: -55°C to +125°C
- Minimum Shrink Temperature: 70°C
- Full Recovery Temperature: 120°C
- Tensile Strength: 210.4 MPa (ASTM D2671)
- Ultimate Elongation: 2200% (ASTM D2671)
- Longitudinal Shrinkage: 45% (UL 224)
- Dielectric Strength: 215 kV/mm (ASTM D150)
- Volume Resistivity: 21 x 10^4 Ω·cm (ASTM D2671)
- Flammability: FMVSS302 pass
- Temperature Resistance: Heat aging at 158°C for 168 hours, heat shock at 250°C for 4 hours with no cracking or dripping
- Color Options: Black, Red, Yellow, White, Blue, Brown
- Dimensions: Various sizes from 1.6mm to 50.8mm internal diameter, typical wall thickness 0.2mm to 0.5mm after recovery
- RoHS Compliant
Buy the Farnell Series prO-POWER Heat Shrink Tubing: 13638
Enhance your electrical insulation and cable protection with our high-quality, flexible, halogen-free polyolefin heat shrink tubing. Suitable for temperature-sensitive components, it shrinks reliably at low temperature with a 2:1 ratio. Its excellent electrical and mechanical properties, including high dielectric strength and heat resistance, make it ideal for demanding environments. Available in various sizes and colors like black, red, yellow, white, blue, and brown, it ensures safe, durable insulation. Buy online today for quick delivery and dependable performance.
Order your Farnell Series prO-POWER 13638 heat shrink tubing today and give your electrical projects reliable, flexible protection during installation.
