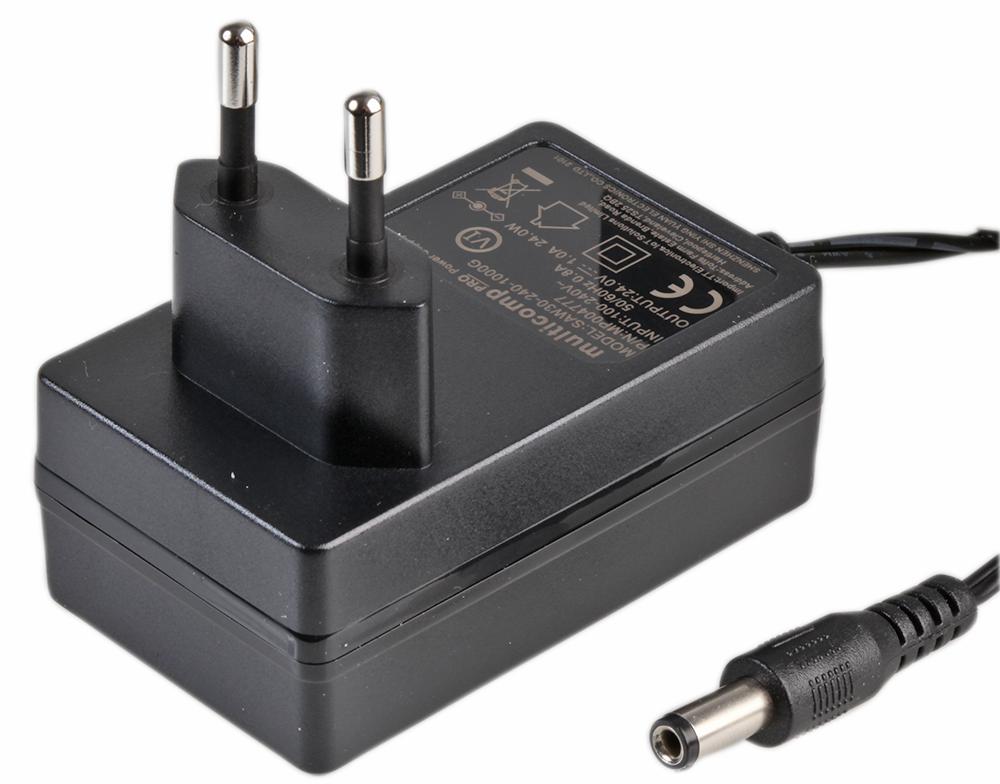

MULTICOMP PRO MP004777 Wall Plug Power Supply
The 24W EU Wall Plug Adapter provides a compact and reliable power solution with a 24V DC output at 1A, suitable for various general power applications. It features a European fixed AC head, Level VI efficiency for low power consumption, CE approval, and RoHS compliance. The switch-mode power supply offers high efficiency, with a minimum of 86.2%, and includes self-recovery overcurrent and short-circuit protections. Its compact size and easy-to-use straight plug make it ideal for quick installation in many electronic devices and industrial applications.
MULTICOMP PRO MP004777 Wall Plug Power Supply Specifications:
- Input Voltage Range: 90V AC to 264V AC
- Input Frequency Range: 47Hz to 63Hz
- Input Current Rated: 0.8A Max
- Output Voltage Rating: 24V DC
- Output Current Range: 1A
- Output Connection Type: 2.1mm x 5.5mm x 12mm Centre Positive — Straight
- Total Output Regulation: 5%
- Line and Load Regulation: +2%
- Ripple & Noise: 200mVp-p
- Efficiency: 86.2% Min
- Over Current Protection: Self-recovery
- Short-Circuit Protection: Self-recovery
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -20°C to +80°C
- Operating Humidity: 10% to 90%
- Storage Humidity: 5% to 95%
- Size: Max. 74.2mm L x 43.2mm W x 29mm H
- Weight: 156g
- Safety Standard: CE
- EMI Standard: ENE to0-32
- Hi-Pot Test: 3000V AC 10mA 1min
- Leakage Current: 0.25mA Max
- MTBF: 100,000 Hours
- Regulator Type: Switched Mode Power Supply
Buy the Multicomp 24W EU Wall Plug Adapter – Reliable 24V Power Supply for Industrial Applications
Order the Multicomp 24W EU Wall Plug Adapter today for a dependable 24V DC power supply capable of handling your industrial and electronic needs. With a compact design, high efficiency of at least 86.2%, CE approval, RoHS compliance, and built-in protections against overcurrent and short circuits, this power adapter ensures safe and consistent performance. Easy to install with a straightforward straight plug, it's ideal for various devices requiring reliable power, offering durability and efficiency for professional and industrial environments.
Buy Multicomp 24W EU Wall Plug Adapter now and experience unmatched reliability and performance in your electronic and industrial projects.
