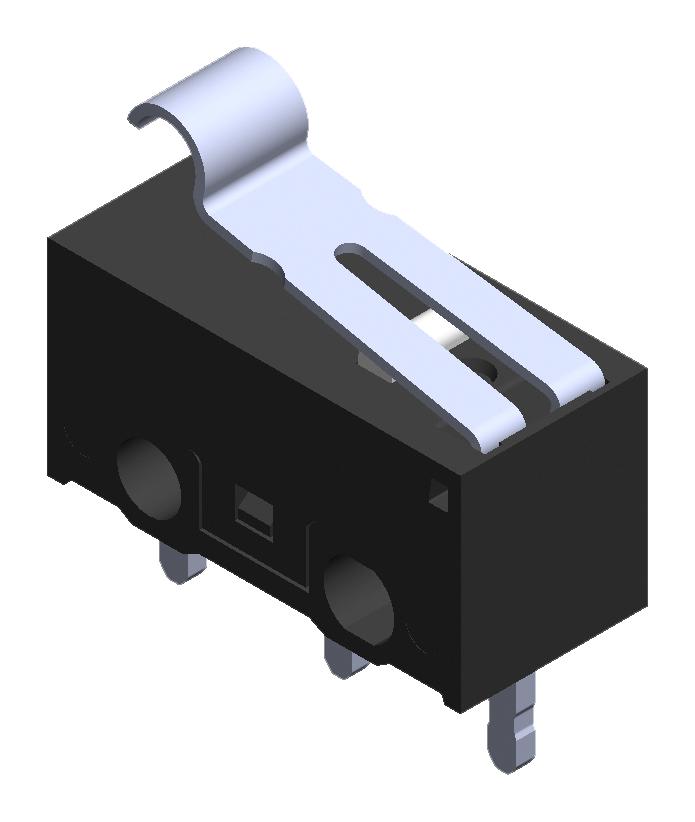

MULTICOMP PRO MP005565 Microswitch
This through-hole snap-action microswitch features high reliability, long operating life, and complies with RoHS standards. Suitable for applications like mice, projectors, communication equipment, security systems, electronic devices, and household appliances, it provides precise switching with contact ratings up to 3A at 125V AC and 0.1A at 30V DC. The switch offers various actuator types including hinge levers, bent levers, pin plungers, and simulated rollers, with operating forces ranging from 26gf to 40gf and durable mechanical and electrical life cycles exceeding 8,000 to 1,000,000 cycles depending on model. It maintains excellent insulation resistance and dielectric strength, ensuring safe and consistent operation in diverse environments.
MULTICOMP PRO MP005565 Microswitch Specifications:
- Contact Rating: 3A at 125V AC, 0.1A at 30V DC
- Electrical Durability: 8,000 cycles MIN.
- Mechanical Durability: 1,000,000 cycles MIN.
- Contact Resistance: 100mΩ MAX.
- Insulation Resistance: 100MΩ MIN.
- Dielectric Strength: AC 1500V 1 minute between current-carrying parts and ground, AC 1500V 1 minute between terminals
- Operating Temperature: -25°C to +75°C
- Operating Force: 26gf to 40gf depending on actuator
- Release Force: 2gf (0.02N) MIN.
- Overtravel: 0.20 to 0.55mm MIN.
- Movement Differential: 0.20 to 0.50mm MAX.
- Operating Position: ~6.9 to 10.2mm depending on model
- Short circuit protection with various actuator options including hinge, bent lever, pin plunger, and simulated roller
- RoHS Compliant, UL/CSA certified
- Suitable for security, communication, household appliances, and electronic equipment
Buy the Multicomp Series Microswitch: 3A Contact Rating for Reliable Switching MP005565
Order the reliable microswitch MP005565 online today to ensure your devices operate with precise switching and long lifespan. It features various actuator options including hinge and roller styles, with high durability, RoHS compliance, and excellent electrical performance. Perfect for electronic, security, and household appliances, this switch supports seamless integration, offers robust contact ratings, and withstands thousands of operational cycles. Enhance your project by purchasing this quality microswitch online now for immediate delivery, ensuring dependable operation in all your industrial and consumer applications.
Buy Multicomp Series Microswitch MP005565 now and experience unmatched reliability and performance for your electronic and household applications.
