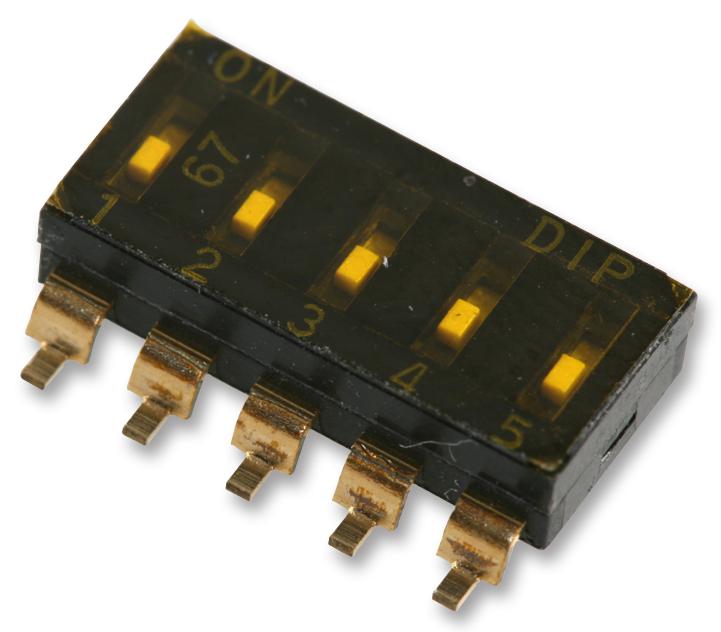

MULTICOMP PRO MCEMR05T End Stackable DIP Switch
The Multicomp Pro MCEMR series are end stackable DIP switches designed for manual electric switching in various electronic applications. These switches feature a single-pole single-throw (SPST-NO) contact configuration with a switching capacity of 25mA at 24VDC. Available in 2, 3, 4, 5, 6, 7, 8, 9, 10, and 12-position variants, they have a recessed actuator style and an operating force of 1000gf. Suitable for industrial, power management, automation, and process control applications, these switches are rated with high customer satisfaction. Each unit is backed by a 12-month limited warranty, although delivery times may fluctuate due to high demand.
MULTICOMP PRO MCEMR05T End Stackable DIP Switch Specifications:
- Contact Arrangement: SPST
- No. of Poles: 2, 3, 4, 5, 6, 7, 8, 9, 10, 12
- Contact Rating: 25mA, 24VDC
- Contact Resistance: 100mΩ Max.
- Insulation Resistance: > 100MΩ Min. 500V DC
- Dielectric Strength: 500V AC/1 minute
- Operating Force: 1000gf max.
- Travel: Imm
- Operating Life: 2,000 cycles
- Operating Temperature: 1-20°C to +85°C
- Storage Temperature: -40°C to +85°C
- Dimensions: Vary by model, approximate length from 4.98mm to 30.38mm, width from 2.54mm to 27.94mm
- Recessed actuator, slide type, black/white color, surface mount
- RoHS Compliant
Buy the Multicomp Reliable DIP Switch Series for Industrial Applications
Enhance your electronic control systems with the reliable and versatile Multicomp Pro MCEMR series DIP switches. Designed for manual electrical switching, these surface-mount switches feature recessed actuators, multiple positions from 2 to 12, and a robust 25mA at 24VDC rating. Ideal for industrial automation, power management, and process control, they offer durability, high contact reliability, and easy installation. Purchase online today to ensure precise switching and dependable performance for your electronic projects with quick delivery and excellent quality.
Buy Multicomp Pro MCEMR series DIP switches now and experience reliable switching performance for automation and control projects.
