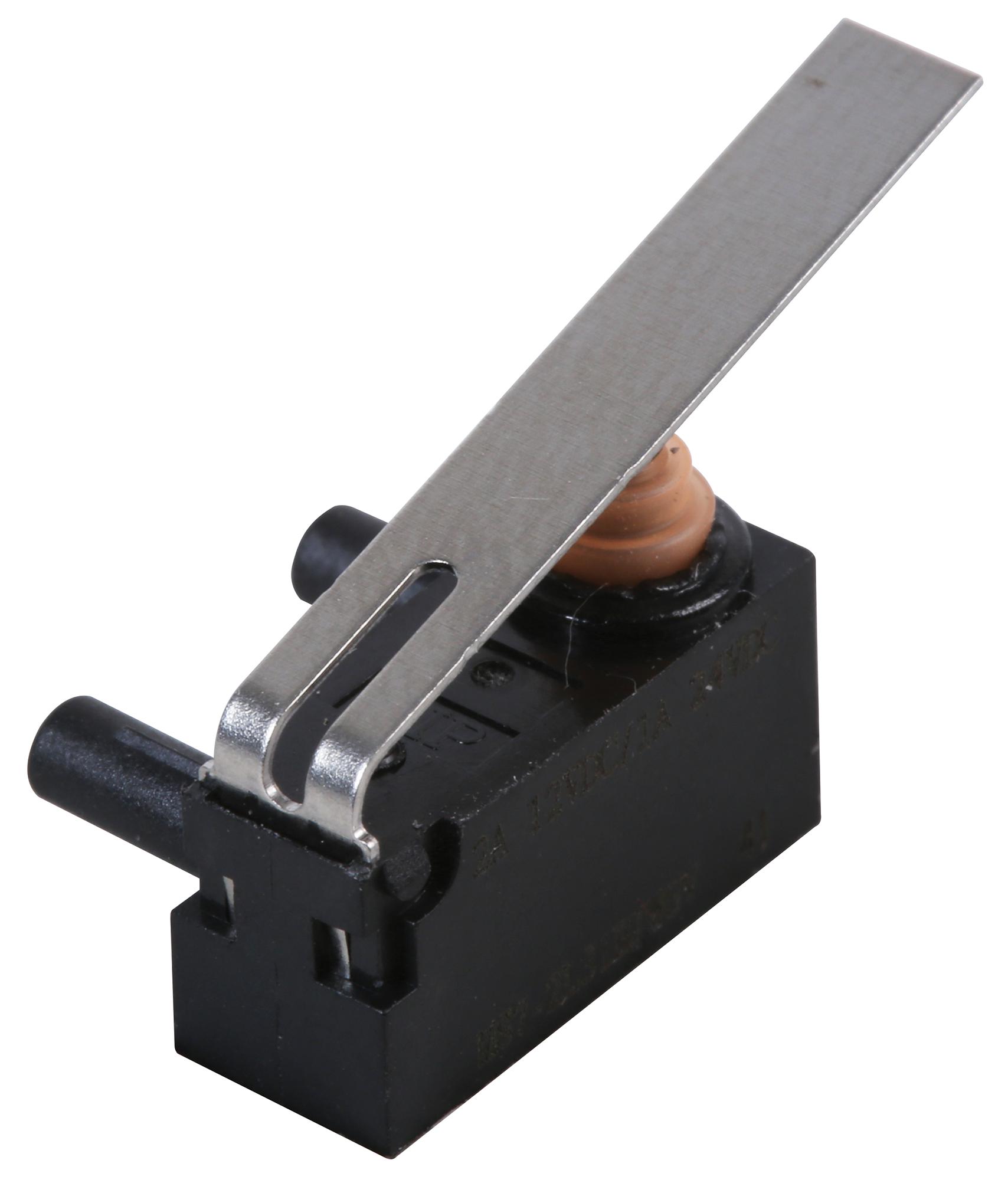

MULTICOMP PRO MP006216 Industrial Microswitch
This series of snap action microswitches features a variety of actuator options including pin plunger, long hinge lever, and simulated roller lever, suitable for industrial automation, household appliances, and automotive applications. Designed for high durability, these switches offer electrical ratings up to 2A at 12V DC, with mechanical durability of over 1 million cycles. They are sealed IP67, operate from -40°C to +85°C, and support through-hole or PC board mounting options, ensuring reliable performance in demanding environments.
MULTICOMP PRO MP006216 Industrial Microswitch Specifications:
- Contact Rating: 2A at 12V DC / 1A at 24V DC
- Mechanical Durability: 1,000,000 cycles minimum
- Electrical Durability: 100,000 cycles minimum
- Contact Resistance: 150mΩ Max
- Insulation Resistance: 100MΩ Min at 500V DC
- Dielectric Strength: 600V AC between terminals
- Operating Temperature: -40°C to +85°C
- Sealed IP67
- Actuator options: Pin Plunger, Long Hinge Lever, Simulated Roller Lever
- Mounting: Through-hole or PC board terminals
- Rated Voltage: Up to 12V DC, Resistive Load: 2A
- Overtravel: Min 1.4mm to 2.5mm depending on model
- Flow Force: 50gf to 122gf depending on model
- Contact Form: SPDT, with variants for different actuator configurations
- Dimensions vary, typical length approx. 5.1mm to 41mm based on model
Buy the Multicomp Pro MP006216 – Reliable Microswitch for Industrial Applications
Purchase the Multicomp Pro MP006216 microswitch online today and ensure your automation and control systems are equipped with reliable, durable switches. Featuring high electrical ratings and IP67 sealing, these microswitches are suitable for demanding environments. They offer multiple actuator options such as pin plunger and lever, ideal for automotive, household, and industrial applications. With a mechanical lifespan of over 1 million cycles, order now to enjoy fast shipping, competitive pricing, and the confidence of sourcing from a trusted supplier for your projects.
Order your Multicomp Pro MP006216 series microswitch today and enhance your industrial projects with dependable, high-performance switching solutions.
