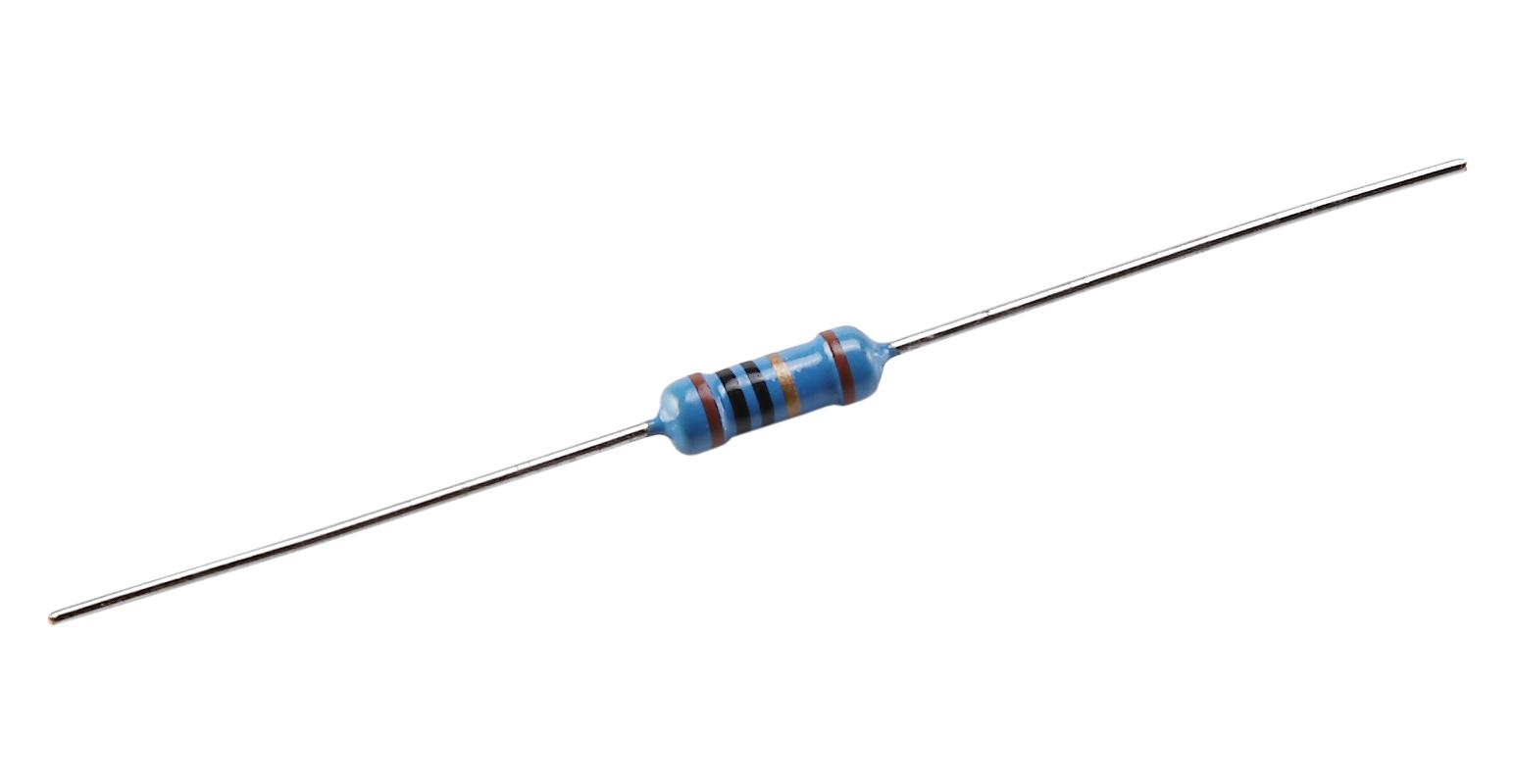

MULTICOMP PRO MP006398 Precision Metal Film Resistor
High-precision axial leaded metal film resistor with 1/2W power rating, available in various resistance values including 9.1K, 91K, and 9.1M. Designed for applications requiring excellent stability, high accuracy, and superior temperature coefficient, ideal for electronic circuits, telecommunication, and medical equipment. Features RoHS compliance, dielectric withstand voltage up to 500V, and operating temperature range from -55°C to +155°C. The resistor offers reliable ohmic contact, robust construction, and precise resistance matching, making it suitable for sensitive electronic projects and industrial applications.
MULTICOMP PRO MP006398 Precision Metal Film Resistor Specifications:
- Power Rating at 70°C: 1/2W
- Resistance Range: 0.1Ω to 9.1MΩ
- Operating Temperature Range: -55°C to +155°C
- Max. Voltage: 350V, Max. Overload Voltage: 500V
- Dielectric Withstanding Voltage: 500V
- Resistance Tolerance: ±1%
- Temperature Coefficient: +100PPM/°C
- Resistance Value at Room Temp: 9.1K to 9.1MΩ
- Solderability: 95% min. coverage at 260°C for 240 sec.
- Resistance to Solvents: No deterioration of coatings/markings
- Endurance Test: +1.5%/+0.050 at 70°C for 1000 hrs
- Insulation Resistance: >10000MΩ
- Short Time Overload: +(0.25%+0.050) at 2.5×RCWV for 5 sec.
- Temperature Cycling: -55°C to +155°C, 5 cycles
- Terminal Strength: Tensile 2-2.5kg
- Pulse Overload: +(0.75%+0.050) at 4×RCWV for 10,000 cycles
Buy the Buy Multicomp Precision Resistors Part Number MP006398 Online
Discover the reliable high-precision metal film resistor designed for demanding electronic applications. Featuring 1/2W power rating, excellent stability, and a wide resistance range, it is ideal for telecommunication, medical equipment, and industrial use. RoHS compliant and with a temperature coefficient of +100PPM/°C, this resistor ensures consistent performance over a wide temperature range from -55°C to +155°C. Easy to incorporate into your designs, it provides excellent ohmic contact, robust construction, and proven durability in high-reliability environments. Purchase online today for quality and precision you can trust.
Get Multicomp MP006398 today—built for precision and high stability in electronic circuits.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP006398?
You can click on the BUY or RFQ button to purchase MP006398 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP006398?
You can download the MP006398 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP006398?
MULTICOMP PRO
