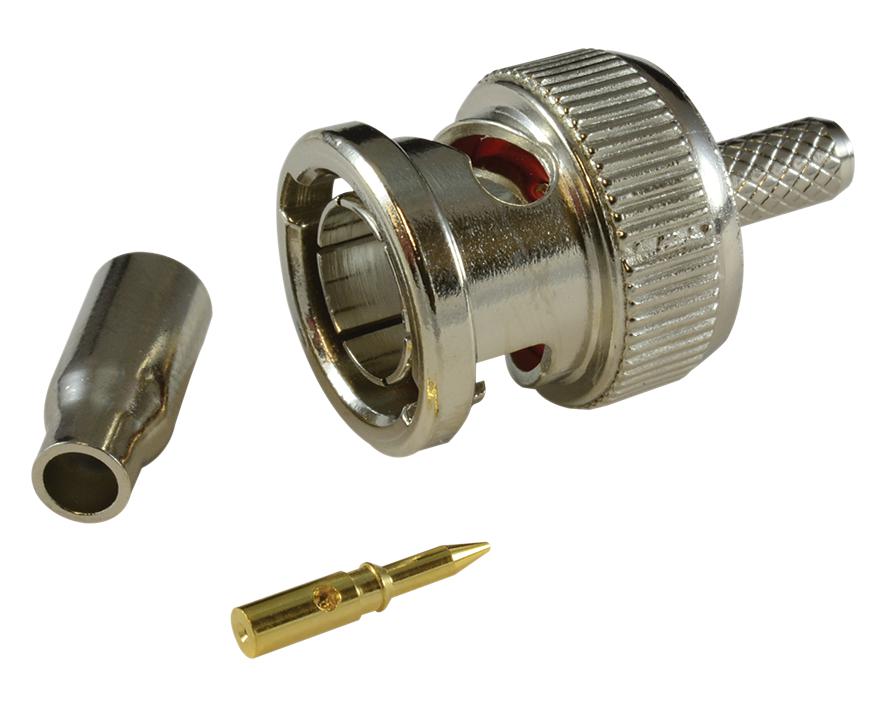

MULTICOMP PRO MP13101RG179 BNC Connector
The RG179 BNC straight plug connector from Multicomp Pro is designed for RG179 coaxial cables, featuring a gold-plated center contact soldered or crimped onto the inner conductor. It includes a crimped ferrule for secure attachment, making it lightweight and ideal for high-frequency applications up to 11 GHz. Suitable for DC to 4 GHz, it minimizes signal reflection and ensures reliable performance in RF communication, computer networking, and audio systems. The connector has a nickel-plated brass body, PTFE insulation, and complies with MIL-STD-348 A standards, ensuring durability and consistent quality in industrial applications.
MULTICOMP PRO MP13101RG179 BNC Connector Specifications:
- Connector Type: BNC Straight Plug
- Impedance: 75Ω
- Frequency Max: 11GHz
- Coaxial Cable Types: RG179
- Contact Material: Brass
- Contact Plating: Gold Plated
- Connector Mounting: Cable Mount
- Material (Body): Brass
- Finish (Body): Nickel Min. 100"
- Insulation: PTFE
- Ferrule Material: Brass
- Cable Compatibility: RG179 coaxial cable
- Standards: MIL-STD-348 A
- Dimensions: Millimeters (Inches): Length approximately 14.8 + 03 (0.583), Diameter 8.125 (0.492), Stripping dimension: 23.8 (0.929)
Buy the Multicomp Pro MP-13-10-1 U+2013 Reliable BNC Connectors for Industrial Applications
Purchase the Multicomp Pro RG179 BNC connector series online today for secure, high-performance RF and coaxial cable connections. Designed for reliable operation up to 11 GHz, this lightweight along with durable nickel-plated brass body and PTFE insulation ensures optimal signal integrity. Suitable for applications in industrial, telecommunications, and data systems, the connector's crimp and solder options provide versatile installation methods. Enjoy fast delivery, trusted quality, and excellent compatibility with RG179 cables for your high-frequency or networking projects.
Order your Multicomp Series MP-13-10-1 RG179 BNC connector today and ensure robust high-frequency connections for your RF, networking, or audio projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP13101RG179?
You can click on the BUY or RFQ button to purchase MP13101RG179 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP13101RG179?
You can download the MP13101RG179 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP13101RG179?
MULTICOMP PRO
