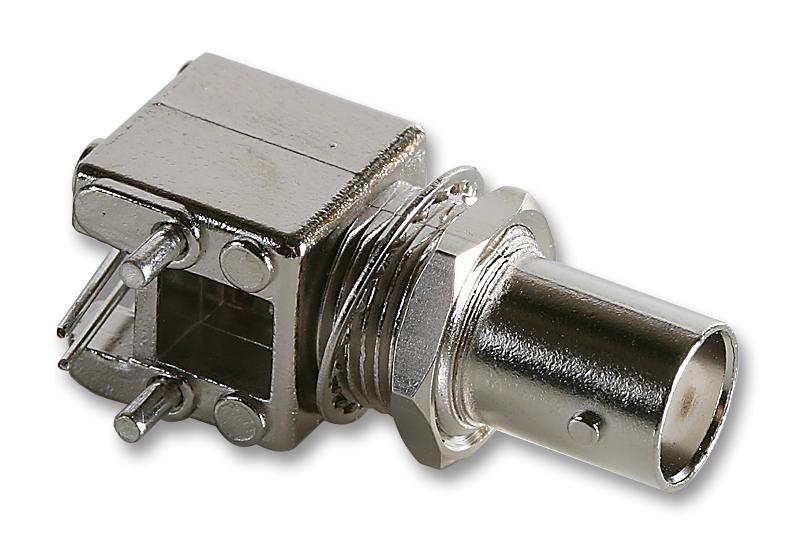

MULTICOMP PRO MP13603DGZ BNC Coaxial Connector
The 13-60-3 DGZ is a right-angle BNC coaxial jack designed for RF communications, featuring gold-plated phosphor bronze contacts and polypropylene insulation. It supports a maximum frequency of 1 GHz, ensuring reliable signal transfer. Manufactured with a durable metal housing and solder-type coaxial termination, it withstands 500 mating cycles and maintains a minimum insulation resistance of 5,000 MΩ. Ideal for compact, high-frequency applications, it offers stability and robust performance. This connector ensures secure connections, high durability, and excellent electrical performance, making it a preferred choice for RF and broadcast equipment.
MULTICOMP PRO MP13603DGZ BNC Coaxial Connector Specifications:
- Electrical: Dielectric Withstanding Voltage: 1500VRMs, Insulation Resistance: 5000MΩ Min., Frequency Range: up to 1 GHz
- Material: Zinc Alloy, Nickel Plated body; Phosphor Bronze, Gold Plated contacts; Copper wire, Tin Plated solder pins; Polypropylene insulation; Brass, Tin Plated lock washer, Nut
- Mechanical: Mating / Unmating: 500 cycles
- Environmental: Operating Temperature: -40°C to +60°C, Thermal Shock and Physical Shock: MIL-STD-202, Methods 107 and 204
- Dimensions: Millimetres - Length: 20.7±0.368, Width: 14.44, Mounting Hole: 3.5, In Inches - Length: 0.815±0.014, Width: 0.567, Hole: 0.138
- RoHS Compliant
Buy the Buy Multicomp Right Angle BNC Coaxial Jack Part Number MP13603DGZ Online
Procure the high-quality Multicomp Series MP13603DGZ right-angle BNC coaxial jack online to enhance your RF communication projects. Featuring gold-plated contacts and polypropylene insulation, this connector supports up to 1 GHz, ensuring excellent signal integrity. With a robust metal housing, solder-type termination, and 500 mating cycles, it ensures durable, reliable connections for professional applications. Efficiently upgrade your equipment with this reliable BNC connector that guarantees superior performance, ease of installation, and compatibility with high-frequency systems. Trusted by professionals worldwide for its quality and durability.
Order your Multicomp Series MP13603DGZ right-angle BNC coaxial jack today and upgrade your RF communication systems with reliable, durable connectors.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP13603DGZ?
You can click on the BUY or RFQ button to purchase MP13603DGZ from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP13603DGZ?
You can download the MP13603DGZ datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP13603DGZ?
MULTICOMP PRO
