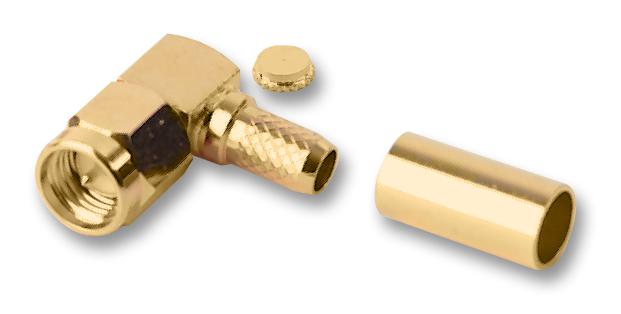

MULTICOMP PRO MP1902F4TGG RF Connector
This SMA right-angle plug from Multicomp Pro is a durable, high-quality RF connector designed for reliable antenna and communication system connections. Crafted with gold-plated brass and PTFE insulation, it ensures excellent signal transmission across DC to 12.4 GHz with a maximum voltage of 500V. The connector features easy crimp attachment for RG-58U cables, in accordance with MIL-STD-348A standards, and can operate efficiently between -55°C to +165°C. Ideal for compact, high-performance RF applications in varied electronic and communication projects.
MULTICOMP PRO MP1902F4TGG RF Connector Specifications:
- Frequency Range: DC to 12.4 GHz
- Nominal Impedance: 50Ω
- Voltage Rating: 500V Max.
- VSWR: 1.398 Max.
- Shell Material: Brass, 3u" Gold Plated
- Body Material: Brass, 3u" Gold Plated
- Center Contact: Brass, 50u" Gold Plated
- Crimp Ferrule: Brass, Gold Plated
- Insulation: PTFE
- Washer Material: Stainless Steel
- Gasket Material: Silicone, Red
- Cap Material: Brass, 3u" Gold Plated
- Interface Standard: MIL-STD-348A
- Cable Type: RG-58U or Equivalent
- Cable Attachment: Outer Crimp; Inner Solder
- Recommended Coupling Torque: 3 to 5 in-lbs
- Crimp Size: Ferrule 5.5 (.216) Hex Crimp Tool
- Temperature Range: -55°C to +165°C
Buy the Buy Multicomp SMA Right Angle Plug Part Number MP1902F4TGG Online
Enhance your electronic setups with the Multicomp Pro SMA right-angle connector, featuring gold-plated brass, exceptional frequency response up to 12.4 GHz, and robust thermal range from -55°C to +165°C. Designed for quick crimp attachment to RG-58U cables, it complies with MIL-STD-348A and provides superior signal integrity for high-frequency communication and RF applications. Trust its durability and precise engineering to improve your project’s performance. Purchase online today and enjoy fast delivery and reliable sourcing.
Order your Multicomp Series MP1902F4TGG SMA right-angle connector today and ensure reliable RF and antenna connections for your electronic projects.
