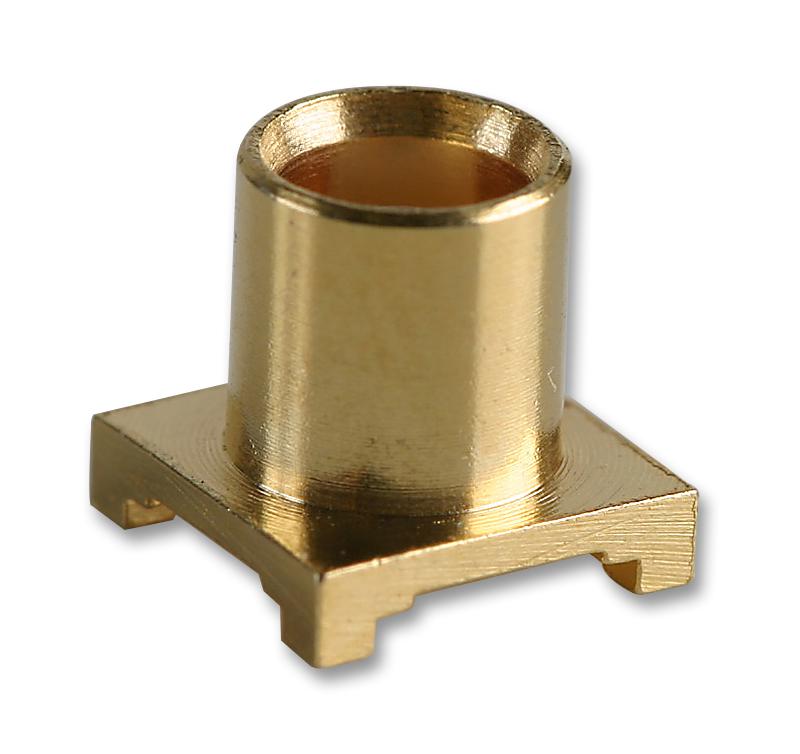

MULTICOMP PRO MP27053TGG RF Coaxial Connector
The MCX Straight Jack is a surface-mount coaxial connector designed for high-frequency applications up to 6GHz. Made from durable brass and beryllium copper with gold plating, it features a solder mounting style and is suitable for PC board mounting. The connector provides up to 500 mating cycles, ensuring reliability in secure connections. Its impedance is 50 ohms, and it has a PTFE insulator for optimal signal integrity. The MCX connector interface adheres to CECC 22220 standards, making it suitable for RF and microwave device connections requiring consistent performance and durability.
MULTICOMP PRO MP27053TGG RF Coaxial Connector Specifications:
- Connector Type: MCX Coaxial
- Body Style: Straight Jack
- Termination: Solder
- Impedance: 50 Ohms
- Frequency Max: 6GHz
- Mounting Type: PC Board
- No. of Mating Cycles: 500
- Operating Temperature Max: 155°C
- Bodies: Brass per JIS-C3604
- Centre Contact: Beryllium Copper per ASTM B196 UNS C17300, Gold Plated
- Insulation: PTFE per ASTM D1457 and ASTM D1710
- Connector interface: CECC 22220 standards
- Part material: Brass body, Beryllium Copper contact, PTFE insulator
- Finish: Gold-plated contacts
- Dimensions: Millimetres, detailed dimensions include 4.44 mm, 5.11 mm, 5.08 mm, 5.87 mm, and square sizes for mounting
- Part to be clean and free of burrs
Buy the Multicomp Series MCX RF: MP27053TGG
Order the MCX Straight Jack connector online and enhance your RF and microwave projects with reliable, durable, and high-performance coaxial connections. This surface-mount connector offers excellent signal integrity at frequencies up to 6GHz, made from high-quality brass and beryllium copper with gold plating for durability and corrosion resistance. It supports up to 500 mating cycles and is compliant with strict standards, ensuring consistent performance in professional and industrial environments. Secure your supply chain today with our fast and trusted online purchasing options.
Buy Multicomp Series MCX RF MP27053TGG now and experience unmatched reliability and high-frequency performance for your RF applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP27053TGG?
You can click on the BUY or RFQ button to purchase MP27053TGG from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP27053TGG?
You can download the MP27053TGG datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP27053TGG?
MULTICOMP PRO
