MULTICOMP-PRO MP3701M6TGG RF Coaxial Connector
The 37-01M-6-TGG is a high-quality crimp MMCX straight plug suitable for RF applications with RG178U coaxial cables. It features a durable brass body and a gold plating for reliable performance. The connector operates from DC to 6 GHz, with a maximum VSWR of 1.22, and can withstand temperatures from -55°C to 155°C. It has a PTFE insulator and a precise crimp ferrule, ensuring excellent electrical and mechanical integrity for industrial, communication, and testing equipment. Easy to install and highly durable, this connector ensures low signal loss and stable connectivity in demanding environments.
MULTICOMP-PRO MP3701M6TGG RF Coaxial Connector Specifications:
- Frequency Range: DC to 6 GHz
- Max. Working Voltage: 170 V
- Proof Voltage: 500 V
- Max. VSWR: 1.22
- Operating Temperature Range: -55°C to 155°C
- Body Material: Brass per JIS-C3604
- Centre Contact Material: Beryllium copper per ASTM B196 UNS C17300
- Insulation Material: PTFE per ASTM D1457 and ASTM D1710
- Crimp Ferrule Material: Brass per JIS-C2700
- Connector Type: MMCX Straight Plug
- Impedance: 50 Ohms
- Color: Gold-plated components for enhanced conductivity and corrosion resistance
- Dimensions: Specific to model MP-37-01M-6-TGG, compatible with RG178U cables, with stripping dimension approximately 1.05 mm x 4.70 mm
- RoHS Compliant

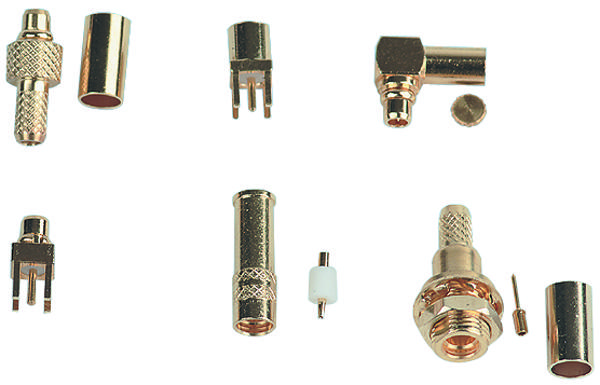

Buy the Multicomp MMCX – Reliable RF Coaxial Connectors for Industrial Applications
Order the Multicomp MMCX straight plug now for your RF coaxial setups. Designed for reliability and high-frequency stability up to 6 GHz, this connector features gold plating, a brass body, and PTFE insulation for excellent performance. It is easy to install with a crimp ferrule and ensures low signal loss with a maximum VSWR of 1.22. Suitable for industrial, communication, and testing applications, it operates over a broad temperature range from -55°C to 155°C. Purchase online today for fast delivery and secure connections.
Get Multicomp MMCX straight plug today—built for precision, durability, and high-frequency performance in demanding environments.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP3701M6TGG?
You can click on the BUY or RFQ button to purchase MP3701M6TGG from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP3701M6TGG?
You can download the MP3701M6TGG datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP3701M6TGG?
MULTICOMP-PRO
