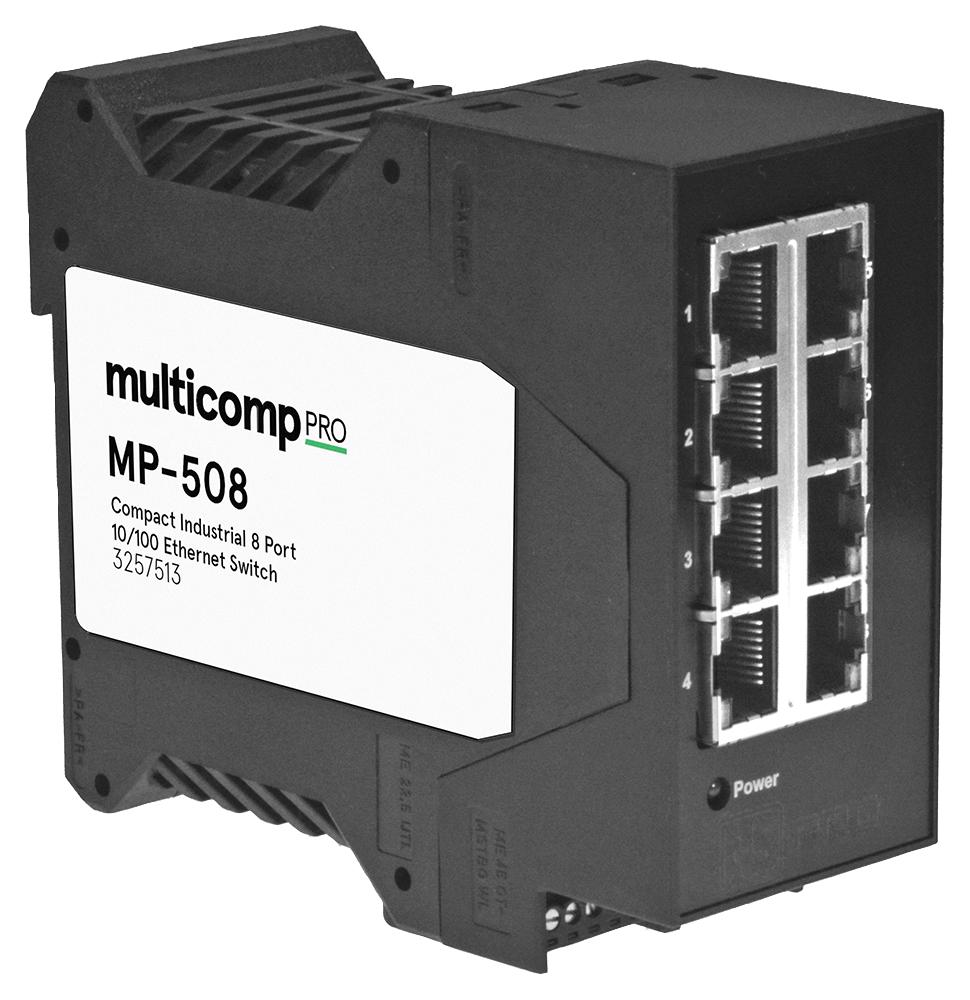

MULTICOMP PRO MP508 Ethernet Switch
This 8-port unmanaged industrial Ethernet switch features a compact design with DIN rail-mounting capability, making it ideal for industrial automation setups. It supports 10/100Mbps speeds with auto-sensing and crossover auto sensing (Auto MDIX) on all ports. The switch operates reliably over a wide temperature range of -40°C to +80°C and includes dual power inputs (+5V to +30V DC) with reverse polarity protection. Its rugged IP-20 rated polyamide housing provides magnetic isolation, ensuring secure connections in challenging environments. Easy installation and no software required streamline integration into automation networks.
MULTICOMP PRO MP508 Ethernet Switch Specifications:
- Power Consumption: Max 1.5 Watts, 300mA @ +5V DC, 50mA @ +30V DC
- Power Supply Input: Unregulated +5V to +30V DC, reverse polarity protection
- Isolation: 1500V magnetically isolated from Ethernet ports
- Operating Temperature: -40°C to +80°C
- Storage Temperature: -40°F to +176°F
- Relative Humidity: 5-95%, non-condensing
- Ethernet Ports: 8 x RJ45, 10/100Mbps, autosensing crossover auto sensing (Auto MDIX)
- Protection: 1500V magnetic isolation between ports
- Housing: IP-20 rated, non-conducting polyamide case
- Screw Terminals: 3.5mm pitch, #22 - #14, wire gauge #26 - #16 AWG, 0.14mm? - 1.3mm?
- Dimensions: Compact size suitable for DIN rail mounting, detailed dimensions in millimeters
Buy the Buy Multicomp Pro Ethernet Switch Part Number MP508 Online
Secure your industrial automation network with the reliable Multicomp Pro Ethernet Switch MP508. Featuring 8 unmanaged 10/100Mbps ports, DIN rail mounting, dual power inputs, and rugged IP-20 housing, this switch is designed for challenging environments. Easy to install with no software required, it ensures fast, secure connectivity. Enhance your control system's stability and expandability by purchasing this durable Ethernet switch online. Trust in its high-quality design for seamless industrial Ethernet communication in factory or process automation applications.
Order your Multicomp Pro Ethernet Switch MP508 today and enhance your industrial network with reliable, DIN-rail mountable connectivity.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP508?
You can click on the BUY or RFQ button to purchase MP508 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP508?
You can download the MP508 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP508?
MULTICOMP PRO
