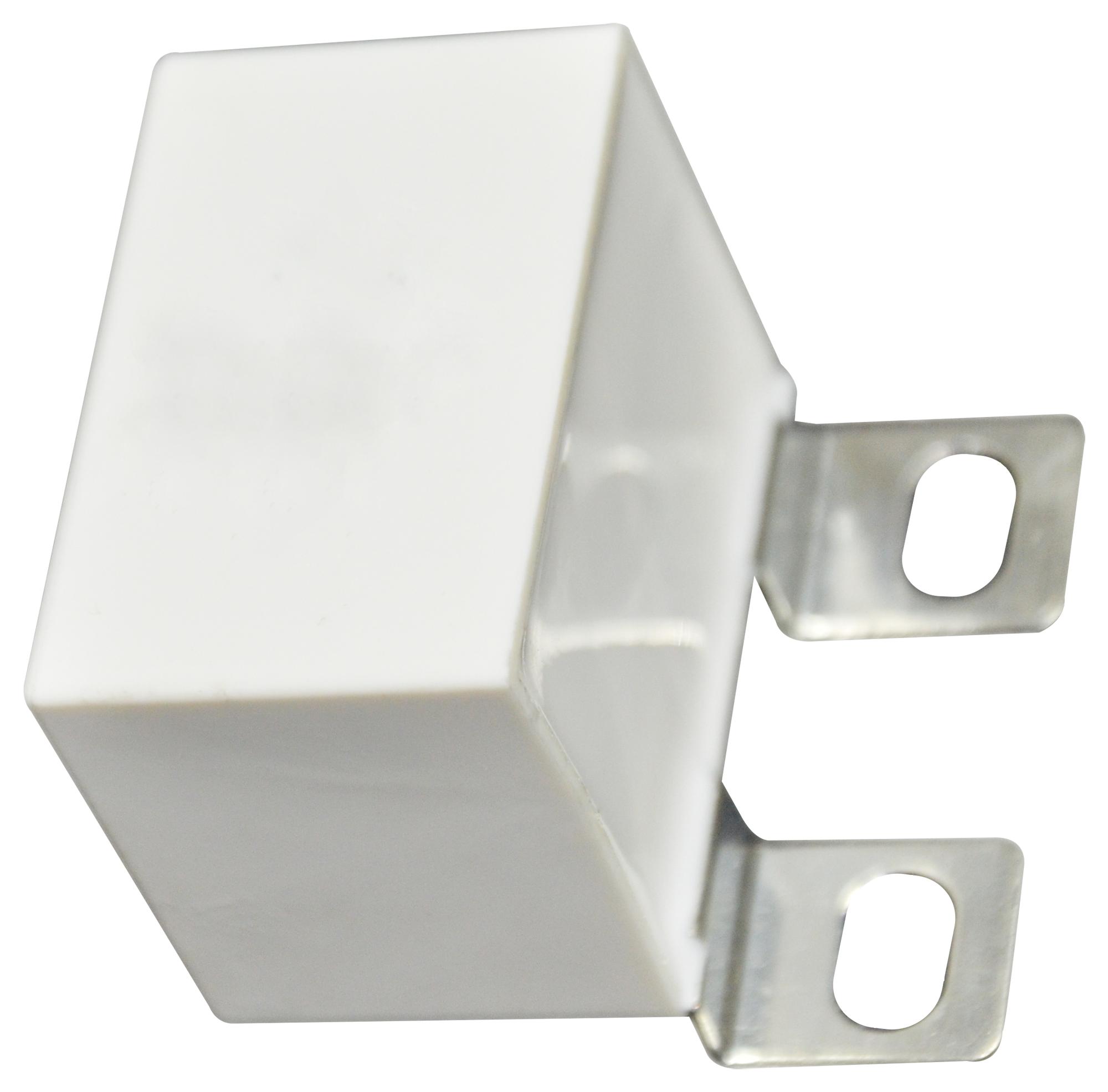

MULTICOMP PRO MPAPB1K2P47J0M6 Snubber Capacitor
The Snubber Capacitors for IGBT from the MPAPB Series are high-voltage, high-frequency components designed for circuit protection and energy dissipation. They feature low loss, minimal temperature rise, and flame-resistant properties, making them ideal for high-voltage switching applications. Rated at 1200V DC with capacitance options from 0.47uF to 4.7uF, these screw-mounted capacitors comply with IEC 61071 standards and offer excellent insulation resistance and reliability. Suitable for various industrial electronic circuits requiring robust snubber solutions, they ensure enhanced system stability and performance.
MULTICOMP PRO MPAPB1K2P47J0M6 Snubber Capacitor Specifications:
- Rated Voltage: 1200V DC
- Capacitance Range: 0.47uF to 4.7uF
- Capacitance Tolerance: ±5%(J)
- Operating Temperature Range: -40°C to +85°C
- Climatic Category: 40/85/56
- Insulation Resistance: 2,100,000 MΩ (below 0.33uF), 30,000 s (above 0.33uF)
- Dissipation Factor: ≤0.0005 (1kHz, 20°C)
- Voltage Proof: 1.6 Un (10s)
- Expected Lifetime: 100,000 hours @ Un, Operating temp 70°C
- Dimensions: 65x85 mm, screw mount
- Standards: GB/T17702 (IEC 61071)
- Climatic Category: 40/85/56
- Temperature Rating: -40°C to +85°C
Buy the ACME Series Snubber Capacitors: MPAPB1K2P47J0M6
Order the MPAPB Series Snubber Capacitor today for high-voltage applications requiring reliable circuit protection. With a rated voltage of 1200V DC and capacitance options from 0.47uF to 4.7uF, these screw-mounted, flame-resistant components are designed for high-frequency circuits and ensure long-lasting performance. Their low dissipation factor and high insulation resistance make them ideal for industrial electronic systems. Buy online now to improve your circuit stability with trusted, high-quality snubber solutions that meet industry standards and deliver exceptional durability and safety.
Buy ACME series MPAPB1K2P47J0M6 snubber capacitor now and enhance your high-voltage circuit reliability with premium energy dissipation and flame-resistant features.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MPAPB1K2P47J0M6?
You can click on the BUY or RFQ button to purchase MPAPB1K2P47J0M6 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MPAPB1K2P47J0M6?
You can download the MPAPB1K2P47J0M6 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MPAPB1K2P47J0M6?
MULTICOMP PRO
