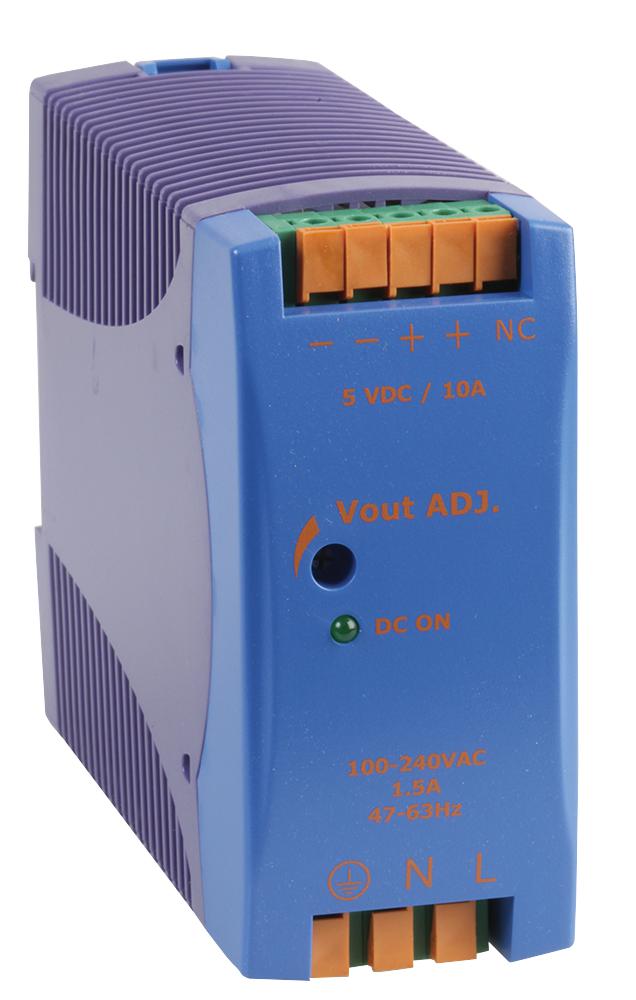

MULTICOMP PRO MPDRAN6005 DIN Rail Power Supply
The MPDRAN6005 is a reliable DIN rail-mountable power supply compatible with industrial automation and control systems. It offers universal AC input from 85V to 264V, providing stable 5V DC output at 10A with up to 79% efficiency. Designed for high-demand environments, it features short circuit protection, internal input filtering, and robust insulation with input-output isolation up to 3,000V. Its compact metal case measures 90mm x 40.5mm x 114mm, ensuring easy installation. Suitable for a wide temperature range from -40°C to +71°C, it supports convection cooling and meets various safety standards including UL and EN certifications.
MULTICOMP PRO MPDRAN6005 DIN Rail Power Supply Specifications:
- Input Voltage: 85-264VAC, 90-375VDC
- Output Voltage: 5V DC
- Output Current: 10A
- Efficiency: up to 79%
- Isolation Voltage: Input-FG 1,500VAC, Output-FG 500VAC
- Dimensions: 90mm x 40.5mm x 114mm
- Operating Temperature: -40°C to +71°C
- Protection: Short circuit, over voltage, over current, over temperature
- Cooling: Free air convection, 25mm clearance on all sides
- Certifications: UL 508, UL 60950-1, EN 62368-1, CE
Buy the Multicomp MPDRAN6005 – Reliable Power Supply for Industrial Applications
Upgrade your industrial automation with the Multicomp power supply MPDRAN6005, featuring universal input, high efficiency, and reliable short circuit protection. Its compact size and sturdy design make it easy to install on DIN rails, providing a stable 5V DC output at 10A to power your control systems, sensors, and automation equipment. Ideal for harsh environments, it supports convection cooling with a wide operating temperature range. Purchase online now for dependable power solutions backed by safety standards and a three-year warranty.
Order your Multicomp Series MPDRAN6005 power supply today and ensure dependable performance in your industrial control systems.
