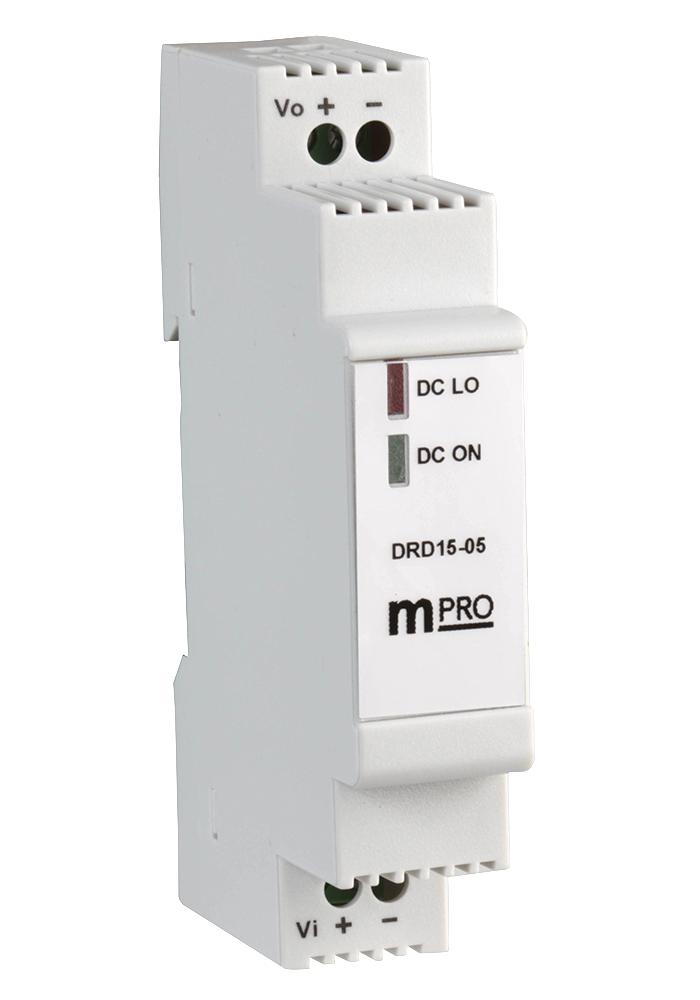

MULTICOMP-PRO MPDRD1505 DC Power Supply
This 15W DC to DC power supply showcases a compact, low-profile design ideal for industrial environments. It features a wide input range of 9V to 36V DC, short circuit protection, internal input filtering, remote ON/OFF, and robust insulation of 1500V DC between input and output. The unit operates reliably within -40°C to +71°C, with high efficiency up to 83%. It complies with RoHS standards, and installation involves easy snap-on DIN rail mounting, making it suitable for automation and control applications requiring stable, efficient power conversion.
MULTICOMP-PRO MPDRD1505 DC Power Supply Specifications:
- Input Voltage Range: 9V to 36V DC
- Output Power: 15W
- Output Voltage Options: 3.3V, 5V, 12V, 15V, 24V (based on model)
- Isolation Voltage: 1500V DC
- Isolation Resistance: 100 MΩ at 500V DC
- Operating Temperature: -40°C to +71°C (derating over +51°C)
- Storage Temperature: -40°C to +85°C
- Line Regulation: ±1%
- Load Regulation: +4%
- Ripple & Noise: 100 mV BW=20 MHz
- Efficiency: Up to 83%
- Dimensions: 91 x 18 x 56.5 mm
- Cooling: Free air convection
- Mounting: Snap-on DIN rail (TS35/7.5 or TS35/15)
- Protection: Short circuit, over-voltage, surge, over-load
- Compliance: RoHS, UL 508, UL 60950-1, cUL US recognized, EN 61000-6-3, EN 55032
Buy the Multicomp Pro 15W – Reliable DC-DC Power Supply for Industrial Applications
Upgrade your industrial automation setup with this dependable 15W DC to DC power supply. Designed for DIN rail mounting, it offers a wide input range, high efficiency up to 83%, and robust protection features including short circuit, over-voltage, and surge protection. Its compact low-profile design ensures easy installation, while operating reliably from -40°C to +71°C. Ideal for control systems, automation, and manufacturing environments, this power supply guarantees stable power conversion for demanding industrial applications. Order online today for quick and secure delivery!
Buy Multicomp Pro 15W DC to DC Power Supply now and experience unmatched reliability and performance in your industrial automation projects.
