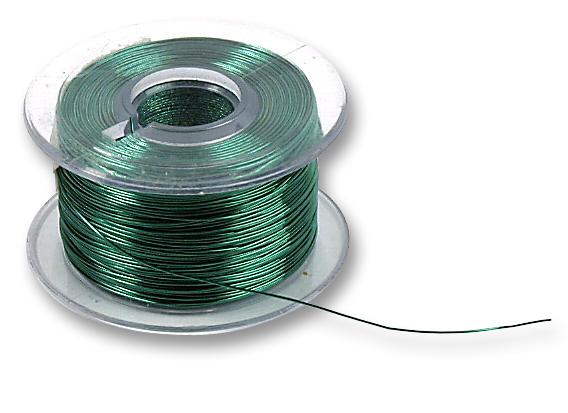

MULTICOMP-PRO MPRRPG105 Enameled Copper Wire
Solderable enameled copper wire coated with self-fluxing polyurethane, conforming to BS4520 Grade 2 standards. Ideal for prototype wiring, PCB track repairs, shorting links, and coil forming. The enamel is removable at around 400°C soldering temperature. Features include color coding for easy identification with options in copper-gold, green, and pink. The wire has a diameter of 0.15mm, insulation thickness of 0.012mm, resistance of 0.967Ω/m, and current rating of 82mA. Suitable for applications requiring temperatures up to +120°C and soldering temperatures between 400°C and 480°C.
MULTICOMP-PRO MPRRPG105 Enameled Copper Wire Specifications:
- Standard Wire Gauge: 38SWG
- Wire Diameter: 0.15mm
- Insulation Thickness: 0.012mm
- Coating: Grade 2
- Resistance: 0.967Ω/m typical
- Current Rating: 82mA
- Insulation Breakdown: 1,500Vrms
- Max. Continuous Temperature: +120°C
- Soldering Temperature: +400°C to +480°C
- Reel Length: approximately 38m
- Flammability: conforming to BS4520 Grade 2
- Coating Material: Self-fluxing polyurethane
- Color Options: Copper-gold, green, pink
- Toxic Vapour Emission: emitted during soldering; well ventilated area required
Buy the Multicomp Copper Enameled Wire – Reliable Enameled Copper for Industrial Applications
Purchase Multicomp enameled copper wire online today to ensure high-quality, easy solderability, and reliable insulation for your PCB repairs, prototypes, and coil projects. With a temperature rating up to +120°C and a resistance of 0.967Ω per meter, this wire features a self-fluxing polyurethane coating in multiple color options for easy identification. Each reel approximately 38 meters long includes copper-gold, green, or pink. A perfect choice for electronics technicians, hobbyists, and industrial users aiming for durability and precision in their wiring and coil forming needs.
Get Multicomp copper enameled wire today—built for precision in electronic repairs and coil forming applications.
