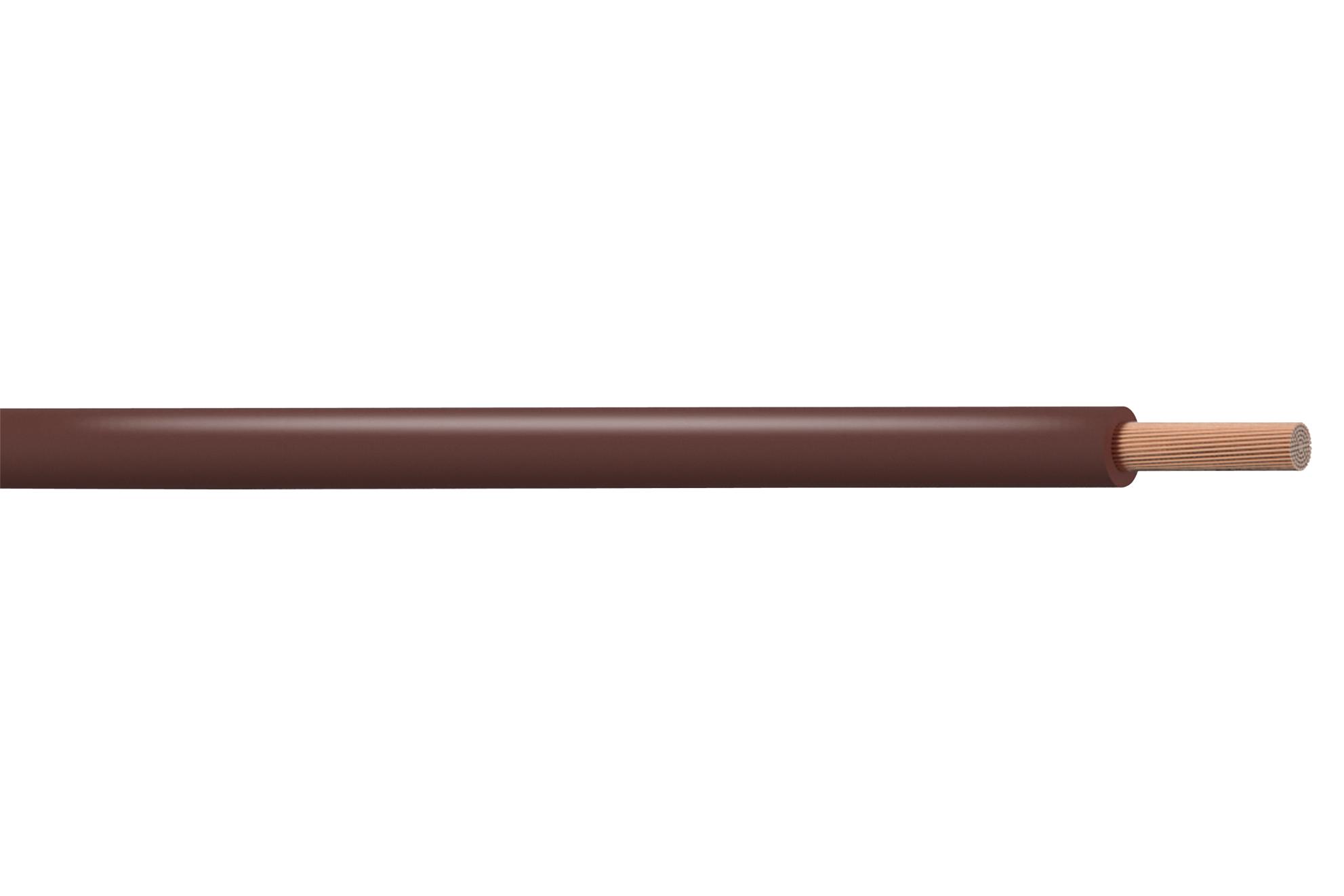

MULTICOMP PRO PP001205 Flexible PVC Equipment Wire
The PP001205 is a 100-meter length of tri-rated flexible equipment wire featuring a class 5 flexible copper conductor as per BS EN 60228 (formerly BS 6360). It has a PVC type TI3 insulation in accordance with BS EN 50363. This high-temperature, flame-retardant wire is suitable for switch control, relay, and instrumentation panels in power switchgear, as well as internal connections in rectifier equipment and controllers. It complies with various standards including BS 6231 Type CK, BS EN 50525-2-31, and IEC 60332 for flame retardancy. The wire is rated for 450/750V (Uo/U) and a maximum temperature of 105°C, with a maximum conductor resistance of 26 Ω/km at 20°C. It is designed for industrial applications such as motor drive and control systems.
MULTICOMP PRO PP001205 Flexible PVC Equipment Wire Specifications:
- Conductor: Class 5 flexible copper conductor
- Insulation: PVC Type TI3
- Voltage Rating: 450/750V (Uo/U), compliant with BS 6231, BS EN 50525-2-31
- Temperature Rating: Up to +105°C, minimum -15°C
- Maximum Conductor Resistance: 26 Ω/km at 20°C
- Minimum Bending Radius: 6 x overall diameter
- Sheath Color: Black, Blue, Brown, Dark Blue, Green, Grey, Green/Yellow, Light Blue, Orange, Pink, Red, Violet, White, Yellow
- Reel Lengths: 50 m, 100 m, 500 m in select sizes
- Standards Complied: UL Style 21015, BS EN 50525-2-31, BS 6231 Type CK, IEC 60332
- Application: Internal wiring, switchgear, motor controllers, rectifier equipment, instruments
Buy the Multicomp Series Flexible PVC Equipment Wire: PP001205
Enhance your electrical setups with the durable, flame-retardant flexible PVC equipment wire from Multicomp. Designed with a class 5 copper conductor, this high-quality wire supports voltage ratings up to 600/1000V and temperatures up to 105°C. Available in various lengths including 50, 100, and 500 meters, it adheres to international standards and is ideal for switchgear, control panels, and industrial wiring. Purchase online now for dependable, safe, and efficient electrical connections in demanding environments.
Order your Multicomp Series PP001205 flexible PVC equipment wire today and ensure reliable, flame-retardant electrical connections for industrial projects.
