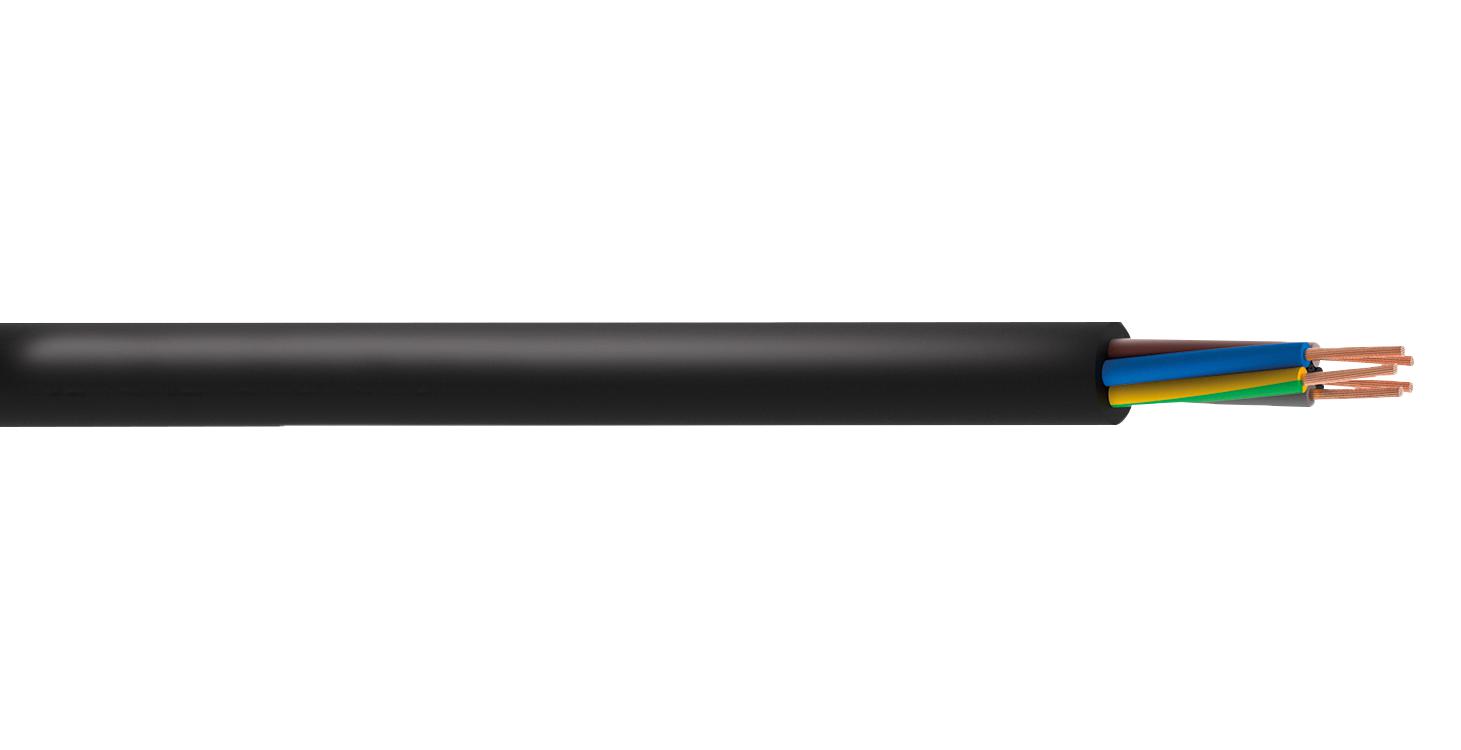

MULTICOMP-PRO PP002451 Flexible Power Cable
This LSZH rubber flexible cable is designed for safe indoor and outdoor installation, offering fire, smoke, and toxic fume resistance. Suitable for mobile power, UPS, stage lighting, and AV equipment, it features Class 5 copper conductors, a LSZH cross-linked sheath, and complies with BS EN 50525-3-21 standards. Available in 2.5mm² and 4mm² cross-sections with 3 or 4 cores, it withstands medium mechanical stresses, operating at temperatures from -5°C to +90°C. Its flexible design, small bending radius, and black sheath make it ideal for demanding industrial applications.
MULTICOMP-PRO PP002451 Flexible Power Cable Specifications:
- Voltage Rating: 450/750V
- Temperature Rating: Fixed -20°C to +90°C, Flexed -5°C to +50°C
- Minimum Bending Radius: Fixed 4x overall diameter, Flexed 6x overall diameter
- Core Identification: 3 Core (Green/Yellow, Blue, Brown), 4 Core (Green/Yellow, Brown, Black, Grey)
- Sheath Color: Black
- Conductor: Class 5 flexible copper conductor
- Insulation & Sheath Material: LSZH cross-linked compound Type El8 and EM8
- Construction Standards: BS EN 50525-3-21, CENELEC HD22-13, CEI 20-19 Part 13
- Nominal Cross Sectional Area: 2.5mm², 4mm²
- Core configuration: 3 or 4 cores
- Maximum Resistance: 0.26 Ω for 25mm² conductor, 0.31 Ω for 4mm² conductor at 20°C
- Operating Temperature: Up to 90°C, derating factors apply
- Available lengths: 50m reels or per meter
- Certification: RoHS compliant
Buy the Multicomp HO7ZZ-F – Reliable LSZH Flexible Cable for Industrial Applications
Secure your project with our durable and fire-safe LSZH flexible power cables. Designed for indoor and outdoor installations, these cables resist smoke and toxic fumes. Available in 2.5mm² and 4mm² varieties with 3 or 4 cores, they meet industry standards and are ideal for mobile power units, UPS, stage lighting, and AV equipment. Purchase online now for quick delivery and ensure your electrical setup is safe, reliable, and compliant with modern safety regulations.
Order your Multicomp Series HO7ZZ-F LSZH Rubber Flexible Cable today and ensure safe, flexible power distribution for your industrial projects.
