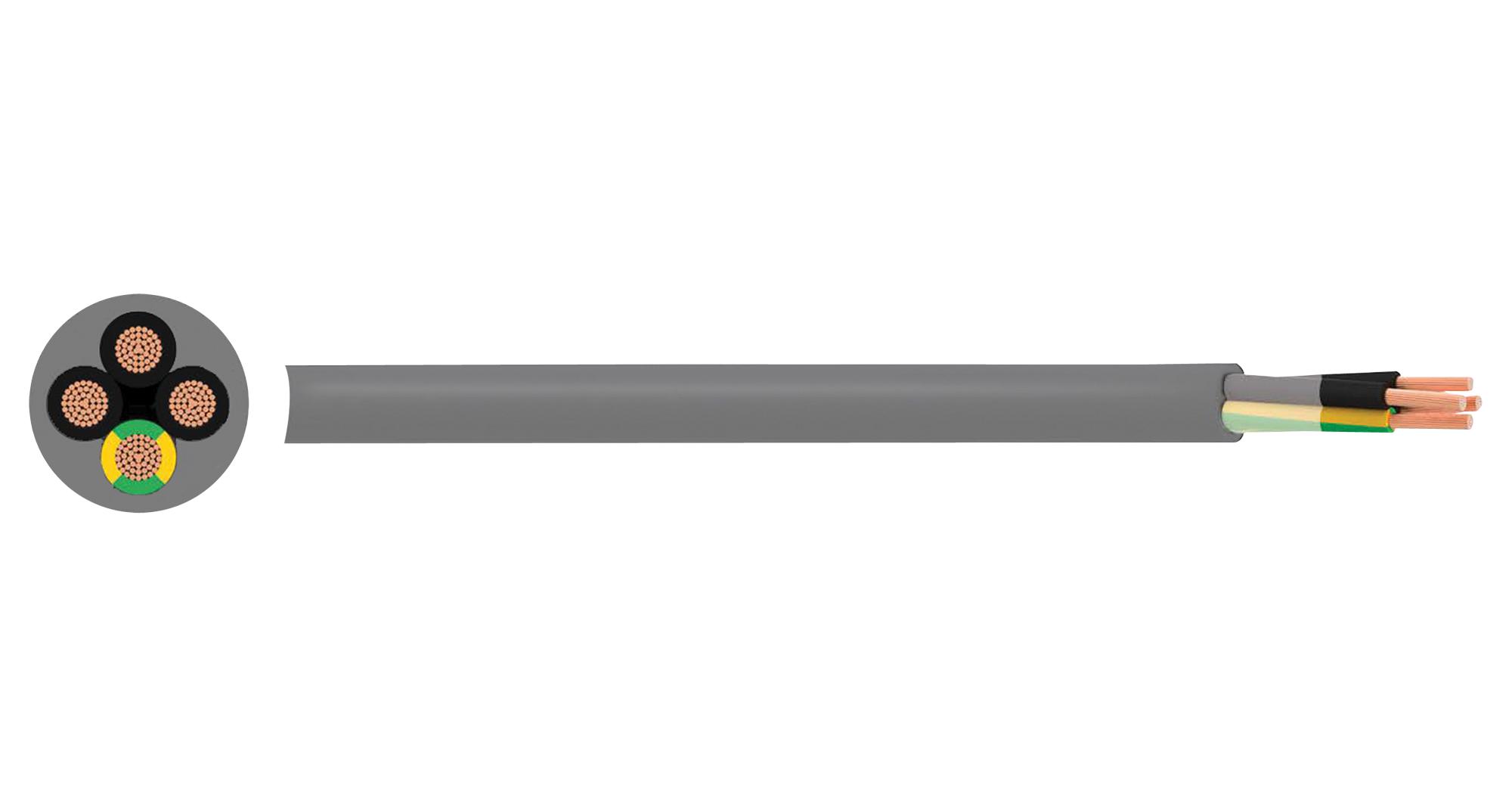

MULTICOMP PRO PP001521 Flexible Polyurethane Multicore Cable
Flexible polyurethane multicore cable ideal for machinery, production lines, and flexible applications with low tensile load. Resistant to oil, chemicals, abrasion, and mechanical stress, suitable for indoor and outdoor fixed installations with RoHS compliance and verified quality testing. Features PVC insulation, polyurethane sheath, and class 5 copper conductors with various core and cross-sectional area options. Designed for use in dry or wet environments, it offers excellent flexibility, high resistance to environmental factors, and meets international standards for electrical and mechanical performance.
MULTICOMP PRO PP001521 Flexible Polyurethane Multicore Cable Specifications:
- Voltage Rating: 300/500V
- Test Voltage: 2 4kV
- Temperature Rating: Fixed -40°C to +80°C, Flexed -5°C to +70°C
- Minimum Bending Radius: Fixed 4 x overall diameter, Flexed 10 x overall diameter
- Conductor: Class 5 flexible plain copper wires
- Insulation: PVC (Polyvinyl Chloride)
- Sheath: PUR (Polyurethane)
- Core Identification: Black with white number + Green/Yellow
- Dimensions vary by model, with core cross-sectional areas ranging from 0.75mm² to 25mm², overall diameters from approximately 5.8mm to 14.9mm
- Cable Standards: VDE 0295, VDE 0293-334, VDE 0285-525-1, VDE 0285-525-2-51
- Current Capacity: 12A (0.75mm²), 15A (1mm²), 18A (1.5mm²), 26A (25mm²)
- Resistance at 20°C: 26Ω, 19.5Ω, 13.3Ω, 7.98Ω accordingly
Buy the Multicore Cable Series Flexible Polyurethane: PP001521
Purchase the Flexible Polyurethane multicore cable series PP001521 online today to enhance your machinery and production line setups. Designed for durability in wet or dry environments, this cable offers excellent flexibility, resistance to oil, chemicals, and abrasion, making it ideal for outdoor fixed installations. With a RoHS compliant construction featuring PVC insulation and polyurethane sheath, it guarantees high performance and safety. Trusted for quality and reliability, this cable is your perfect choice for demanding industrial applications requiring flexible power supply solutions.
Order your Flexible Polyurethane multicore cable series PP001521 today and ensure reliable, flexible power distribution in demanding industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP001521?
You can click on the BUY or RFQ button to purchase PP001521 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001521?
You can download the PP001521 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP001521?
MULTICOMP PRO
