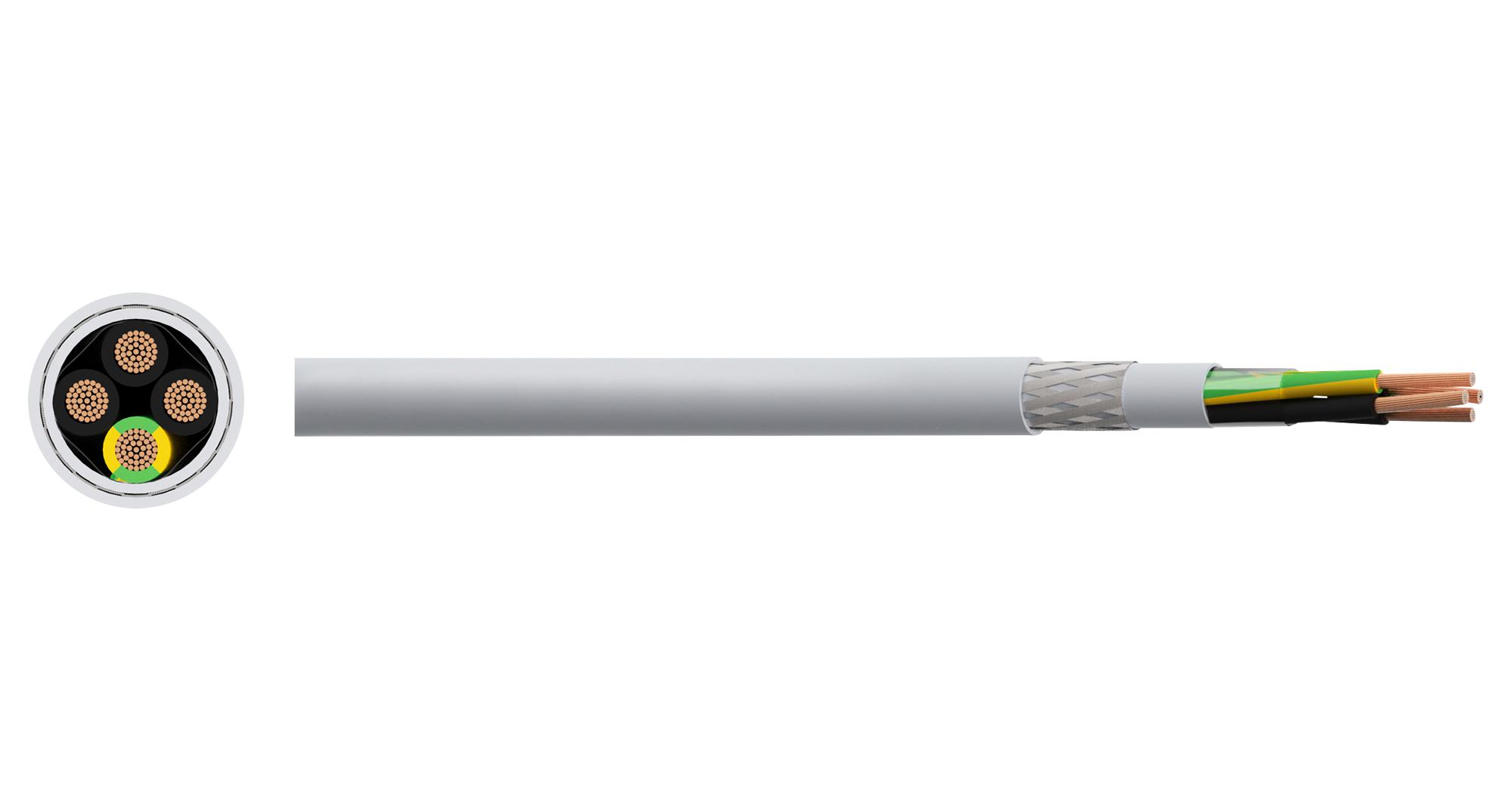

MULTICOMP-PRO PP001552 Flexible Control Cable
This flexible screened control cable with multicore construction is ideal for instrumentation, control equipment, tooling machinery, and flexible applications requiring moisture resistance. Compliant with RoHS and various VDE standards, it features a PVC insulation and sheath, tinned copper wire braid screening, and polyester tape separation. Suitable for dry, moist, and wet environments, it operates at 300/500V with a test voltage of 2-4kV. Its temperature ratings are -40°C to +80°C fixed and -5°C to +70°C flexed, with minimum bending radii of 4x overall diameter fixed and 12.5x flexed.
MULTICOMP-PRO PP001552 Flexible Control Cable Specifications:
- Voltage Rating: 300/500V
- Test Voltage: 2-4kV
- Temperature Rating: Fixed: -40°C to +80°C, Flexed: -5°C to +70°C
- Minimum Bending Radius: Fixed: 4 x overall diameter, Flexed: 12.5 x overall diameter
- Conductor: Class 5 flexible plain copper wires
- Insulation: PVC (Polyvinyl Chloride)
- Separator: PET (Polyester Tape)
- Screen: Tinned Copper Wire Braid
- Sheath: PVC (Polyvinyl Chloride)
- Standards: VDE 0207-363-3, VDE 0285-525-2-51, IEC 60332-1-2 flame retardant
- Construction: Multiple cores with black insulation, white numbering, green/yellow for ground, overall diameter varies with core count
- Dimensions: Nominal cross-sectional area ranges from 0.5 mm² to 25 mm², overall diameter from 5 mm to 11.5 mm, weight between 35 kg/km to 283 kg/km
Buy the Multicore Control Cable Series YSLYCY: PP001552
Purchase your Flexible Control Cable online today to ensure dependable performance in instrumentation, control, and machinery applications. Designed with PVC insulation, flexible copper conductors, and a tinned copper braid screen, this cable delivers safety and durability in moist and wet environments. With RoHS compliance, it meets essential international standards including VDE flame retardant standards, making it suitable for a broad range of industrial control needs. Order now and enjoy quick delivery, high-quality construction, and proven reliability for your projects.
Order your Multicore Control Cable Series YSLYCY PP001552 today and ensure reliable wiring for instrumentation and control projects in wet or moist environments.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP001552?
You can click on the BUY or RFQ button to purchase PP001552 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001552?
You can download the PP001552 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP001552?
MULTICOMP-PRO
