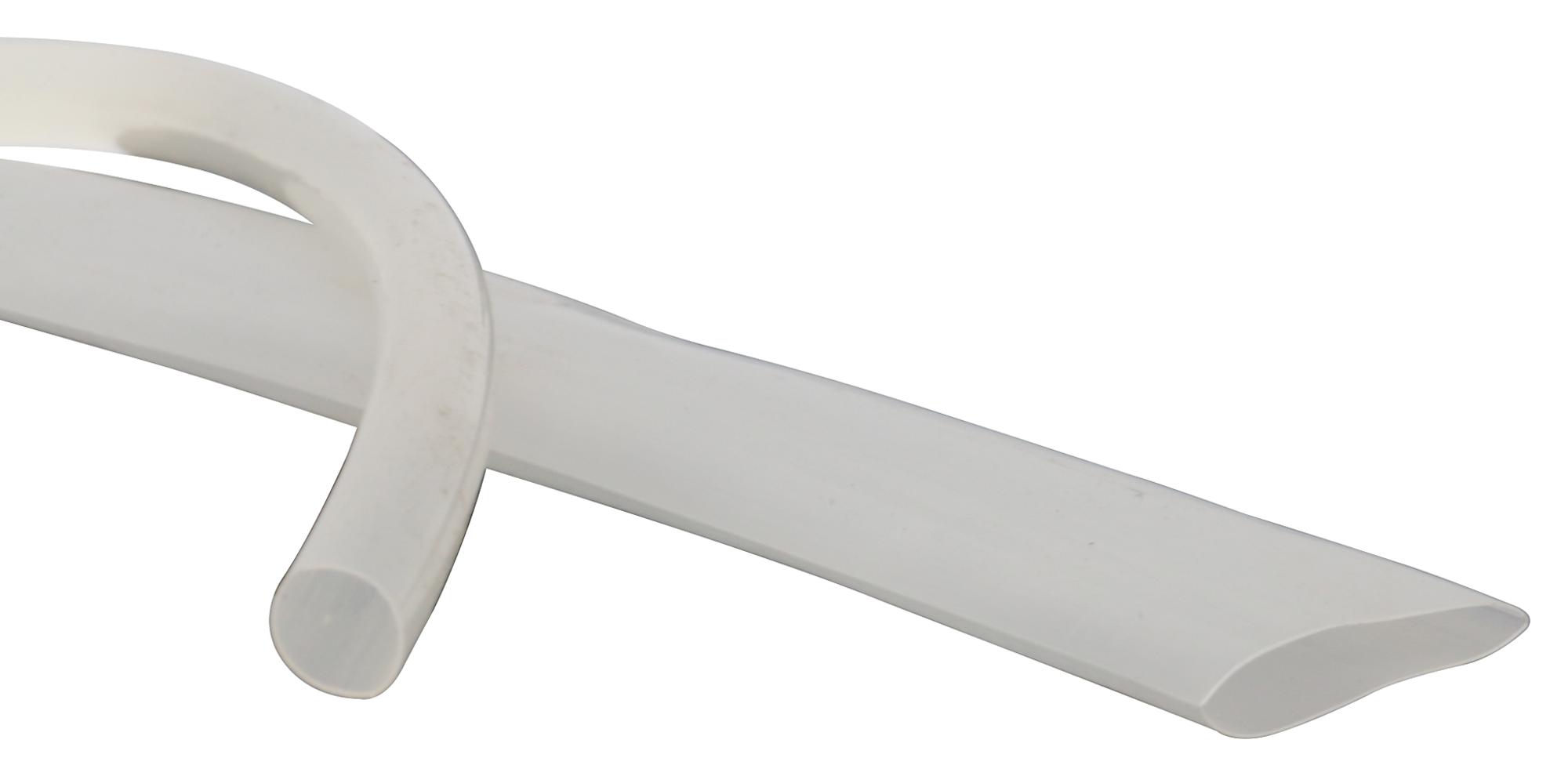

MULTICOMP PRO PP001996 High Temperature PVDF Heat Shrink Tubing
Semi-rigid flame-retardant heat shrinkable PVDF tubing offers high temperature resistance up to 175°C, excellent chemical and solvent resistance, and outstanding abrasion and cut-through durability. Designed for protecting wires, solder joints, connectors, and components from industrial fluids and chemicals, it maintains mechanical integrity after heat aging and exhibits excellent dielectric strength. Available in clear, with various sizes, it features a shrink ratio of 2:4, tensile strength of 230 MPa, and volume resistivity of 21x10^15 Ω·cm, suitable for harsh industrial environments and high-performance electrical insulation needs.
MULTICOMP PRO PP001996 High Temperature PVDF Heat Shrink Tubing Specifications:
- Operating temperature: 1-55°C to +175°C
- Minimum Full Recovery Temperature: 217°C
- Shrink Ratio: 2:4
- Color: Clear
- Tensile Strength: 230 MPa (ASTM D2671)
- Ultimate Elongation: 2550% (ASTM D2671)
- Elongation after Heat Aging: 2500% at 250°C (168 hours)
- Flammability: UL 224 VW-1 Pass
- Heat Shock Resistance: 300°C, 1 hour, no cracking
- Cold Bend Resistance: -55°C, 1 hour, no cracking
- Dielectric Strength: 230 kV/mm (ASTM D2671)
- Volume Resistivity: 21x10^15 Ω·cm (ASTM D 876)
- Internal Diameter (mm): 1.6, 3.2, 4.8, 6.4, 9.5, 12.7, 19.1
- Wall Thickness: 0.25-0.42 mm depending on size
- Material: PVDF (Polyvinylidene fluoride)
Buy the Farnell Series High Temperature PVDF Heat Shrink: PP001996
Secure your electrical components and wiring with Farnell's high-performance PVDF heat shrink tubing, rated up to 175°C for challenging industrial applications. This semi-rigid, flame-retardant tubing offers excellent chemical resistance, abrasion protection, and durability. Its clear design allows easy inspection, and the various sizes ensure perfect fitment for multiple requirements. Trust Farnell for reliable high temperature insulation solutions that deliver exceptional chemical resistance, mechanical strength, and long-lasting protection for industrial environments.
Buy Farnell PP001996 high temperature chemical resistant PVDF heat shrink tubing now and experience unmatched durability and protection in harsh environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP001996?
You can click on the BUY or RFQ button to purchase PP001996 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001996?
You can download the PP001996 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP001996?
MULTICOMP PRO
