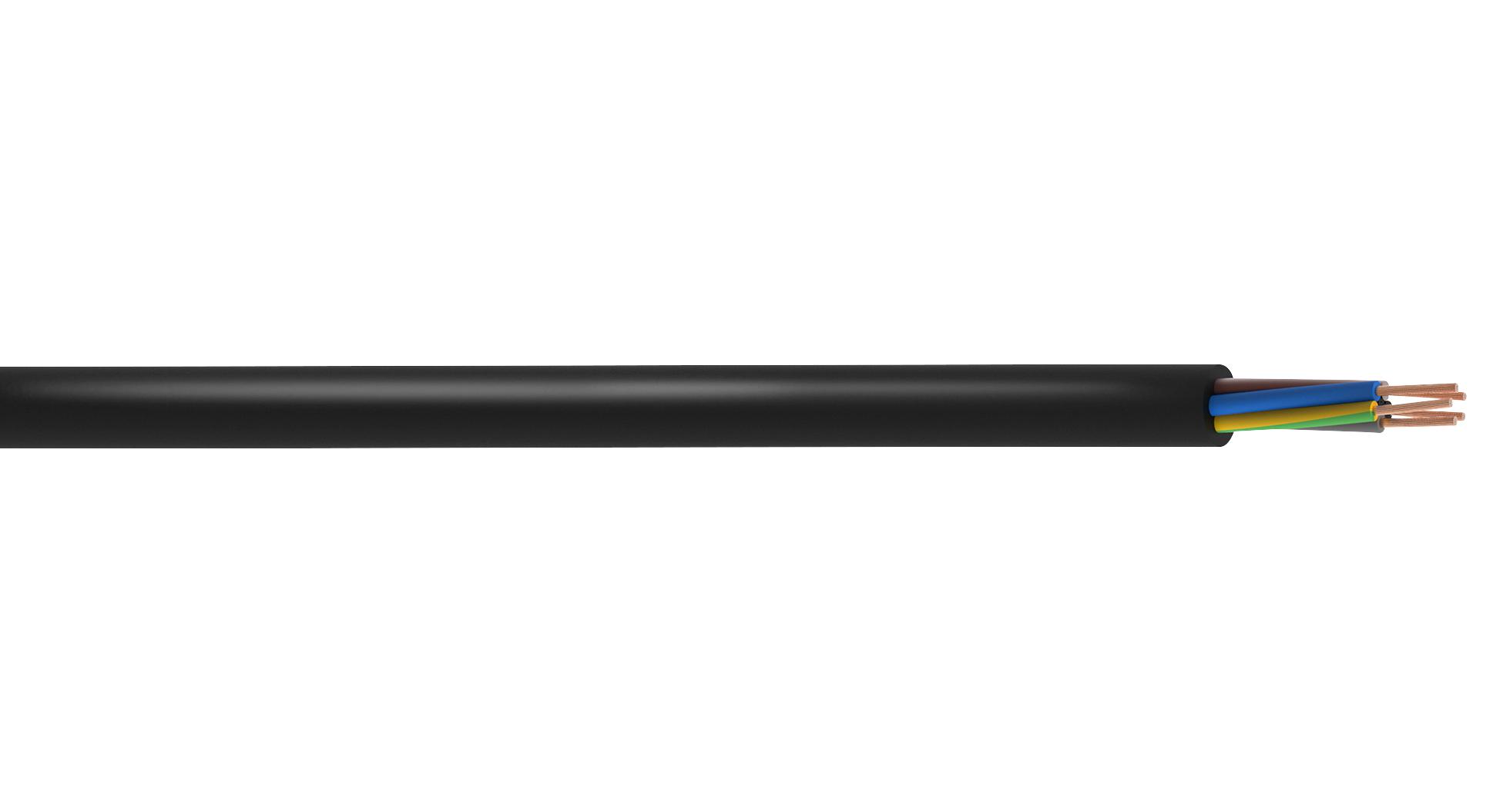

MULTICOMP PRO PP002144 Flexible Rubber Cable
This flexible rubber cable is designed for high flexibility and durability in industrial environments. It features a black sheath, ethylene Propylene Rubber insulation, and Polychloroprene outer coating, enabling resistance to weather, oil, grease, mechanical, and thermal stresses. Suitable for handling equipment, mobile power supplies, and water treatment facilities, it complies with BS EN 50525-2-21 standards. Available in multiple core configurations with rated voltages of 450/750V, and temperature tolerances from -30°C to +85°C, ensuring reliable operation in severe conditions.
MULTICOMP PRO PP002144 Flexible Rubber Cable Specifications:
- Voltage Rating (Uo/U): 450/750V
- Temperature Rating: Fixed: -30°C to +60°C, +85°C; Flexed: -15°C to +60°C
- Minimum Bending Radius: Fixed: 4 x overall diameter, Flexed: 6 x overall diameter
- Construction: Conductors: Class 5 flexible copper, insulation: EPR, sheath: PCP
- Core Colors: 2 cores: Blue, Brown; 3 cores: Green/Yellow, Blue, Brown; 4 cores: Green/Yellow, Black, Gray, Brown; 5 cores: Green/Yellow, Blue, Black, Gray, Brown
- Sheath Color: Black
- Standards: BS EN 50525-2-21, BS EN 60811-2-1, BS EN/IEC 60332-1-2
- Nominal Cross-Sectional Areas: 1, 1.5, 2.5, 4, 6 mm²
- Conductor Diameter Max: 0.21 mm to 0.31 mm depending on core count
- Current Capacity: 10-39 amps depending on size and configuration, rated for temperatures up to 85°C
- Resistance at 20°C: 7.98 ohm/km for 2.5 mm², 13.3 ohm/km for 1.5 mm², 19.5 ohm/km for 1 mm²
- Max Operating Temperatures: 60°C for general use, up to 85°C for specific applications
- Applicable for severe industrial environments, water treatment, cold climates, handling equipment, and stage equipment.
Buy the Multicomp Flexible Rubber Cable – Reliable Power Conductors for Industrial Applications
Purchase Multicomp Flexible Rubber Cable online today to ensure your industrial projects are powered by durable, weather-resistant, and flexible conductors. Ideal for handling equipment, water treatment, and severe environments, these cables meet high safety standards and offer reliable voltage ratings of 450/750V. Available in multiple core configurations with temperature tolerances up to 85°C, they provide efficient power transmission and resistance against oil, grease, and mechanical stresses. Secure your supply chain with this essential industrial power cable now.
Get Multicomp Flexible Rubber Cable today—built for precision and long-lasting durability in demanding industrial environments.
