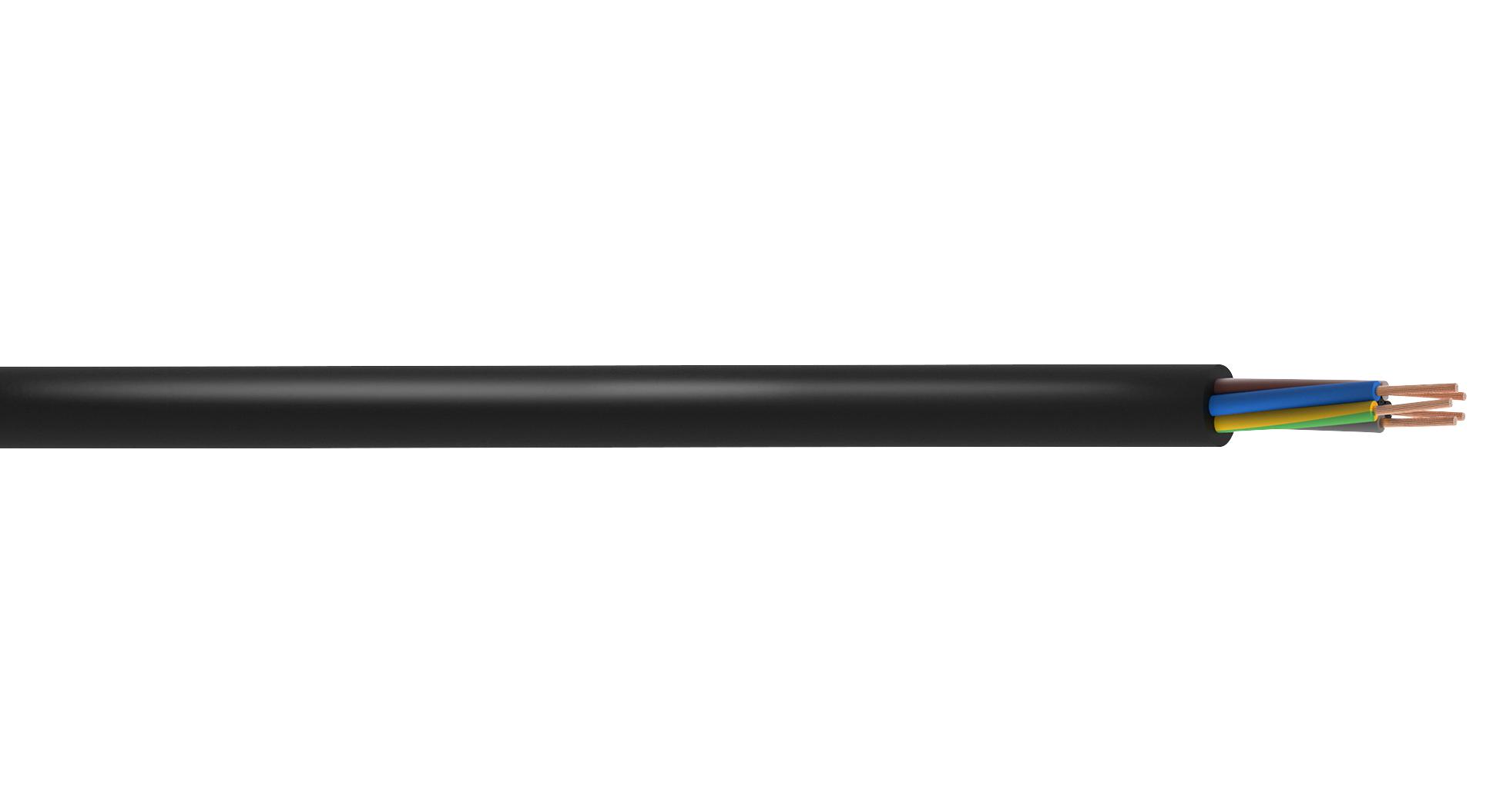

MULTICOMP PRO PP002147 Flexible Rubber Cable
High-quality flexible rubber cable designed for industrial and construction applications, capable of withstanding weather, oil, grease, mechanical, and thermal stresses. Suitable for handling equipment, mobile power supplies, stage lighting, water treatment, and severe industrial environments. Rated for 450/750V with a temperature range from -30°C to +60°C in fixed installations and -15°C to +60°C when flexed. Features include multiple core configurations, blue, brown, green/yellow color codes, and compliance with BS EN 50525-2-21 standards. Constructed with flexible copper conductors, EPR insulation, and PCP sheath, ensuring durability and safety.
MULTICOMP PRO PP002147 Flexible Rubber Cable Specifications:
- Voltage Rating: 450/750V
- Temperature Rating: Fixed: -30°C to +60°C, Flexed: -15°C to +60°C
- Minimum Bending Radius: Fixed: 4 x overall diameter, Flexed: 6 x overall diameter
- Conductor: Class 5 Flexible copper conductor conforming to BS EN 60228
- Insulation: EPR (Ethylene Propylene Rubber) Type El4 BS EN 50363
- Sheath: PCP (Polychloroprene) Type EM2 BS EN 50363
- Core Identification: 2 core: Blue, Brown; 3 core: Green/Yellow, Blue, Brown; 4 core: Green/Yellow, Brown, Black, Grey; 5 core: Green/Yellow, Blue, Brown, Black, Grey
- Sheath Colour: Black
- Standards: BS EN 50525-2-21 (BS 7919), BS EN 60811-2-1, BS EN/IEC 60332-1-2
- Nominal Cross-Sectional Area: 1mm² to 6mm² options available
- Nominal Overall Diameter: 8.1mm to 18.2mm depending on core and size
- Weight: Ranges from approximately 94 kg/km to 567 kg/km depending on size
- Maximum Resistance at 20°C: 19.5Ω to 3.3Ω depending on conductor size
- Current Capacity: 10A to 53A depending on size and configuration
- Voltage Drop: 12 to 19 mV/A/m depending on cable size
- Operating Temperature: Up to 60°C, with de-rating factors for ambient temperatures above 35°C
- Flexible design with minimum bending radii of 4x to 6x overall diameter
Buy the Multicomp Series Flexible Rubber Cable: PP002147
Purchase your Multicomp Series PP002147 flexible rubber cable online today to benefit from high flexibility, weather resistance, and durability. Specifically designed for industrial, construction, and severe environment applications, this cable features multiple core configurations, rated 450/750V, with a temperature range suitable for fixed and flexed installations. Its construction includes high-quality copper conductors, EPR insulation, and PCP sheath, guaranteeing safety, longevity, and performance. Available in various sizes, order now and ensure your projects have reliable power supply with ease and confidence.
Order your Multicomp Series PP002147 flexible rubber cable today and ensure reliable power transmission in demanding industrial environments.
