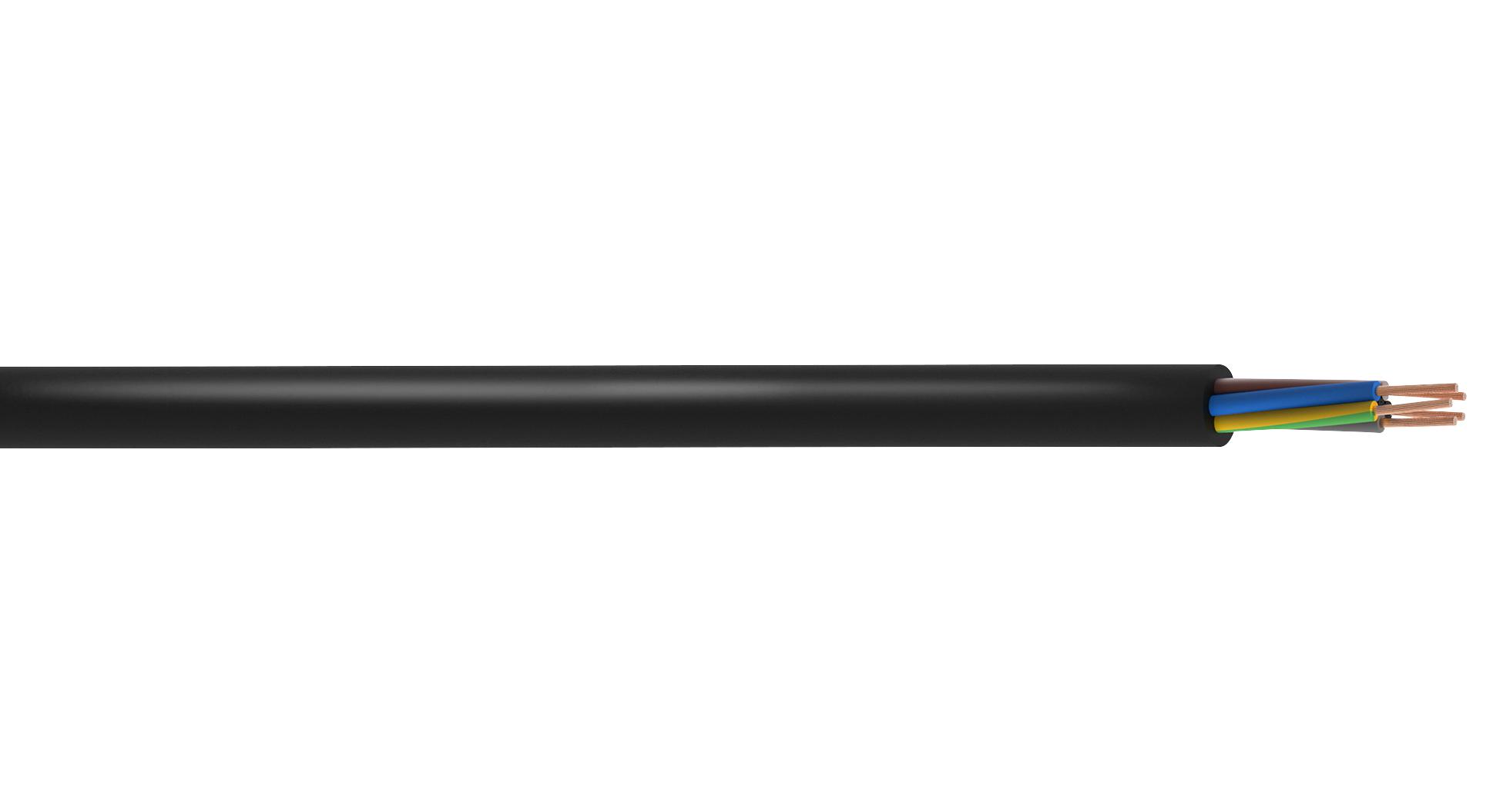

MULTICOMP-PRO PP002154 Industrial Rubber Cable
This flexible rubber cable is designed for versatile industrial applications such as handling equipment, mobile power supplies, and water treatment environments. It features high flexibility, weather and oil resistance, and withstands mechanical and thermal stresses. Constructed with a Class 5 flexible copper conductor, Ethylene Propylene Rubber insulation, and Polychloroprene sheath, it supports voltages up to 450/750V. Suitable for fixed or flexible installations with temperature ratings from -30°C to +85°C, its robust design ensures durability in severe industrial and outdoor conditions.
MULTICOMP-PRO PP002154 Industrial Rubber Cable Specifications:
- Voltage Rating: 450/750V
- Temperature Rating: fixed -30°C to +85°C, flexed -15°C to +60°C
- Core Identification: 2 core: Blue, Brown; 3 core: Green/Yellow, Blue, Brown; 4 core: Green/Yellow, Brown, Black, Grey; 5 core: Green/Yellow, Blue, Brown, Black, Grey
- Sheath Colour: Black
- Insulation Material: Ethylene Propylene Rubber (EPR) Type El4
- Sheath Material: Polychloroprene (PCP) Type EM2
- Conductor: Class 5 flexible copper conductor BS EN 60228
- Minimum Bending Radius: fixed 4 x overall diameter, flexed 6 x overall diameter
- Standards: BS EN 50525-2-21, BS EN 60811-2-1, BS EN/IEC 60332-1-2
- Dimensions vary by part number, with typical cross-sectional areas from 1mm² to 6mm²
- Maximum conductor diameters range from approximately 0.21mm to 0.31mm depending on size
- Current Capacity: 10A for 1mm², up to 47A for 6mm² at 60°C Conductor temperature
- Voltage Drop: between 16mV/A/m and 46mV/A/m depending on size
- Operating Temperature: conductor up to 85°C, ambient up to 35°C
- Application suitable for outdoor, industrial, and severe environments requiring durable, weather-resistant cables.
Buy the Multicomp Series Rubber Cable: PP002154
Order the industrial-grade rubber cable PP002154 online today for reliable performance in severe weather, water, and industrial environments. Our high-quality, flexible, and weather-resistant cables support voltages up to 750V and operate efficiently in temperatures from -30°C to +85°C. Suitable for handling equipment, power supplies, and water treatment applications, this cable's robust construction ensures long-lasting durability. Available in various sizes with fast delivery, ensuring your project stays on schedule. Choose quality with Multicomp and buy now for superior performance.
Get Multicomp Series Rubber Cable PP002154 today—built for durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP002154?
You can click on the BUY or RFQ button to purchase PP002154 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002154?
You can download the PP002154 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP002154?
MULTICOMP-PRO
