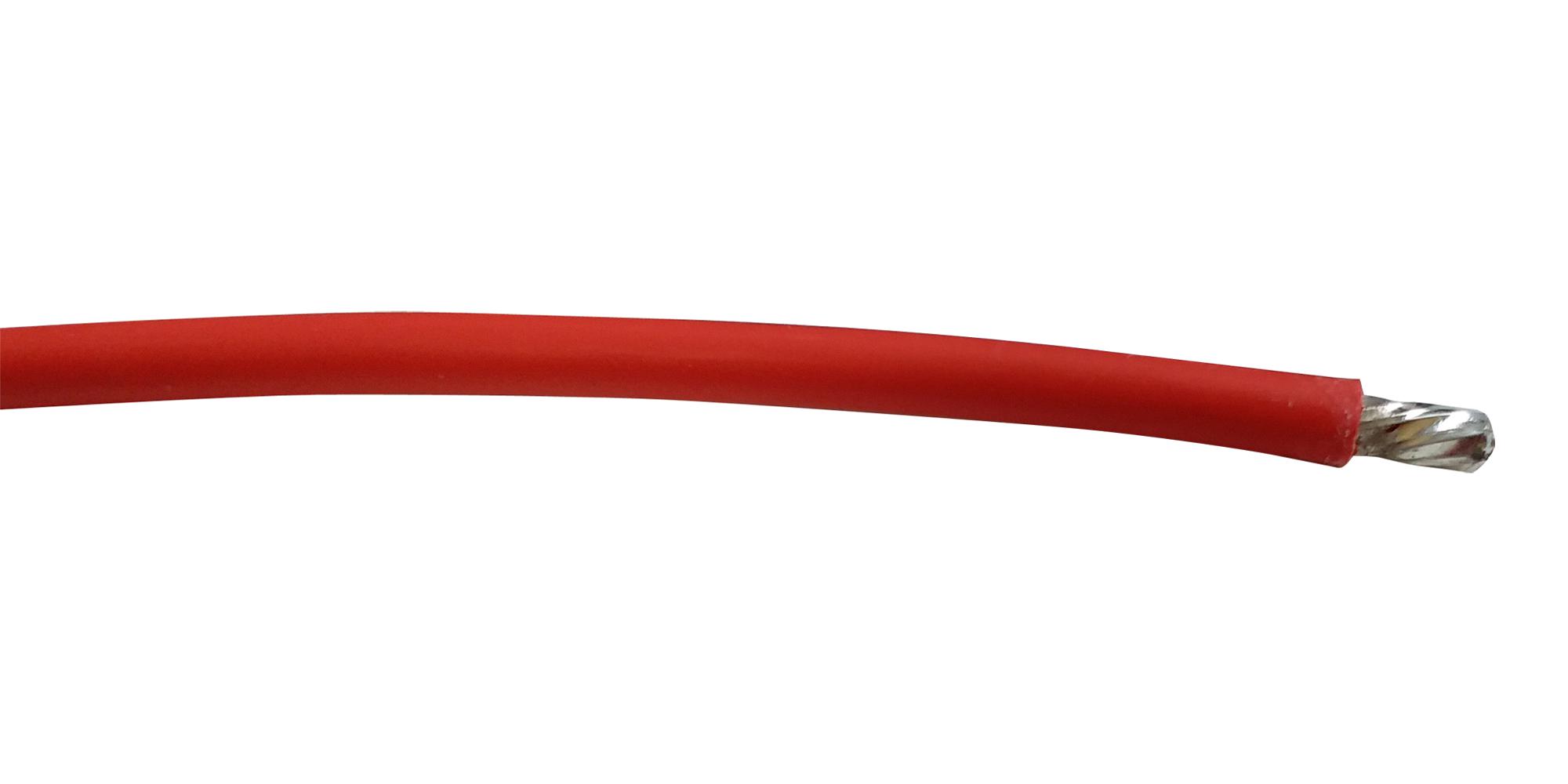

MULTICOMP PRO PP002524 Hook-Up Wire
This UL1015 style stranded hook-up wire is designed for versatile electrical applications, rated at 105°C and 600V. Constructed with stranded tinned copper conductors and insulated with durable PVC, it complies with UL and CSA standards. Available in multiple sizes from 26 AWG to 10 AWG, it features color-coded insulation for easy identification. Suitable for wiring in control panels, electronic devices, and industrial equipment, the wire comes in reels of 305 meters or per meter. Its resilience, flexibility, and compliance make it a reliable choice for professional electrical installations.
MULTICOMP PRO PP002524 Hook-Up Wire Specifications:
- Conductor Material: Stranded Tinned Copper
- Insulation Material: PVC
- Rated Temperature: 105°C
- Rated Voltage: 600V
- Cable Length: 305 meters reel or per meter
- AWG Sizes: 10, 12, 14, 16, 18, 20, 22, 24, 26
- Conductor Resistance: Varies by AWG (e.g., 10 AWG: 3.41 Q/kM), measured at 20°C
- Conductor Strands: 65/0.16 mm for 16 AWG, 34/0.18 mm for 18 AWG, 7/0.16 mm for 26 AWG
- Insulation Diameter: 1.49 mm for 16 AWG, 1.21 mm for 18 AWG, 0.49 mm for 26 AWG
- Insulation Color: Black, Red, Blue, White, Green/Yellow, Brown, Orange, Grey
- Compliance: UL Recognized (UL file no. E352035), CSA Certified
Buy the Farnell Series UL1015 Hook-Up Wire: PP002524
Purchase the high-quality UL1015 hook-up wire online today and ensure your electrical projects have reliable, UL and CSA certified wiring. This stranded tinned copper wire with PVC insulation offers excellent flexibility, durability, and safety for a wide range of industrial and electronic applications. Available in various gauge sizes, it is suitable for control panels, instrumentation, and general wiring. Reels of 305 meters or per meter options ensure you get the right length for your needs. Trust our easy online ordering for fast delivery and consistent quality to support your engineering and maintenance projects effectively.
Order your Farnell Series UL1015 Hook-Up Wire PP002524 today and equip your projects with high-quality, reliable electrical wiring solutions.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP002524?
You can click on the BUY or RFQ button to purchase PP002524 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002524?
You can download the PP002524 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP002524?
MULTICOMP PRO
