MULTICOMP-PRO PP002585 Hook-Up Wire

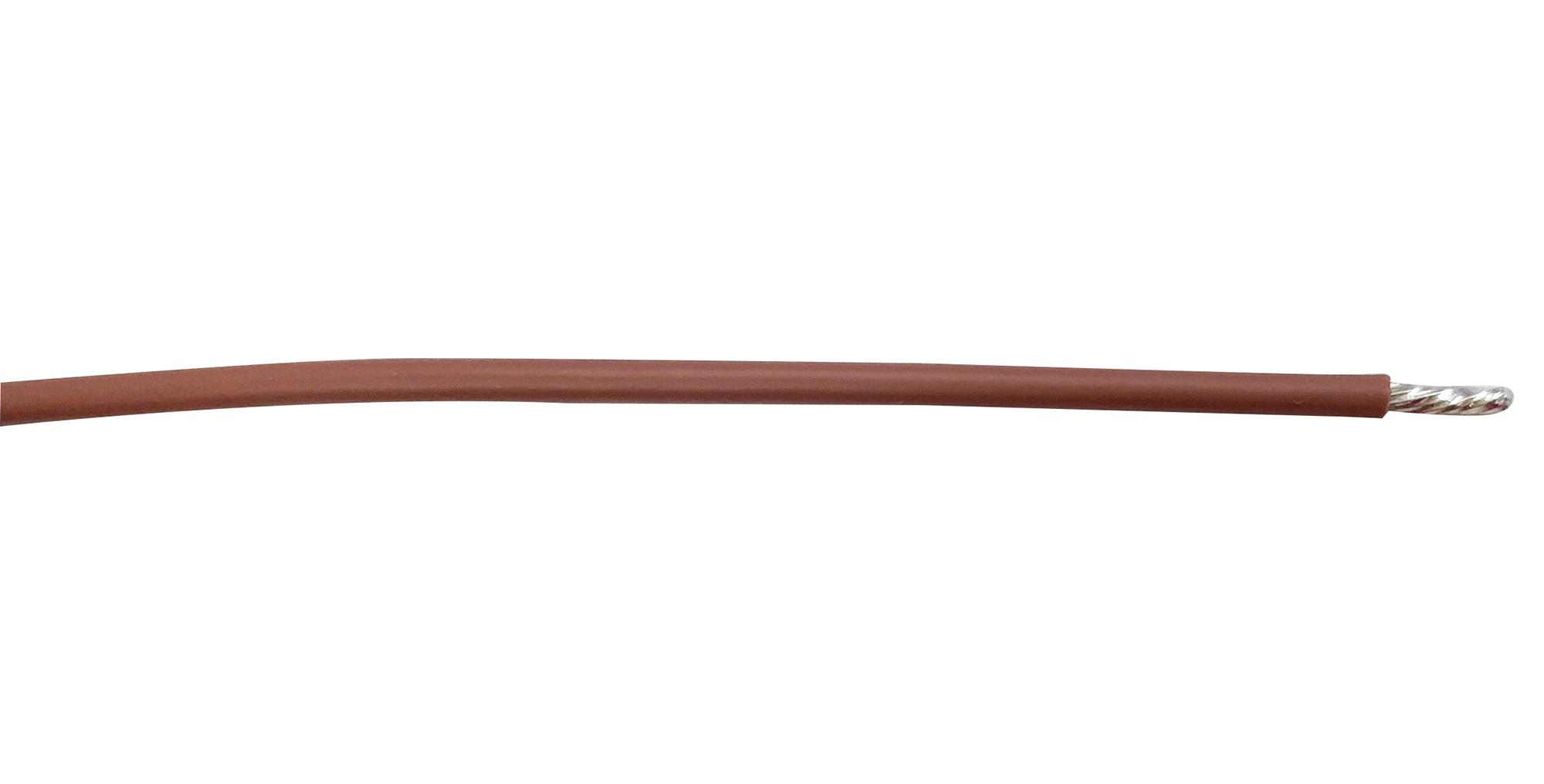

The UL1061 Style Stranded Hook-Up Wire by pro-POWER is a flexible, high-temperature wiring solution designed for industrial and electronic applications. Made with stranded tinned copper conductors and SR PVC insulation, it offers excellent electrical performance and durability. Suitable for those requiring UL recognition and RoHS compliance, this wire supports temperatures up to 280°C and voltage ratings of 300V. Available in various gauge sizes and colors, it is supplied in 305m reels or per meter, ideal for wiring harnesses, control panels, and electronic devices.
MULTICOMP-PRO PP002585 Hook-Up Wire Specifications:
- Conductor Material: Stranded Tinned Copper
- Insulator Material: SR PVC
- Rated Temperature: 280°C
- Rated Voltage: 300V
- Cable Length: Available in 305m Reel or per metre
- Conductor Sizes: 18 AWG, 20 AWG, 22 AWG, 24 AWG, 26 AWG
- Conductor Resistance: 23.2 Q/kM (18 AWG), 36.7 Q/kM (20 AWG), 59.4 Q/kM (22 AWG), 94.2 Q/kM (24 AWG), 150 Q/kM (26 AWG)
- Insulation Diameter: 1.8 mm (18 AWG), 1.5 mm (20 AWG), 1.25 mm (22 AWG), 1.15 mm (24 AWG), 1 mm (26 AWG)
- Conductor Diameter: 1.21 mm (18 AWG), 0.95 mm (20 AWG), 0.76 mm (22 AWG), 0.61 mm (24 AWG), 0.49 mm (26 AWG)
Buy the UL1061 Style Stranded Hook-Up Wire – Reliable Electrical Connection for Industrial Applications
Order UL1061 Style Stranded Hook-Up Wire directly from our online store for quick delivery and competitive prices. This high-quality wire features stranded tinned copper conductors and SR PVC insulation, providing excellent flexibility, durability, and temperature resistance of up to 280°C. Perfect for electronic, industrial, and control applications, it is available in a variety of gauges and colors, supplied in 305m reels or per meter. Ensure reliable electrical connections in your projects with this UL-recognized and RoHS compliant wiring solution.
Get UL1061 Style Stranded Hook-Up Wire today—built for high-temperature environments and reliable electrical performance.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP002585?
You can click on the BUY or RFQ button to purchase PP002585 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002585?
You can download the PP002585 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP002585?
MULTICOMP-PRO
