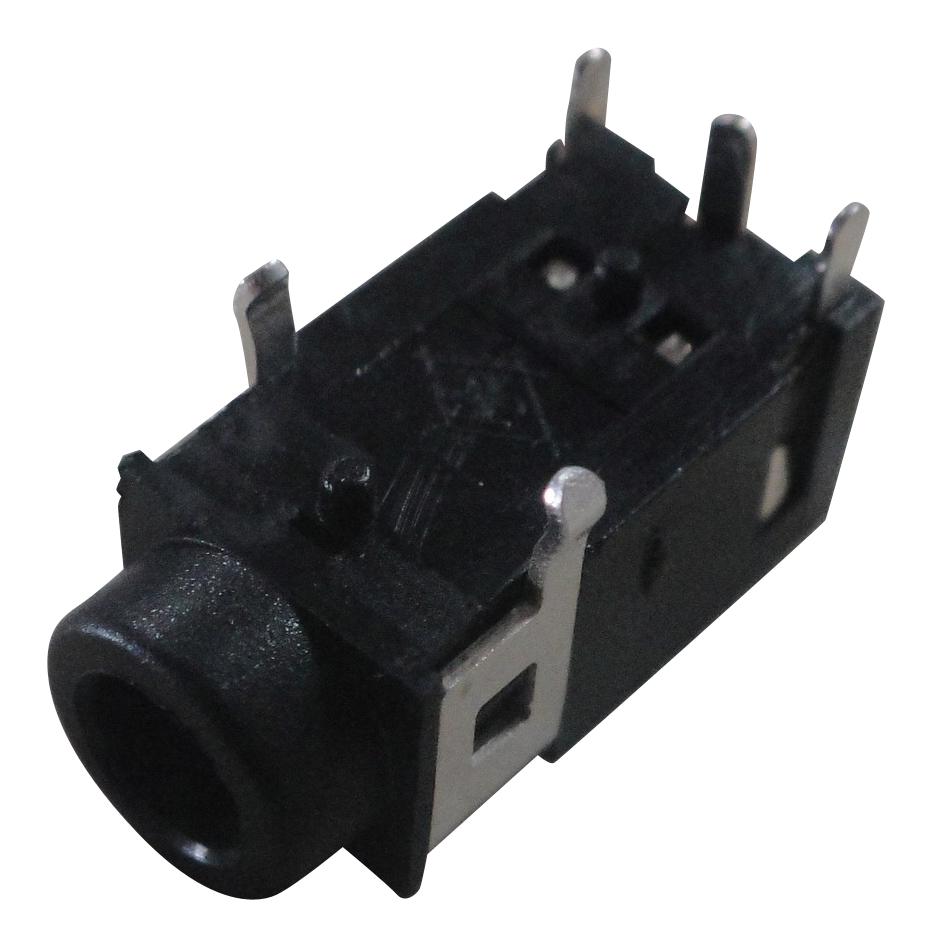

MULTICOMP PRO PS000059 Audio Jack Connector
This 3.5mm jack 4 pole audio connector features a PCB mount design, making it ideal for compact audio systems and portable devices. It complies with RoHS standards and is constructed with durable materials such as PBT housing and silver-plated phosphor bronze contacts. The connector ensures low contact resistance of 30mΩ maximum and provides insulation resistance of at least 100mΩ at DC 500V. It withstands AC 500V dielectric testing for one minute, offering reliable performance in demanding audio applications. Suitable for various electronic devices requiring stable audio connectivity.
MULTICOMP PRO PS000059 Audio Jack Connector Specifications:
- No. of Poles: 4 Pole
- Gender: Jack
- Pin Diameter: 3.5mm
- Mounting: PCB Mount
- Contact Resistance: 30mΩ Max
- Insulation Resistance: 100mΩ Min @ DC 500V
- Dielectric Withstanding Voltage: AC 500V for one minute
- Housing Material: PBT, Black
- Break Terminal: 0.4T Phosphor Bronze, Silver Plated
- Tip Spring: 0.2T Phosphor Bronze, Silver Plated
- Ring Spring: 0.4T Phosphor Bronze, Silver Plated
- Earth Terminal: 0.2T Phosphor Bronze, Silver Plated
- Dimensions: Millimetres
Buy the Multicomp PS000059 – Reliable Audio Jack for Industrial Applications
Purchase your Multicomp Series PS000059 3.5mm 4 Pole Audio Connector online today to ensure reliable audio connectivity for your electronic projects. Designed with durable PBT housing and silver-plated contacts, this PCB mount jack offers excellent electrical performance, including low contact resistance and high insulation resistance. Its robust construction withstands dielectric voltage tests up to AC 500V, making it ideal for demanding audio applications in portable devices, consumer electronics, and industrial systems. Secure your supply of high-quality connectors now with easy online ordering.
Order your Multicomp Series PS000059 3.5mm 4 Pole Audio Connector today and give your electronic projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PS000059?
You can click on the BUY or RFQ button to purchase PS000059 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PS000059?
You can download the PS000059 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PS000059?
MULTICOMP PRO
