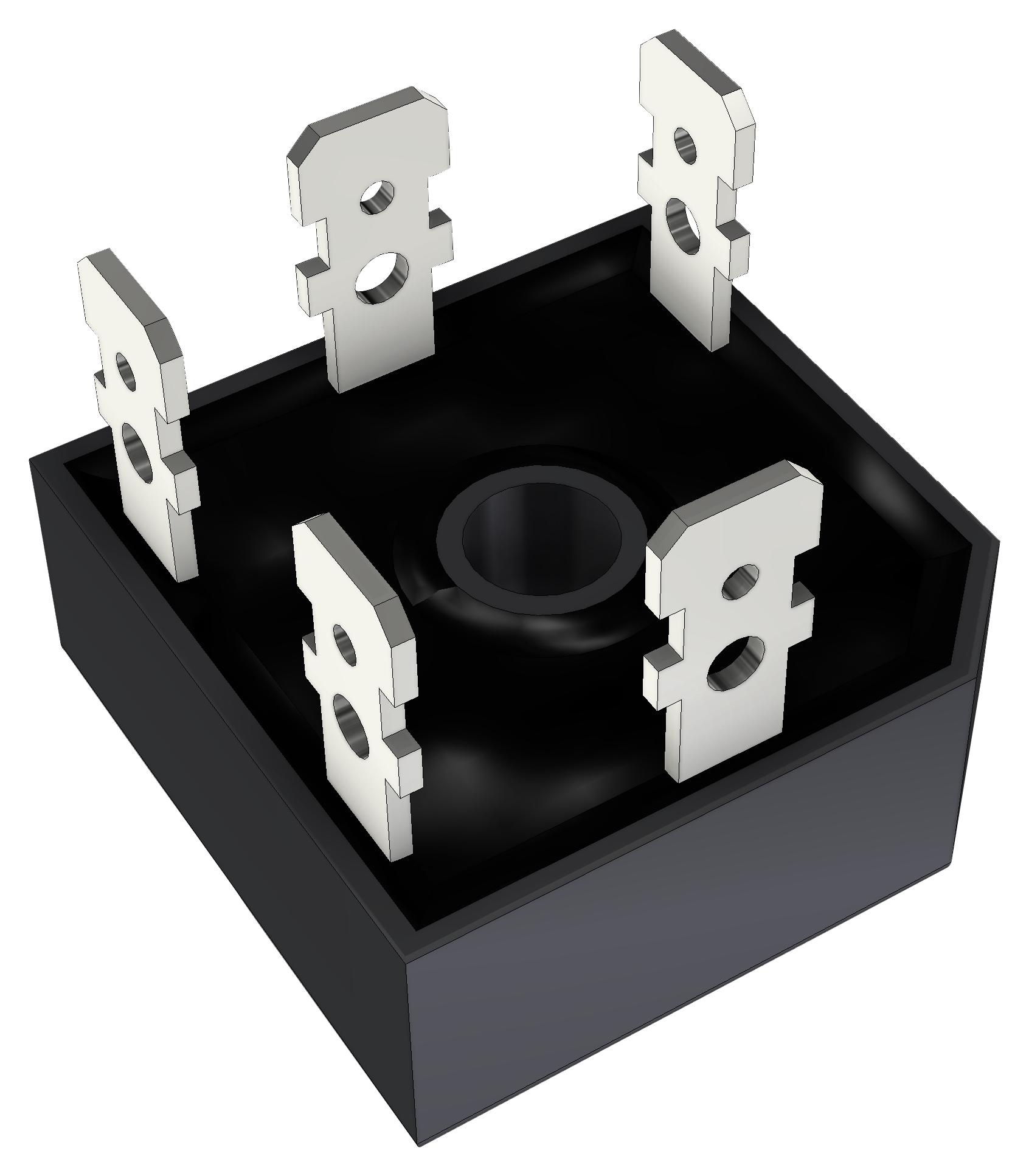

MULTICOMP PRO SBR3508 Three Phase Bridge Rectifier
This three-phase bridge rectifier features silicon passivation, diffused junctions, low forward voltage drop, and high current capability, making it ideal for demanding power applications. Its epoxy case includes a heat sink, with plated solderable leads, ensuring high reliability and surge current capacity. Suitable for printed circuit boards, it operates within -55°C to +160°C, with thermal resistance optimized for maximum heat transfer. Designed for resistive or inductive loads, it offers robust voltage ratings up to 1600V and can handle surge currents up to 475A, ensuring durability and efficiency in voltage rectification.
MULTICOMP PRO SBR3508 Three Phase Bridge Rectifier Specifications:
- Peak Repetitive Voltage VRRM: 1600 V
- Working Peak Reverse Voltage VRWM: 50 V to 1600 V depending on model
- Peak Non-Repetitive Reverse Voltage VrsM: 1500 V
- RMS Reverse Voltage VRMS: 35 V to 1120 V
- Average Forward Rectified Current: 35A
- Maximum Surge Current: 475A (non-repetitive)
- Forward Voltage Drop per element at 12.5A/17.5A: 12 V
- Peak Forward Surge Current: 500A
- Thermal Resistance Junction to Case: 1.16 kW
- Operates within temperature range: -55°C to +160°C
- Thermal Resistance Case to Heatsink: 0.2°C/W
- Dimensions: Diameter approximately 24.9 mm, height approximately 28.8 mm, with heat sink metallic surface
Buy the Buy Multicomp Three Phase Bridge Rectifier Part Number SBR3508 Online
Purchase the Multicomp three-phase bridge rectifier SBR3508 online for reliable voltage rectification in industrial and power conversion systems. Featuring silicon passivation, diffused junctions, low forward voltage drop, and high surge current capability up to 475A, this rectifier ensures durability and efficiency under demanding conditions. Its epoxy case with a heat sink guarantees optimal heat dissipation, while plated leads support easy soldering. Suitable for resistive and inductive loads, operating from -55°C to +160°C, it’s perfect for high-power applications requiring steady, reliable performance.
Get Multicomp SBR3508 today—robust for high current and voltage applications with excellent surge current capacity.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SBR3508?
You can click on the BUY or RFQ button to purchase SBR3508 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SBR3508?
You can download the SBR3508 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SBR3508?
MULTICOMP PRO
