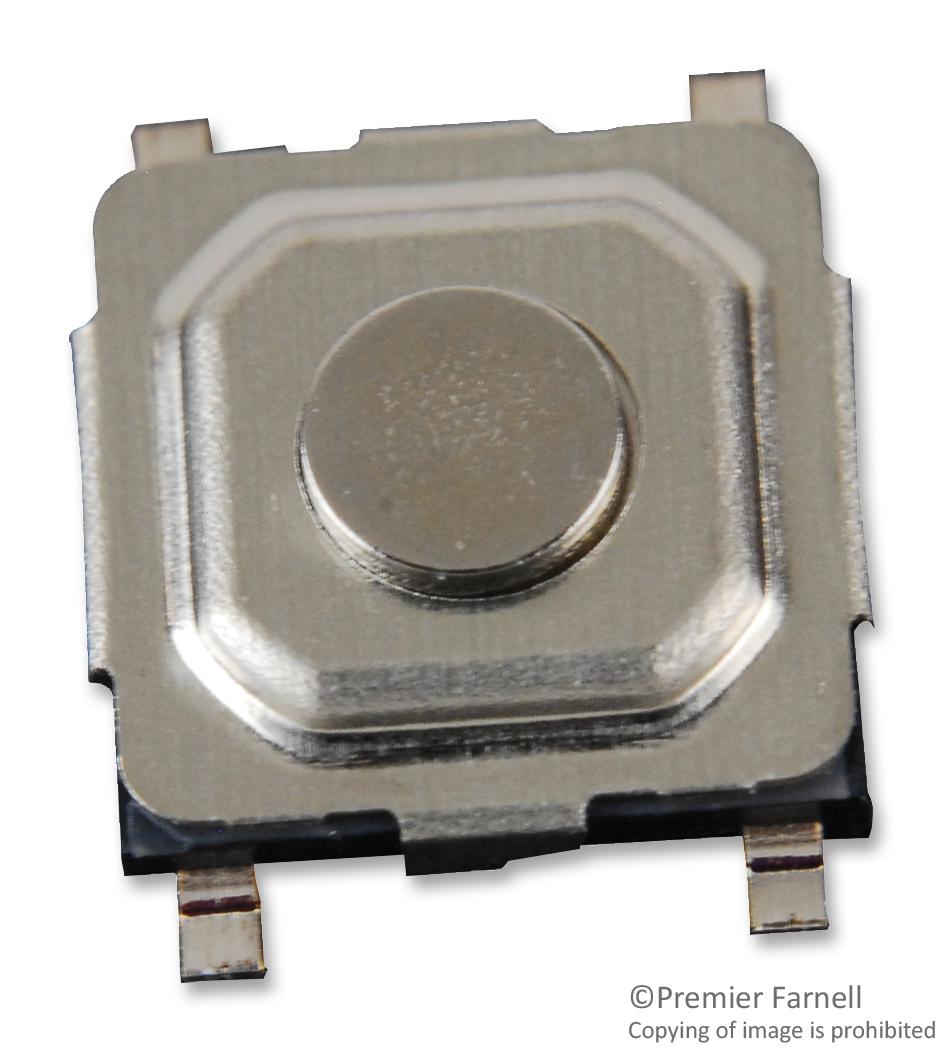

MULTICOMP PRO TM533IQTR High-Density Tactile Switch
The TM-533I-Q-T/R from Multicomp Pro is a compact surface mount tactile switch designed for high-density applications. Featuring SPST-NO contacts, it delivers a reliable 50mA at 12VDC and offers a sharp click feel with positive feedback, ideal for industrial, automation, and control systems. Operating from -25°C to +70°C, it requires 160gf force. This high-reliability, ultraminiature switch with special mold-in contact treatment ensures durability and minimal flux build-up during soldering, making it perfect for precise electronic projects. It combines small size, durability, and high performance for demanding environments.
MULTICOMP PRO TM533IQTR High-Density Tactile Switch Specifications:
- Operation Force: 160 +50 gf
- Stop Strength: static load of 3 kgf for 15 seconds
- Stroke: 20.25 (+0.2mm / -0.1mm)
- Operating Temperature Range: -25°C to +70°C
- Storage Temperature Range: -30°C to +80°C
- Vibration Resistance: MIL-STD-202F Method 201 A
- Shock Resistance: MIL-STD-202F Method 213B Condition A
- Electrical Life: 300,000 cycles minimum
- Contact Resistance: > 100mΩ
- Insulation Resistance: 100mΩ minimum at 500V DC
- Dielectric Strength: 250V AC/1 min
- Contact Arrangement: 1 Pole 1 Throw
- Material: Stainless steel cover, phosphor bronze contact disc with silver cladding, brass terminal with silver cladding, high-temperature thermoplastic base
- Color: Black
- Stem Material: Brass
- Soldering Process: Wave, hand, vapour phase, or IR-reflow, max 500°F (260°C) for 5 sec for wave soldering
- Dimensional Tolerance: 0.2mm (+0.008 inches)
Buy the Multicomp Series High-Density Tactile Switch: TM533IQTR
Experience reliable performance with the high-density surface mount tactile switch designed for demanding electronic applications. Featuring SPST-NO contacts rated at 50mA at 12VDC, it delivers a sharp click with positive tactile feedback. Operating from -25°C to +70°C, this ultraminiature switch is ideal for industrial, automation, and control systems requiring high durability. Its special mold-in contact treatment prevents flux build-up during soldering, ensuring longevity and consistency. Perfect for high-density mounting, it combines compact size with robust construction for demanding projects. Buy online today for dependable, high-quality switch performance in your device assembly.
Order your Multicomp Series high-density tactile switch TM533IQTR today and ensure reliable, precise operation in your electronic projects.
