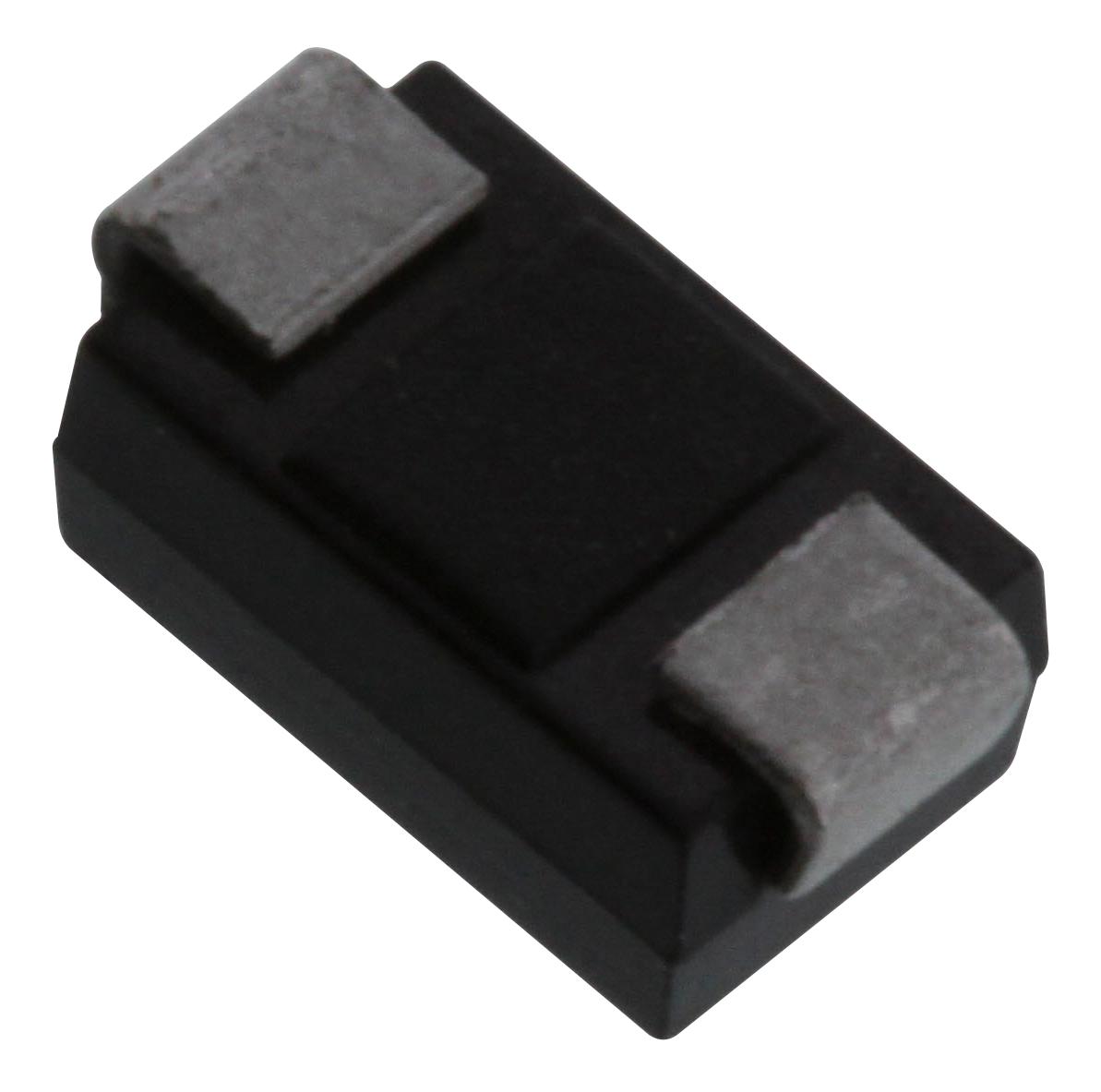

MULTICOMP PRO SMAJ20A Transient Voltage Suppressor
The SMAJ20A transient voltage suppressor is a surface mount device designed for protecting circuits from voltage spikes. It features a peak power dissipation of 400 watts, an operating temperature range from -55°C to +150°C, and a maximum surge current of 40 amps. The device comes in a molded plastic case with UL 94V-0 recognition, ensuring safety and reliability. It offers fast response times under 1 nanosecond for unidirectional units, with voltage ratings from 20V to 24.5V, making it suitable for applications requiring robust transient voltage suppression in surface-mounted configurations.
MULTICOMP PRO SMAJ20A Transient Voltage Suppressor Specifications:
- Case Material: Molded Plastic with UL 94V-0 recognition
- Maximum Power Dissipation: 400 Watts
- Peak Surge Current: 40 Amps
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +175°C
- Reverse Voltage Range: 5 to 170 Volts
- Peak Power Dissipation at 25°C: 400 Watts
- Response Time: Less than 1.0 nanosecond for unidirectional, less than 5 nanoseconds for bidirectional
- Dimensions: Inches (Millimetres): Length approximately 0.181 (4.6), Width 0.094 (2.4), Height 0.049 (1.25)
- Polarity: Cathode band denotes unidirectional, no band for bidirectional
Buy the Buy Multicomp Surface Mount Transient Voltage Suppressor Part Number SMAJ20A Online
Enhance your circuit protection with the versatile SMAJ20A surface mount transient voltage suppressor from Multicomp. With a peak power dissipation of 400W and a maximum surge current of 40A, this device provides fast response times of under 1 nanosecond, safeguarding sensitive electronics from voltage spikes efficiently. Its UL 94V-0 rated plastic case guarantees safety and durability, suitable for surface-mounted applications and operating reliably from -55°C to +150°C. Trust this robust component for reliable, high-performance transient voltage suppression in your electronic designs.
Order your Multicomp Series SMAJ20A transient voltage suppressor today and ensure rapid circuit protection with reliable surge suppression capabilities.
