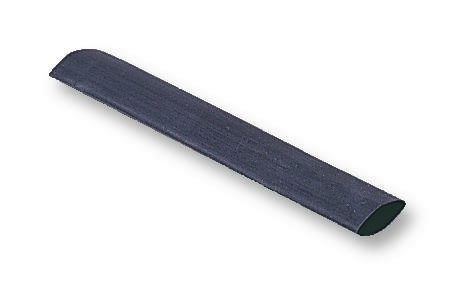

MULTICOMP-PRO SPTW12 Heat Shrink Tubing
Premium heat shrink polyolefin tubing with ultra thin walls designed for high-density wiring and space-constrained applications. It features a shrink ratio of 2:1, operating temperature of -55°C to 135°C, and a shrinking temperature of 100°C. Made from durable polyolefin, it offers excellent tensile strength, elongation, and electrical insulation. The tubing passes heat shock, heat aging, and flammability tests, ensuring reliability in demanding environments. Suitable for protecting and insulating wires in electronics, automotive, and industrial wiring projects, providing flexibility, and a standard black color for professional finishes.
MULTICOMP-PRO SPTW12 Heat Shrink Tubing Specifications:
- Shrink Ratio: 2:1
- Operating Temperature: -55°C to 135°C
- Shrink Temperature: 100°C
- Material: Polyolefin
- Standard Color: Black
- Tensile Strength: 10 MPa minimum
- Ultimate Elongation: 250% minimum
- Heat Shock Resistance: No dripping, cracking at 250°C
- Heat Ageing: 168 hours at 175°C with 150% elongation
- Low Temperature Flexibility: No cracking at -55°C
- Flammability: Passes UL 94V-0
- Electric Strength: 20 kV/mm minimum
- Corrosion Resistance: No corrosion on copper mirror
- Nominal Diameter Min. Expansion: 0.6 mm for 1.2 mm size, up to 3.2 mm for 6.4 mm size
- Max. Recovered Diameter: 1.2 mm for 1.2 mm size, up to 6.4 mm for 6.4 mm size
- Wall Thickness: 0.18 mm for 1.2 mm size, up to 0.25 mm for 6.4 mm size
- Reel Length: 1.2 meters for all sizes
Buy the Buy Multicomp Polyolefin Heat Shrink Tubing Part Number SPTW12 Online
Secure your wiring and protect your electrical connections with our high-quality ultra thin wall polyolefin heat shrink tubing. Designed for high-density wiring and tight spaces, this tubing offers a 2:1 shrink ratio, excellent mechanical strength, and electrical insulation. It withstands heat shocks, aging, and flammability tests, ensuring durability and safety in demanding environments. Available in black, the tubing is easy to apply and ideal for electronics, automotive, and industrial use, providing professional insulation and protection in every installation.
Buy Multicomp Polyolefin Heat Shrink Tubing SPTW12 now and experience reliable insulation in space-constrained wiring projects.
