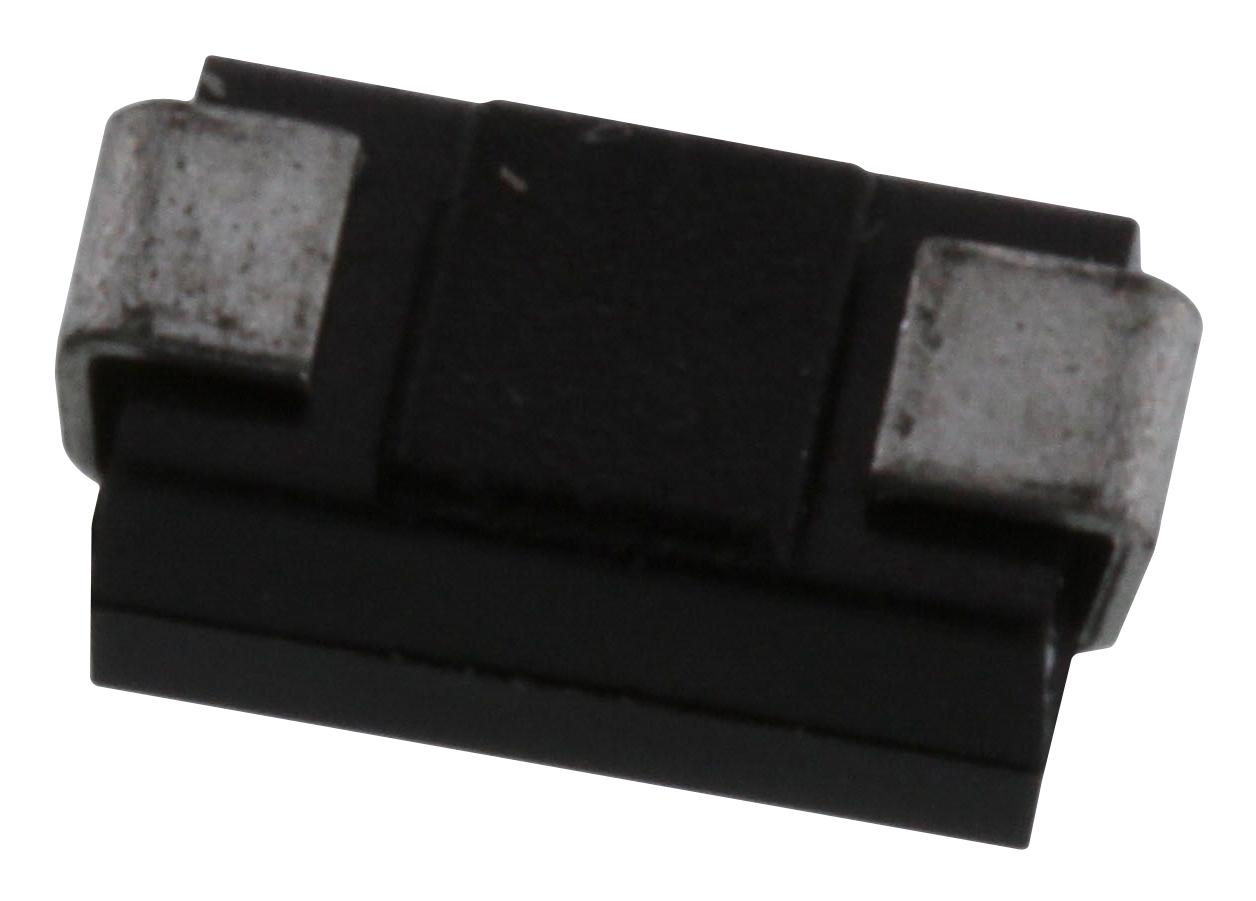

MULTICOMP PRO SS26A Schottky Barrier Rectifier
This surface mount Schottky barrier rectifier offers low forward voltage drop and high current capability, ideal for low voltage, high-frequency inverters, freewheeling, and polarity protection. Constructed with a metal-semiconductor junction and epitaxial technology, it features a plastic case rated UL 94V-0 flammability. Suitable for resistive or inductive loads, it handles reverse voltages from 30V to 60V and forward currents up to 2A. With a wide operating temperature range of -55°C to +150°C, its reliable electrical and thermal characteristics make it suitable for various power rectification applications.
MULTICOMP PRO SS26A Schottky Barrier Rectifier Specifications:
- Case: Molded plastic, UL 94V-0
- Polarity: Color band denotes cathode
- Reverse Voltage: 30 to 60 Volts
- Forward Current: 2 Amperes
- Operating Temperature Range: -55°C to +150°C
- Maximum Recurrent Peak Reverse Voltage: 30V or 40V
- Max. RMS Voltage and Max. DC Blocking Voltage: values vary with model
- Peak Forward Surge Current: 8.3ms single half sine-wave, resistive or inductive load
- Maximum Forward Voltage at 2A DC: typical value not specified
- Thermal Resistance Junction to Lead: 15 °C/W
- Junction Capacitance: 200 pF at 1MHz, 4V DC reverse voltage
- Material: Plastic, metal-semiconductor junction
- Dimensions: Compact surface mount package
Buy the Multicomp Series Schottky Barrier Rectifier: SS26A
Purchase the Schottky Barrier Rectifier online today for your power electronics projects. Engineered for high efficiency with low forward voltage and robust current handling, this surface mount component is ideal for low-voltage, high-frequency inverter circuits, freewheeling, and polarity protection applications. With a UL flammability rating of 94V-0 and a wide operating temperature range from -55°C to +150°C, it provides reliable performance in demanding environments. Order now and benefit from fast, convenient online shopping for high-quality rectifiers designed to meet your technical needs.
Order your Multicomp Series SS26A Schottky Barrier Rectifier today and ensure reliable power rectification with low forward voltage and high current capacity.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SS26A?
You can click on the BUY or RFQ button to purchase SS26A from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SS26A?
You can download the SS26A datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SS26A?
MULTICOMP PRO
