MULTICOMP PRO STANDARDBREADBOARDKIT Breadboard Kit

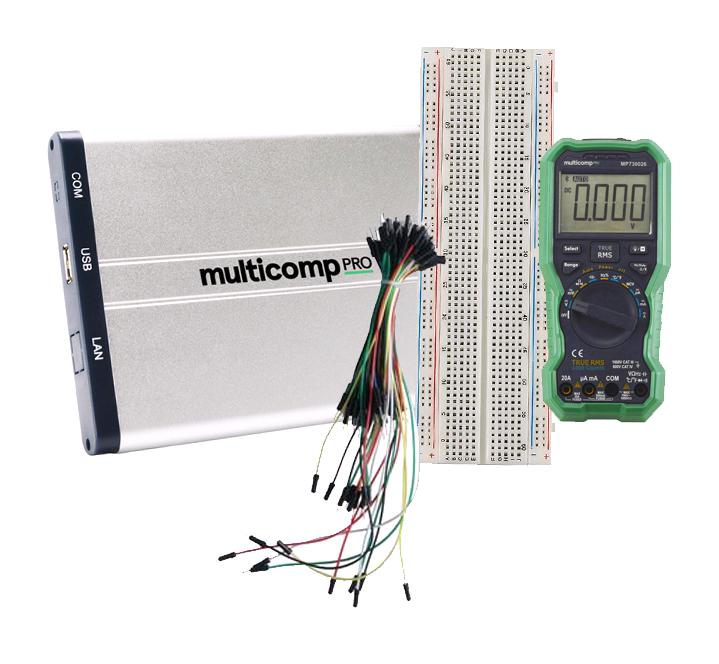

This standard breadboard kit includes a breadboard, jumper wires, a PC-based oscilloscope, and a digital multimeter with Bluetooth capability. The Bluetooth multimeter supports data logging and temperature measurement, features Bluetooth 4.0 wireless transmission for stable and low-power connectivity, and functions as a thermometer. The oscilloscope offers a 25 MHz bandwidth, dual channels, and an ultra-thin, portable design. The kit also contains 65 pieces of 22 AWG jumper wires and a solderless breadboard measuring 7 mm to 8 mm in length with 2.54 mm pitch. Suitable for testing and measurement, laboratory work, hobby projects, education, and electronics design. The package includes the breadboard, jumper wires, a PC-based oscilloscope (USB cable, software CD-ROM, manual, probes, and probe adjustment tool), and a digital multimeter (multimeter leads, K-type thermocouple, manual, screwdriver, alligator clips).
MULTICOMP PRO STANDARDBREADBOARDKIT Breadboard Kit Specifications:
- Oscilloscope bandwidth: 25MHz
- Sample rate: 100MSa/s
- Channels: 2 Analogue, 1 External Trigger
- Input Impedance: 1MΩ+2%, in parallel with 5pF
- Max Input Voltage: 40V (PK - PK) DC+AC
- Record Length: 5K
- Horizontal Scale: 5ns/div ~ 100s/div
- Rise Time: <14ns
- Input Coupling: DC, AC, GND
- Dimensions (W x H x D): 170mm x 120mm x 18mm
- Weight: 0.26 kg
- Jumper wires: 65 pcs, 22 AWG, various lengths
- Breadboard pitch: 2.54mm
- Terminal Strips: 630 Tie-point
- Rated Voltage / Current: 300V/3-5A
- Insulation Resistance: 500MOQ
- Withstanding Voltage: 1,000V AC/1 min
Buy the Buy Multicomp Standard Breadboard Kit Part Number STANDARDBREADBOARDKIT Online
Enhance your electronics projects with this versatile breadboard kit featuring a breadboard, jumper wires, digital oscilloscope, and Bluetooth multimeter. Its compact oscilloscope offers 25 MHz bandwidth and dual channels for detailed signal analysis. The Bluetooth multimeter supports data logging, temperature measurement, and non-contact voltage detection, all with Bluetooth 4.0 technology ensuring stable, low-power wireless communication. The kit includes essential accessories like jumper wires, a solderless breadboard, and measuring tools, making it suitable for laboratory tests, hobby work, education, and electronics design. Purchase online today for reliable, all-in-one testing capabilities.
Get Multicomp Standard Breadboard Kit today—ideal for electronics testing, prototyping, and educational projects with comprehensive accessories.
Frequently Asked Questions
Where can I buy MULTICOMP PRO STANDARDBREADBOARDKIT?
You can click on the BUY or RFQ button to purchase STANDARDBREADBOARDKIT from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part STANDARDBREADBOARDKIT?
You can download the STANDARDBREADBOARDKIT datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of STANDARDBREADBOARDKIT?
MULTICOMP PRO
