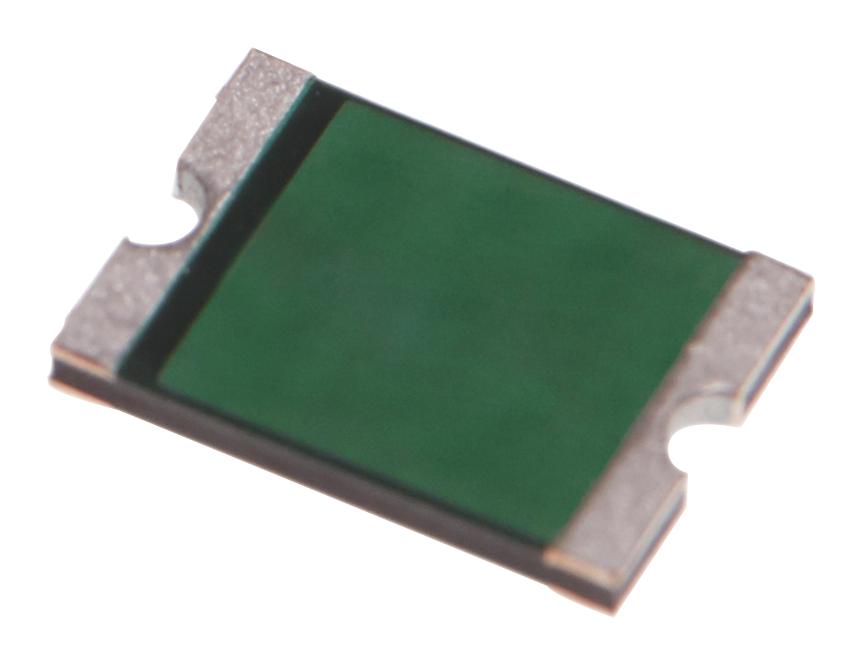

MULTICOMP PRO MC011392 Surface Mount PTC Fuse
The PTC resettable fuse is a surface-mount solid-state device designed for high-density circuit boards, offering fast trip times and a broad operation current range of 0.3A to 7A. It withstands maximum voltages from 6V to 60V DC, operating reliably between -40°C and +85°C. Made with RoHS-compliant, halogen-free materials, it provides robust overcurrent protection, with features like quick trip, low resistance, and a pure tin termination pad suitable for reflow soldering. Ideal for applications requiring reliable, reusable overcurrent protection in compact electronic assemblies.
MULTICOMP PRO MC011392 Surface Mount PTC Fuse Specifications:
- Operation Current: 0.3A to 7A
- Maximum Voltage: 6V to 60V DC
- Temperature Range: -40°C to +85°C
- Hold Current: Max 5A
- Trip Current: 1.5A to 5.5A depending on model
- Resistances: Ri (min) 0.18Ω to 0.075Ω at 23°C
- Power Dissipation: Up to 0.18W
- Terminals: Pure Tin
- Dimensions: Length 6.73mm to 7.98mm, Width 4.8mm, Height varies by model
- Material: Halogen free, RoHS compliant
- Soldering: Suitable for reflow, meets EIA and ANSI standards
Buy the Buy Multicomp PTC Resettable Fuse Part Number MC011392 Online
Secure your circuits with the reliable surface-mount PTC resettable fuse, MC011392. Designed for high-density applications, it features fast trip times and operates within 6V to 24V DC, depending on the model. Its RoHS compliance and halogen-free construction ensure environmental safety, while the pure tin termination pads facilitate easy reflow soldering for robust assembly. Suitable for various electronic devices, this fuse provides safe, reusable overcurrent protection, minimizing downtime and preventing circuit damage in compact, demanding applications.
Buy Multicomp MC011392 now and ensure reliable overcurrent protection in your electronic designs with fast trip times and durable RoHS-compliant features.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC011392?
You can click on the BUY or RFQ button to purchase MC011392 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC011392?
You can download the MC011392 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC011392?
MULTICOMP PRO
