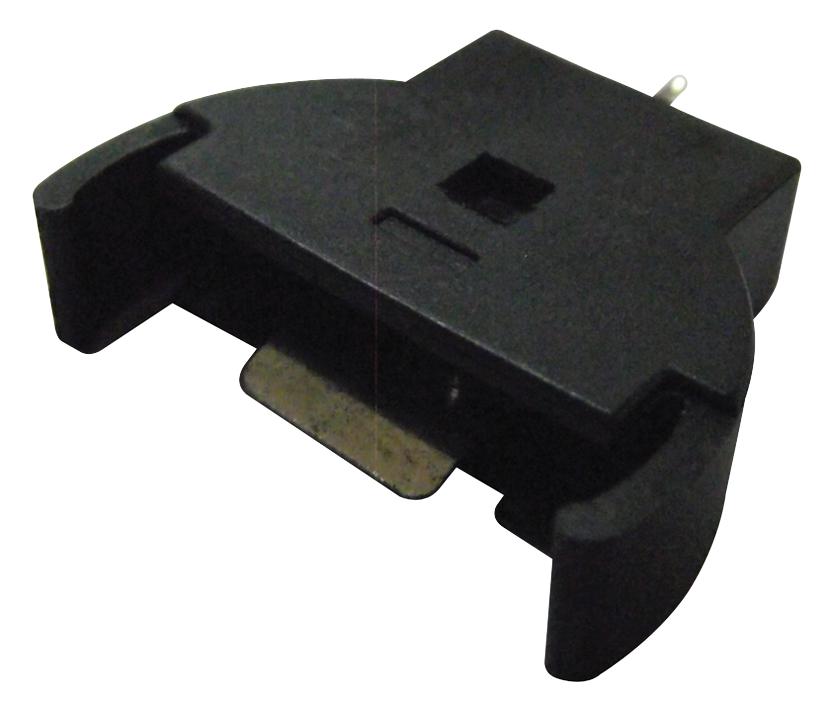

MULTICOMP CH742032LF Battery Holder
The battery holder is designed for DIP mounting, specifically supporting 20 mm batteries. Made from flame-retardant nylon 46 with 30% glass fiber, it ensures durability and electrical insulation. The contacts are crafted from phosphor bronze, 0.6 mm thick, with tin plating over nickel to ensure reliable conductivity. Capable of handling 3A AC/DC at 500 V, it features low contact resistance of 12mΩ and insulation resistance of 500 MΩ. Operating within a temperature range of -40°C to +105°C, it withstands humidity up to 90-95% RH for 96 hours, suitable for various electronic applications.
MULTICOMP CH742032LF Battery Holder Specifications:
- Material: Nylon 46 + 30% GF, flame-retardant
- Housing Color: Black
- Contact Material: Phosphor bronze, 0.6 mm thick, tin plated over nickel
- Current Rating: 3A AC/DC
- Voltage Rating: 500 V AC/DC
- Contact Resistance: 12 mΩ
- Insulation Resistance: 500 MΩ
- Operating Temperature Range: -40°C to +105°C
- Humidity Resistance: 96 hours at 40°C, 90-95% RH
- Dimensions: 20 mm battery size, tolerance ±0.3 mm
- Electrode and layout designed for PCB mounting
- Approval: RoHS compliant
Buy the Buy Element14 CH74-2032LF Battery Holder Part Number CH74-2032LF Online
Purchase the Element14 CH74-2032LF battery holder online today and enjoy a durable, RoHS-compliant DIP mounting solution with high current capacity and excellent humidity resistance. Designed for 20 mm batteries, it features a nylon housing reinforced with 30% glass fiber for durability, phosphor bronze contacts with tin plating for reliable conductivity, and operates efficiently within a temperature range of -40°C to +105°C. Its high insulation resistance and low contact resistance ensure dependable performance in various electronic and industrial applications.
Order your Element14 Series CH74-2032LF battery holder today and ensure reliable power connections for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP CH742032LF?
You can click on the BUY or RFQ button to purchase CH742032LF from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part CH742032LF?
You can download the CH742032LF datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of CH742032LF?
MULTICOMP
